90ltrs Per Min (230v)

Price

£294.20

ex. VAT

Fluids

  • D
  • HVO/GTL
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
  • B2
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

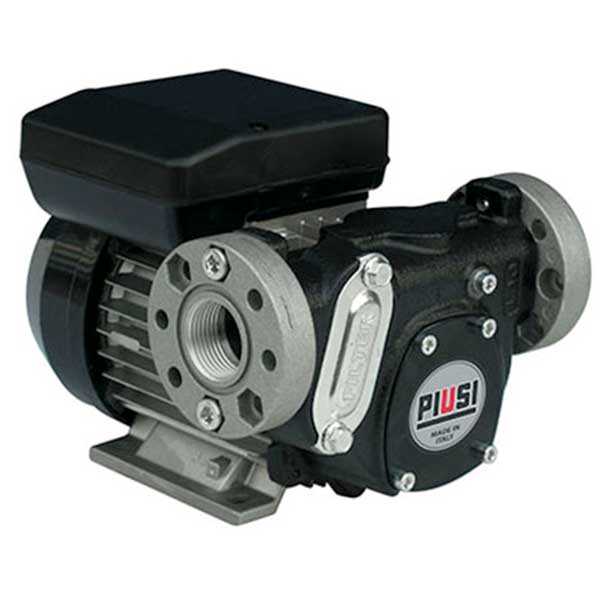

This electric diesel transfer pump is the Panther 90 - a reliable, quality and versatile fuel dispensing pump made by Italian manufacturer Piusi. The Panther 90 is a compact and easy to install diesel refuelling pump, and is the new higher flow rate version in the market known Piusi Panther range. With a maximum flow rate of 90lpm, this electric fuel transfer pump is designed for faster filling of larger vehicles and is ideal for static fuel storage tank systems and refuelling applications.

The Panther 90 is constructed from cast iron and comes supplied with a pump head and motor, an incorporated bypass vale and 500 micron filter. The whole range of Panther diesel transfer pumps are self-priming and have an incorporated mechanical seal, to ensure the pump maintains its reliability even in low temperatures. Further features of this Piusi diesel pump also include its thermal motor overload protection, IP55 protection grade and on/off switch to guarantee easy operation.

Please note: The Panther 90 has a 30 minute on, 30 minute off duty cycle

Features of the Piusi Panther 90 Electric Diesel Transfer Pump:

  • Self-priming rotary vane diesel fuel transfer pump
  • Cast iron pump body with anti-corrosion paint
  • Sintered steel rotor & acetal resin vanes
  • Integrated bypass valve and 500 micron filter
  • Flow Rate 90ltr per min
  • 1” F BSP Flanged inlet/outlet ports
  • On/off switch
  • Thermal motor overload protection
  • Protection grade: IP55
  • 230v/50Hz
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
733020Piusi Panther 90 Diesel Fuel Transfer Pump 230v/50Hz

Max Flow (lpm) - 90

230v

50Hz

Ports - 1" F BSP Flanged

30 min duty cycle

£294.20 ex. VAT

Product Accessories

CodeAccessoryPrice
R18127000

Piusi Panther 90 Vanes and Springs Kit

£68.05 ex. VAT
FRM003

Small Pump Carry Frame Kit

Width - 250mm

Length - 310mm

Height - 270mm

c/w Nuts & Bolts, Rubber Mounts & Cable Tie

£176.80 ex. VAT
FRM005

Piusi Pump Carry Plate Kit

Carry plate with handle
Nuts and bolts for pump connection
Reusable heavy duty cable tie for hose

£99.80 ex. VAT
CTS1072

Piusi Panther 90 Pump Service Kit

Buy at the same time as the pump to save time and money in the future!

Kit contains:

Chamber Cover Gasket Kit

5 x Vanes

5 x Springs

£69.05 ex. VAT

Scroll left and right to view table

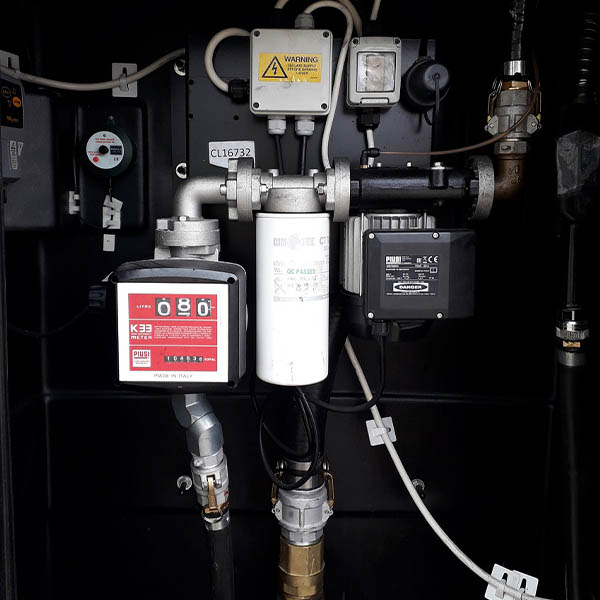

Where is this fuel dispensing pump typically used?

This fuel dispensing pump by the Italian manufactured Piusi, is preferable choice by most fuel tank manufacturers due to its reliability. This diesel transfer pump is usually installed on static fuel storage tanks during tank manufacturing or retrofitted on existing tanks. Typically, the fuel transfer pump is used in non-resale refuelling environment as it is not weights and measures approved. The fuel dispensing pump is an ideal solution for the refuelling of fleets of vehicles, agricultural machinery as well as plant equipment.

Can I use the Panther pump for kerosene?

We frequently get asked this question and the answer is no! Kerosene has a lower flash point than diesel, which means there is a greater chance of a spark resulting in ignition during the pumping process. Like with petrol, pumps for kerosene therefore have to be ATEX approved, meaning that they are certified as being safe for use in potentially flammable environments.

View our range of ATEX pumps here.

I need a nozzle and flow meter, which is suitable for use with this diesel fuel transfer pump?

When picking a suitable nozzle and flow meter to go with your pump, you need to make sure they are compatible with the fluid you’re pumping and that it can cope with the flow rate your pump will be working at.

The Panther 90 pump is a diesel transfer pump with a flow rate of 90lpm.

Suitable NozzlesSuitable Flow Meters
Piusi Self 2000K33
Piusi Self 3000K44
Piusi Auto 120K24
Husky 1GSK600/3
ZVA 25K600 B/3

Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.
