72ltrs Per Min (230v / 400v)

From

£280.75

ex. VAT

Fluids

  • D
  • HVO/GTL
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
  • B2
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

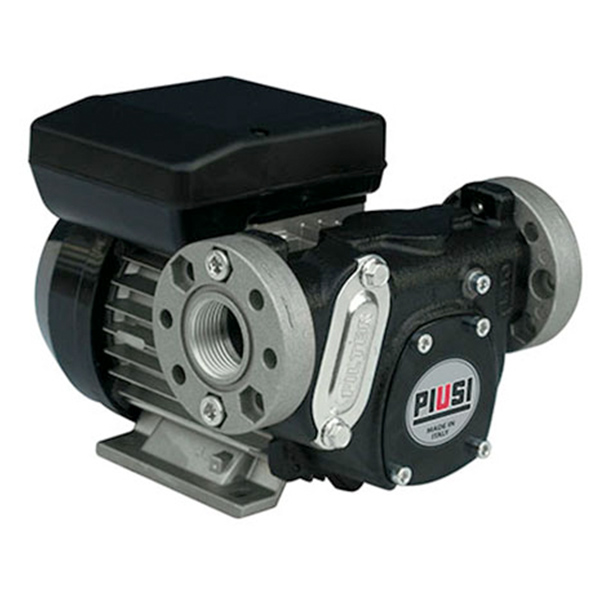

Made by Italian manufacturer Piusi, the Panther 72 electric diesel transfer pump is reliable, quality and versatile in its application. The Panther 72 is the higher flow, flanged equivalent of the Piusi Panther 56 diesel refuelling pump, and thanks to its good flow rate is popular for the refuelling of vehicle fleets and machinery. Being mains powered, the Panther range are the perfect fuel dispensing pumps in many industries for use on stationary fuel transfer pump systems and bunded diesel storage tanks. For that reason the Piusi Panther pumps are installed by the majority of fuel tank manufacturers.

This cast iron constructed electric fuel transfer pump is supplied with both pump head and motor, incorporated bypass valve and 100 micron easily accessed filter. These self-priming, rotary vane diesel transfer pumps have an incoporated mechanical seal, which ensures that even in low temperatures the pump maintains its reliability. Other features of the Panther 72 Piusi fuel pump include its thermal motor overload protection on single-phase pumps, IP55 protection grade and its easy operation on/off switch.

Features of the Piusi Panther 72 Electric Diesel Transfer Pump:

  • Self-priming diesel fuel transfer pump
  • Sintered steel rotor & acetal resin vanes
  • Cast iron pump body with anti-corrosion paint
  • Incorporated bypass valve & Viton lip seal
  • Flow rate: 72ltr Per Min
  • On/off switch
  • Continuous running
  • Thermal motor overload protection on single-phase pumps
  • 1” F BSP inlet/outlet ports
  • Protection grade: IP55
  • Available in 230v/400v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
732000Piusi Panther 72 Diesel Fuel Transfer Pump 230v/50Hz

Max Flow (lpm) - 72

230v

50Hz

Ports - 1" F BSP Flanged

£280.75 ex. VAT
735000Piusi Panther 72 Diesel Fuel Transfer Pump 400v/50Hz

Max Flow (lpm) - 72

400v

50Hz

Ports - 1" F BSP Flanged

£280.85 ex. VAT

Product Accessories

CodeAccessoryPrice
FRM003

Small Pump Carry Frame Kit

Width - 250mm

Length - 310mm

Height - 270mm

c/w Nuts & Bolts, Rubber Mounts & Cable Tie

£176.80 ex. VAT
FRM005

Piusi Pump Carry Plate Kit

Carry plate with handle
Nuts and bolts for pump connection
Reusable heavy duty cable tie for hose

£99.80 ex. VAT
CTS1070

Piusi Panther 56/72 Pump Service Kit

Buy at the same time as the pump to save time and money in the future!

Kit contains:

Chamber Cover Gasket Kit

5 x Vanes

5 x Springs

£27.05 ex. VAT
R11276000

Piusi Vanes and Springs Kit

Watch the video guide for how to change the vanes in the video section above

£24.80 ex. VAT

Scroll left and right to view table

Where is this fuel dispensing pump typically used?

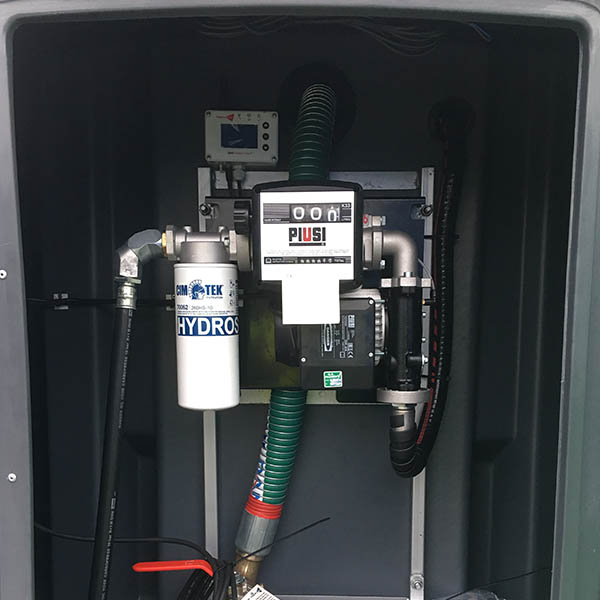

This fuel dispensing pump by the Italian manufactured Piusi, is preferable choice by most fuel tank manufacturers due to its reliability. This diesel transfer pump is usually installed on static fuel storage tanks during tank manufacturing or retrofitted on existing tanks. Typically, the fuel transfer pump is used in non-resale refuelling environment as it is not weights and measures approved. The fuel dispensing pump is an ideal solution for the refuelling of fleets of vehicles, agricultural machinery as well as plant equipment.

Can I use the Panther pump for kerosene?

We frequently get asked this question and the answer is no! Kerosene has a lower flash point than diesel, which means there is a greater chance of a spark resulting in ignition during the pumping process. Like with petrol, pumps for kerosene therefore have to be ATEX approved, meaning that they are certified as being safe for use in potentially flammable environments.

View our range of ATEX pumps here.

I need a nozzle and flow meter, which is suitable for use with this diesel fuel transfer pump?

When picking a suitable nozzle and flow meter to go with your pump, you need to make sure they are compatible with the fluid you’re pumping and that it can cope with the flow rate your pump will be working at.

The Panther 72 pump is a diesel transfer pump with a flow rate of 72lpm.

Suitable NozzlesSuitable Flow Meters
Piusi Self 2000K33
Piusi Self 3000K44
Piusi Auto 80K24
Professional AutoK600/3
ZVA SlimlineK600 B/3
Husky 1GS

Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.

Apply for a credit account today to receive our exclusive benefit for trade customers only.
