35ltrs - 70ltrs Per Min (230v / 24v)

From

£822.30

ex. VAT

Fluids

  • D
  • HVO/GTL
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

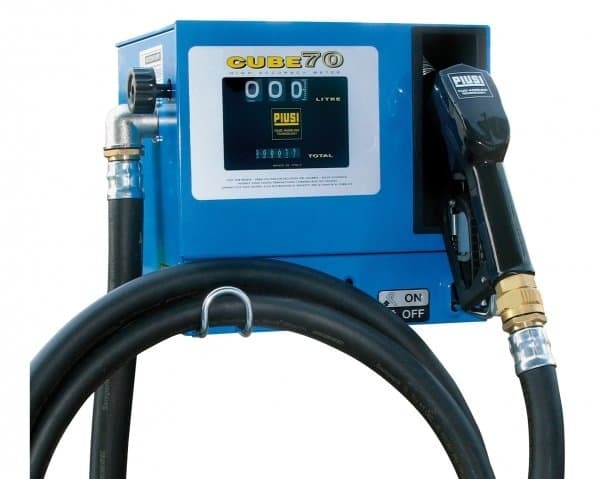

The Piusi Cube 70 electric diesel transfer pump is a diesel refuelling pump designed for the dispensing of fuel from a storage tank to a vehicle in private applications. Thanks to it being in a compact enclosure with the nozzle, hose and meter, the Piusi electric fuel transfer pump is the full package required for the quick and clean refuelling of machinery or fleets. The mechanical flow meter integrated in this Piusi fuel pump unit has sturdy mechanical totaliser, which is renowned for its reliability and accuracy. Also incorporated in this fuel dispenser is a nozzle holster with a manual pump start lever and automatic pump stop functionality when the nozzle is put back.

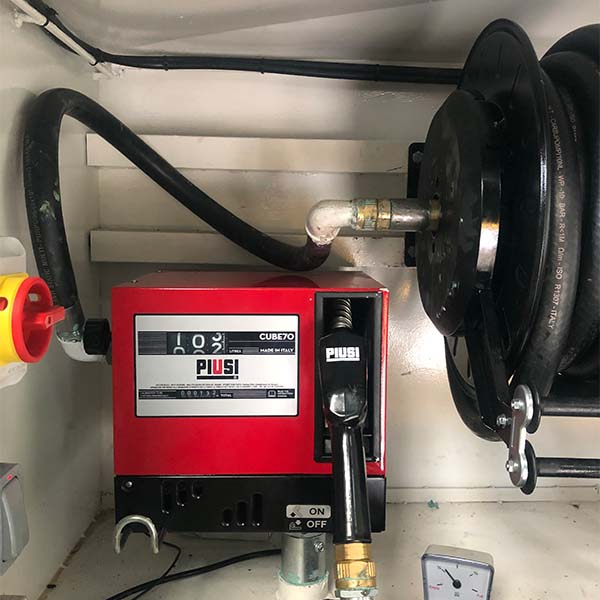

Their versatile nature means that Piusi Cube 70 diesel transfer pumps can be mounted onto a bunded fuel tank or wall using the optional wall support kit, or can be freestanding with use of the optional pedestal. There is also the option to mount this diesel fuel transfer pump onto a drum with the Piusi quick coupling connection.

Features of the Piusi Cube 70 Electric Diesel Transfer Pump:

  • Fully enclosed fuel dispenser
  • Panther 72 diesel transfer pump
  • Mechanical seal & incorporated bypass valve
  • Flow Rate 35-70ltrs Per Min (Depending on Model)
  • 3 Digit Flow Meter
  • Automatic Nozzle & 4m x 1" Delivery Hose
  • Nozzle holder with pump start/stop lever
  • Protection grade: IP55 (Internal Motor)
  • Available in 230v / 12v / 24v
  • Various mounting options available
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
59100APiusi Cube 70 Diesel Pump 230v 50Hz

Max flow (lpm) - 70

230v

Panther 72 Fuel Transfer Pump

Flow meter - 3 Digit

Nozzle type - Auto 70

Ports - 1" F BSP

£822.30 ex. VAT
59111APiusi Cube 70 Diesel Pump 230v 50Hz + Pulse Out

Max flow (lpm) - 70

230v

Panther 72 Fuel Transfer Pump

Flow meter - 4 Digit

Nozzle type - Auto 70

Ports - 1" F BSP

£1,243.45 ex. VAT
577000Piusi Cube DC Diesel Pump 24v / 12v

Max flow (lpm) - 70 (24v) / 35 (12v)

24v / 12v

Panther DC Fuel Transfer Pump

Flow meter - 3 Digit

Nozzle type - Auto 70

Ports - 1" F BSP

£831.80 ex. VAT

Product Accessories

CodeAccessoryPrice
F12708

Cube Pedestal

£304.65 ex. VAT
F12737

Cube Wall Mounting Kit

£52.90 ex. VAT
CBFLT10

Cube 10 Micron Filter Kit

£82.25 ex. VAT
CBFLT30

Cube 30 Micron Filter Kit

£82.25 ex. VAT
8930

Piusi Quick Coupling 1”

Drum connection – 2” M BSP

Inlet inner thread – 1” F BSP

Outlet – 1” M BSP

£42.45 ex. VAT

Scroll left and right to view table

My Cube 70 unit is really old. I need to replace the pump inside, is it the normal Panther 72 I need?

No. The orientation of the Panther pump is adapted to fit inside a Cube unit and therefore the standard Panther 72 is not compatible as a replacement. You can find the correct pump on the spare parts page of the Cube 70 diesel transfer pump here.

What applications are these fuel dispensers suitable for?

These fuel dispensers can be easily installed to a fuel storage tank during tank manufacturing, mounted on a wall next to a fuel tank, free standing on a pedestal or retrofitted to existing tanks. They are used only for private refuelling in non-resale refuelling environment as they are not weights and measures approved. These diesel refuelling pump kits are an ideal solution for the refuelling of fleets of vehicles, agricultural machinery as well as plant equipment.

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
