About the product

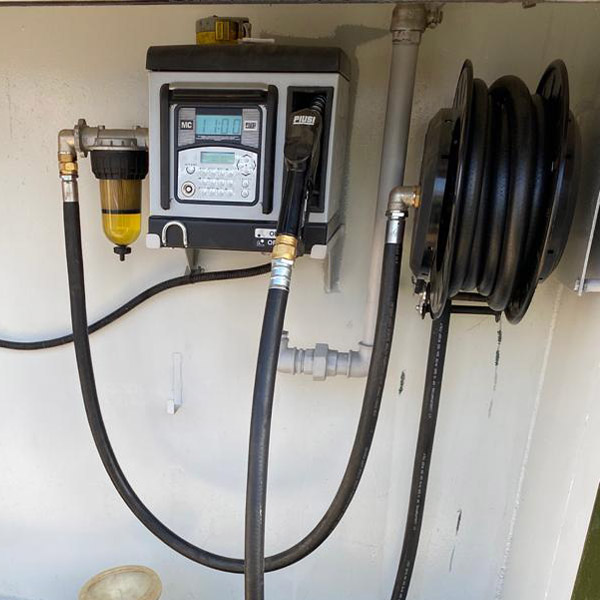

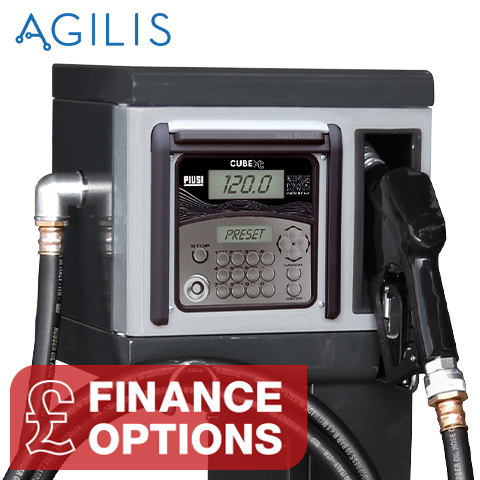

The Piusi Cube 70MC Fuel Management System is a compact, easy to install diesel dispenser for private use, which ensures fast and precise dispensing by authorised personnel. The Piusi unit, which comes standard with a nozzle holder, internal diesel transfer pump, motor and electronic meter, is capable of recording the date, time and amount of fuel dispensed for the last 255 transactions. As well as fuel monitoring, the Cube fuel pump management system also provides fuel security by only giving authorised users access to the bunded diesel tank's contents. The Cube 70 MC fuel tank monitoring systems can be fitted to a wall, directly onto the tank or on a stand-alone pedestal.

The standard version of this fleet fuel management system can monitor up to 50 users, although a version for controlling 120 users is available. Using either a pin code system or the electronic data keys available, this Piusi fuel management system is set up at the unit. The transaction data can be viewed from the fuel management system’s screen. However, there is additional Piusi Self Service Desk fuel management software that allows the data to be exported to a local PC

Please note: If you have an existing system and are looking to buy replacement keys, make sure you know whether your unit is a green or yellow key system and select from the accessories table.

Features of the Piusi Cube 70 MC Fuel Management System:

  • Controls up to 50 or 120 users (depending on model)
  • Complete fuel dispenser
  • Limits pump access to users via pin code or key (if purchased)
  • Records transaction data such as user, date, time & QTY
  • Facility to record vehicle reg number & odometer readings
  • Pump start/stop & pre-set dispense features
  • Can be connected to an Ocio gauge
  • Local memory of 255 transactions
  • K600 flow meter
  • Automatic nozzle and nozzle holster
  • 4m x 1" delivery hose
  • Optional software to download data to a Windows PC
  • Available in 12v/24v/230v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
59400BPiusi Cube 70MC Fuel Management Unit 230v 50 User

Max Flow (lpm) - 70

230v

50 Users

Panther 72 Diesel Transfer Pump

Nozzle Type - Auto 60

Flow Meter - K600

1" F BSP Flanged Inlet

£2,143.80 ex. VAT
59415APiusi Cube 70MC Fuel Management Unit 230v 120 User

Max Flow (lpm) - 70

230v

120 Users

Panther 72 Diesel Transfer Pump

Nozzle Type - Auto 60

Flow Meter - K600

1" F BSP Flanged Inlet

£2,188.30 ex. VAT
59413APiusi Cube 70MC Fuel Management Unit 12v 50 User

Max Flow (lpm) - 56

12v

50 Users

Panther 72 Diesel Transfer Pump

Nozzle Type - Auto 60

Flow Meter - K600

1" F BSP Inlet

Duty Cycle - 30min

£2,225.80 ex. VAT
59414APiusi Cube 70MC Fuel Management Unit 24v 50 User

Max Flow (lpm) - 70

24v

50 Users

Panther 72 Diesel Transfer Pump

Nozzle Type - Auto 60

Flow Meter - K600

1" F BSP Inlet

Duty Cycle - 30min

£2,309.85 ex. VAT

Product Accessories

CodeAccessoryPrice
CTS4000

Piusi Self Service Management 2018 Download Software - Key Reader c/w Yellow Keys

Software Type: Download
Data Transfer: Key Reader
User Keys: 10
Manager Keys:1

£686.30 ex. VAT
CTS4002

Piusi Self Service Management 2018 USB Software - Key Reader c/w Yellow Keys

Software Type: USB
Data Transfer: Key Reader
User Keys: 10
Manager Keys: 1

£786.20 ex. VAT
R12496

Piusi Fuel Management System Manager Key

£75.90 ex. VAT
F12708

Cube Pedestal

£304.65 ex. VAT
F12737

Cube Wall Mounting Kit

£52.90 ex. VAT
R15904000

Piusi Fuel Management System Yellow User Keys

£189.30 ex. VAT

Scroll left and right to view table

My Cube 70MC unit is really old. I need to replace the pump inside, is it the normal Panther 72 I need?

No. The orientation of the Panther pump is adapted to fit inside a Cube unit and therefore the standard Panther 72 is not compatible as a replacement. You can find the correct pump on the spare parts page of the Cube 70 MC fuel management system here.

I want to view this information at my computer rather than at the unit, is this possible?

Yes. By purchasing the Piusi Self Service Desk 2018 fuel management software, all transaction data can be exported to a computer and viewed and filtered by user, date, vehicle or dispenser for more convenient analysis. Some customers who are on a budget opt to just view the transaction data at the unit, which is why we offer the software as an optional extra rather than as standard.

You can view or select the Piusi fuel management software either in the accessories table or by clicking here.

How do I set up new users on this Piusi fuel management system?

Depending upon how you have chosen to allow user access, users are set up with either a pin code or an electronic key. How to set up a user via either of these options are covered in our video here.

What applications are these fuel dispensers suitable for?

These fuel dispensers can be easily fitted to a wall, directly onto the tank or on a stand alone pedestal. They are used only for private refuelling in non-resale refuelling environment as they are not weights and measures approved. These diesel refuelling pump kits are an ideal solution for the refuelling of fleets of vehicles, agricultural machinery as well as plant equipment.
