Piusi MC Box Fuel Management System
Retrofit (Local/Onsite Data)
Select image to zoom
From
£1,430.05
ex. VAT
Fluids
- D
- AB
- HVO/GTL
- AdBlue
- Air
- Antifreeze
- Any
- Chemical
- Diesel
- Grease
- Jet Fuel
- Kerosene
- Oil
- Petrol
- Rapsoil
- HVO/GTL
- Water
- Windscreen
The Official UK agent of Piusi pumps & fuel dispensing equipment
About the product

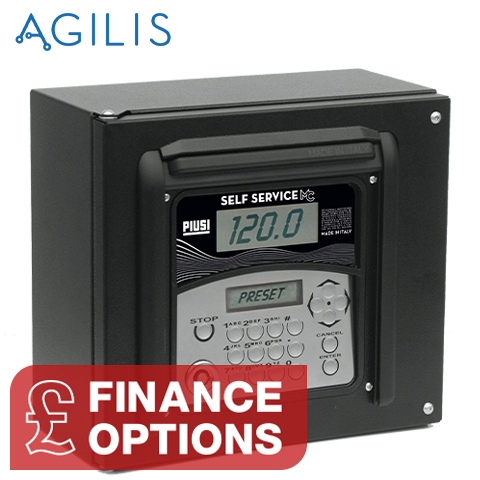

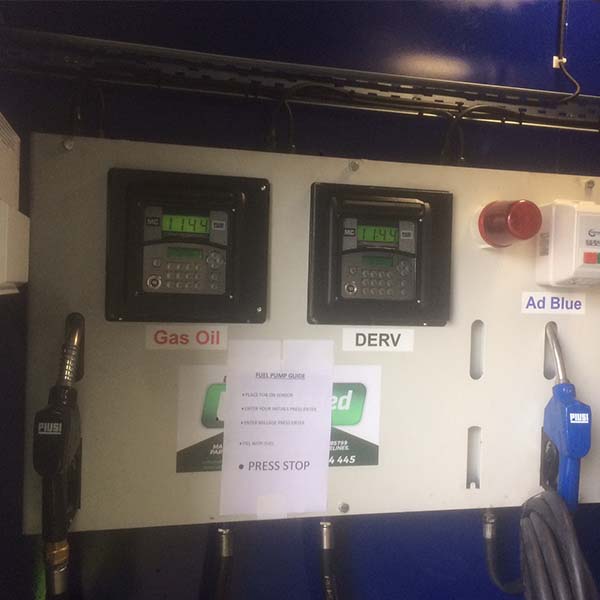

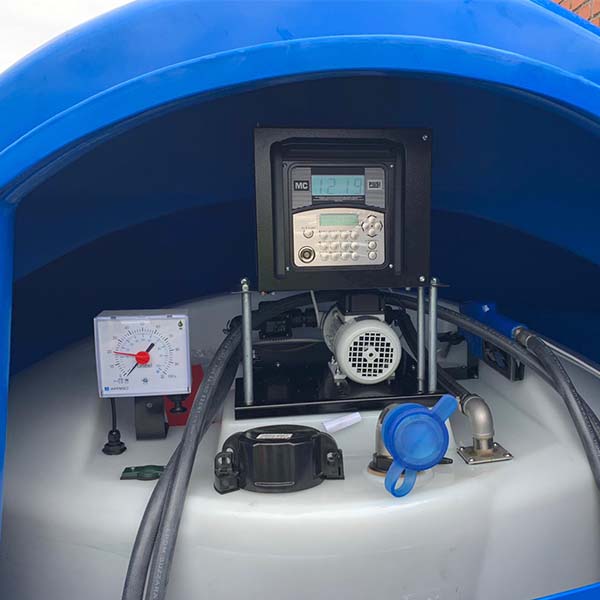

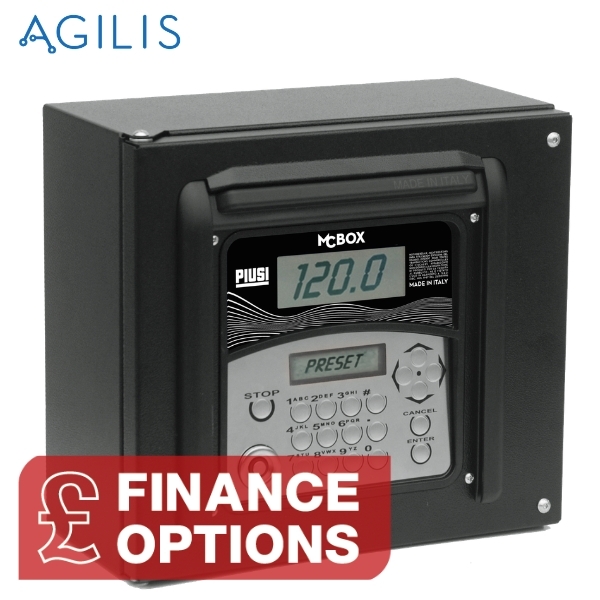

The Piusi MC Box Fuel Management System has the capability to control and manage the consumption of fuel for users in the private and commercial sector at a low cost. The MC Box is the perfect fuel monitoring solution as an ‘add on’ unit for new or existing pumps, or where it is preferable to have the pumps and the control panel installed in two different places.
This Piusi fuel tank management system consists of a dedicated multi-user panel incorporated in a weatherproof lockable casing, that is capable of recording the date, time and amount of fuel dispensed for the last 255 transactions. It also has fuel security features by only allowing authorised users to dispense the fuel from the diesel storage tank.
These fleet fuel management systems are available as a version that controls up to 80 users and a version that controls up to 250 users depending upon size of company. The Piusi MC Box fuel pump monitoring systems are able to be controlled at the unit via a pin code or a magnetic key system, and using the additional Piusi Self Service fuel management software can also be connected to a local PC for viewing and reporting on the transaction data.
Please note: If you have an existing system and are looking to buy replacement keys, make sure you know whether your unit is a green or yellow key system and select from the accessories table.
Features of the Piusi MC Box Fuel Management System:
- Controls up to 80 or 250 users (depending on model)
- 'Add on’ fuel security for an existing pumping system
- Limits pump access to users via pin code or key (if purchased)
- Records transaction data such as user, date, time & QTY
- Facility to record vehicle reg number & odometer readings
- Pump start/stop & pre-set dispense features
- Can be connected to an Ocio gauge & nozzle switch
- Local memory of 255 transactions
- Optional software to download data to a Windows PC
- Available in 12v/24v/230v

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
Product Models and Features
Code | Model | Description | Price | |
---|---|---|---|---|
CTS4104 | Piusi MC Box Fuel Management Unit Complete Download Software 230v 80 User | Replaces Code: 00057201A 230v 80 Users Download Software/Key Pack Flow Meter - K600 35 pulses per ltr | £2,395.65 ex. VAT | |
CTS4105 | Piusi MC Box Fuel Management Unit Complete USB Software 230v 80 User | Replaces Code: 00057201A 230v 80 Users USB Software/Key Pack Flow Meter - K600 35 pulses per ltr | £2,502.05 ex. VAT | |
F1398000D | Piusi MC Box Fuel Management Unit Only 110v-230v 80 User | 110v-230v 80 Users Replaces code: F1398000B F1398003A | £1,430.05 ex. VAT | |
F1398005C | Piusi MC Box Fuel Management Unit Only 230v 250 User | 230v 250 Users Replaces code: F13980050 | £2,043.35 ex. VAT | |
F1398006C | Piusi MC Box Fuel Management Unit Only 230v 250 User AdBlue™ | 230v 250 Users Replaces code: F1398006A | £1,988.00 ex. VAT | |
F13980130 | Piusi MC Box Fuel Management Unit Only 12v-24v 250 User | 12v-24v 250 Users Replaces code: F13980020 F13980010 | £2,063.95 ex. VAT |
Product Accessories
Code | Accessory | Price | |
---|---|---|---|
CTS4300 | Piusi Self Service Management AGILIS Download Software - Key Reader c/w Yellow Keys Software Type: Download | £706.90 ex. VAT | |
CTS4102 | Piusi Self Service Management AGILIS USB Software - Key Reader c/w Yellow Keys Software Type: USB | £809.80 ex. VAT | |
R12496 | Piusi Fuel Management System Manager Key | £78.20 ex. VAT | |
R15904000 | Piusi Fuel Management System Yellow User Keys | £195.00 ex. VAT |
Scroll left and right to view table
I want to view this information on my computer rather than at the unit, is this possible?
Yes. By purchasing the Piusi Self Service Management AGILIS fuel management software, all transaction data can be exported to a computer and viewed and filtered by user, date, vehicle or dispenser for more convenient analysis. Some customers who are on a budget opt to just view the transaction data at the unit, which is why we offer the software as an optional extra rather than as standard.
You can view or select the Piusi software either in the accessories table or by clicking here.
How do I set up new users on the Piusi MC Box fuel management system?
Depending upon how you have chosen to allow user access, users are set up with either a pin code or an electronic key. How to set up a user via either of these options are covered in our video here.
If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.
Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
