Dispenser (Local/Onsite Data)

From

£1,925.60

ex. VAT

Fluids

  • D
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

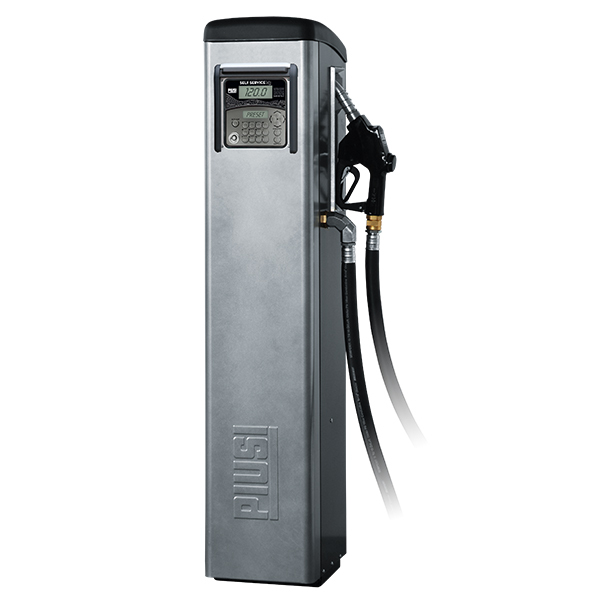

The Piusi Self Service MC Fuel Management System is an innovative raps oil and diesel dispenser, which offers authorised users fast and precise dispensing and fuel monitoring features. This Piusi fuel monitoring unit, which comes standard with a nozzle holder, incorporated diesel transfer pump, motor and electronic meter, is capable of recording the date, time and amount of fuel dispensed for the last 255 transactions.

The Self Service MC fleet fuel management system has the capability of controlling up to 80 users as standard, allowing only these users to have access to the pump and therefore providing the tank owner with fuel security. It can be controlled and set up at the unit, by means of pin code or magnetic data key.

Whereas these stand-alone Piusi fuel management systems show transaction data on the unit’s screen; there is an optional Piusi Self Service Management 2018 software package that permits the exporting of data to a local PC for analysis. For more advanced software look at the Self Service 2.0 version of this unit. The Self Service MC diesel management systems come either as floor-mounted versions or Mini versions, which can be wall-mounted or fitted onto the side of a bunded diesel tank.

Please note: If you have an existing system and are looking to buy replacement keys, make sure you know whether your unit is a green or yellow key system and choose from the accessories table.

Features of the Piusi Self Service MC Fuel Management System:

  • Controls up to 80 users
  • Complete fuel dispenser
  • Limits pump access to users via pin code or key (if purchased)
  • Records transaction data such as user, date, time & QTY
  • Facility to record vehicle reg number & odometer readings
  • Pump start/stop & pre-set dispense features
  • Can be connected to an Ocio gauge
  • Local memory of 255 transactions
  • K600 flow meter
  • Automatic nozzle and nozzle holster
  • 4m x 1" delivery hose (7m for F0073806A)
  • Versions available with water filter
  • Optional software to download data to a Windows PC
  • Available in 230v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
738B0APiusi Self Service Fuel Management Unit 70MC Mini 80 User

Max Flow (lpm) - 70

230v

80 Users

Panther 72 Diesel Transfer Pump

Nozzle Type - Auto 80

Flow Meter - K600

1 1/2" F BSP Inlet

For tank mounting

£1,925.60 ex. VAT
73801BPiusi Self Service 70MC Fuel Management Unit + Filter 80 User

Max Flow (lpm) - 70

230v

80 Users

Panther 72 Diesel Transfer Pump

Nozzle Type - Auto 80

Flow Meter - K600

1 1/2" F BSP Inlet

Water Filter - 30micron

£2,395.65 ex. VAT
73806APiusi Self Service 70MC Fuel Management Unit + Filter + Printer 80User

Max Flow (lpm) - 70

230v

80 Users

Panther 72 Diesel Transfer Pump

Nozzle Type - Auto 80

Flow Meter - K600

c/w 7m Hose

Ticket Printer

1 1/2" F BSP Inlet

Water Filter - 30micron

£3,077.05 ex. VAT
741B0BPiusi Self Service 100MC Fuel Management Unit Mini 80 User

Max Flow (lpm) - 85

230v

80 Users

E120 Diesel Transfer Pump

Nozzle Type - Auto 120

Flow Meter - K600

1 1/2" F BSP Inlet

For tank mounting

£2,475.75 ex. VAT
74101BPiusi Self Service 100MC Fuel Management Unit + Filter 80 User

Max Flow (lpm) - 85

230v

80 Users

E120 Diesel Transfer Pump

Nozzle Type - Auto 120

Flow Meter - K600

1 1/2" F BSP Inlet

Water Filter - 30micron

£2,858.45 ex. VAT

Product Accessories

CodeAccessoryPrice
CTS4000

Piusi Self Service Management 2018 Download Software - Key Reader c/w Yellow Keys

Software Type: Download
Data Transfer: Key Reader
User Keys: 10
Manager Keys:1

£686.30 ex. VAT
CTS4002

Piusi Self Service Management 2018 USB Software - Key Reader c/w Yellow Keys

Software Type: USB
Data Transfer: Key Reader
User Keys: 10
Manager Keys: 1

£786.20 ex. VAT
R12496

Piusi Fuel Management System Manager Key

£75.90 ex. VAT
R15904000

Piusi Fuel Management System Yellow User Keys

£189.30 ex. VAT

Scroll left and right to view table

I want to view this information at my computer rather than at the unit, is this possible?

Yes. By purchasing the Piusi Self Service Management 2018, all transaction data can be exported to a computer and viewed and filtered by user, date, vehicle or dispenser for more convenient analysis. Some customers who are on a budget opt to just view the transaction data at the unit, which is why we offer the software as an optional extra rather than as standard.

You can view or select the Piusi fuel management software either in the accessories table or by clicking here.

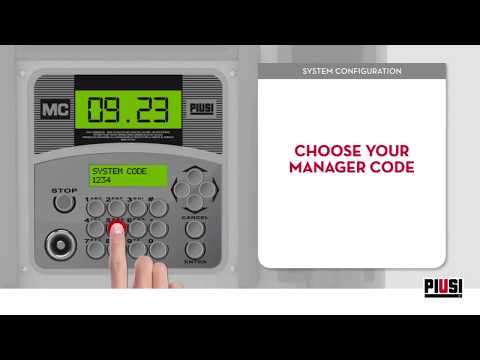

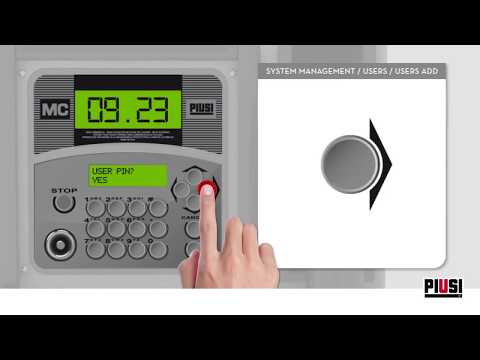

How do I set up new users on the Piusi Self Service MC fleet fuel management system?

Depending upon how you have chosen to allow user access to the Piusi fuel management system, users are set up with either a pin code or an electronic key. How to set up a user via either of these options are covered in our video here.

What applications are these fuel dispensers suitable for?

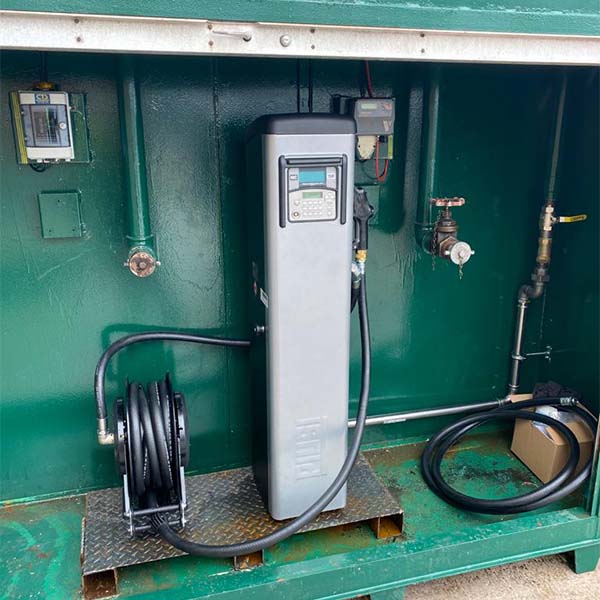

These fuel dispensers can be easily floor mounted or freestanding next to a fuel tank. They are used only for private refuelling in a non-resale refuelling environment as they are not weights and measures approved. These diesel refuelling pump kits are an ideal solution for the refuelling of fleets of vehicles, agricultural machinery as well as plant equipment

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
