56ltrs Per Min (230v / 110v / 400v)

From

£206.25

ex. VAT

Fluids

  • D
  • HVO/GTL
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

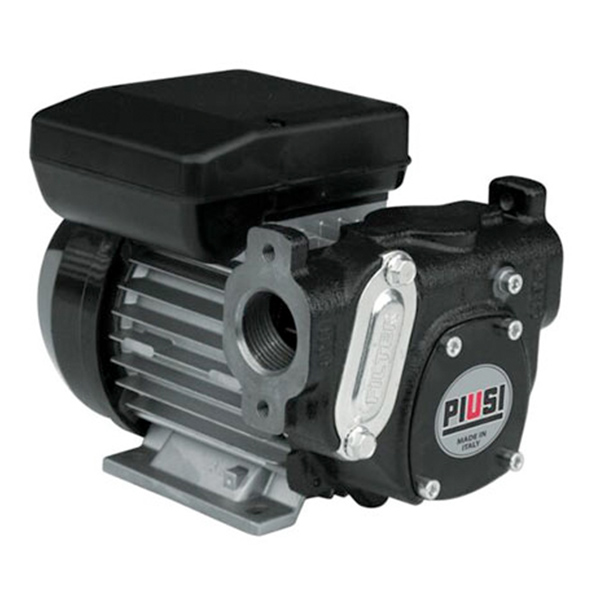

The Italian manufacturerd Piusi Panther 56 is the market leading electric diesel transfer pump for vehicle, fleet and machinery refuelling, reknowned for its quality and reliability. The Panther 56 pump is the entry level model in the Piusi mains powered, diesel refuelling pump range and proves most popular for standard diesel dispensing. Compact and easy to install, these electric diesel transfer pumps are ideal for diesel storage tank dispensers, fixed fuel transfer pump systems and other industrial applications where a reasonable flow rate is required. For that reason Piusi Panther pumps are installed by the majority of fuel tank manufacturers.

This cast iron, rotary vane Piusi diesel pump comes complete with both pump head and motor, an integrated bypass valve and 100 micron internal filter that is easily accessible for cleaning. Thanks to its mechanical seal, this self-priming diesel dispensing pump guarantees reliability, even at low temperatures. Other benefits of the Panther 56 electric fuel transfer pump are its thermal motor overload protection, continuous running and a simple on/off operating switch for easy operation.

Features of the Piusi Panther 56 Electric Diesel Transfer Pump:

  • Self-priming diesel fuel transfer pump
  • Sintered steel rotor & acetal resin vanes
  • Cast iron pump body with anti-corrosion paint
  • Incorporated bypass valve & Viton lip seal
  • Flow rate: 56ltr Per Min
  • On/off switch
  • Continuous running
  • Thermal motor overload protection
  • 1” F BSP inlet/outlet ports
  • Protection grade: IP55
  • Available in 230v/110v/400v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
730000Piusi Panther 56 Diesel Transfer Pump 230v/50Hz

Max Flow (lpm) - 56

230v

50Hz

Ports - 1" F BSP

£206.25 ex. VAT
730380Piusi Panther 56 Diesel Transfer Pump 110v/50Hz

Max Flow (lpm) - 56

110v

50Hz

Ports - 1" F BSP

£454.40 ex. VAT
730070Piusi Panther 56 Diesel Transfer Pump 110v/60Hz

Max Flow (lpm) - 56

110v

60Hz

Ports - 1" F - BSP

£307.70 ex. VAT
733000Piusi Panther 56 Diesel Transfer Pump 400v/50Hz

Max Flow (lpm) - 56

400v

50Hz

Ports - 1" F BSP

£222.40 ex. VAT

Product Accessories

CodeAccessoryPrice
CTS1070

Piusi Panther 56/72 Pump Service Kit

£26.25 ex. VAT
FRM003

Small Pump Carry Frame Kit

Width - 250mm
Length - 310mm
Height - 270mm
c/w Nuts & Bolts, Rubber Mounts & Cable Tie

£171.65 ex. VAT
FRM005

Piusi Pump Carry Plate Kit

Carry plate with handle
Nuts and bolts for pump connection
Reusable heavy duty cable tie for hose

£96.85 ex. VAT
R11276000

Piusi Vanes and Springs Kit

Watch the video guide for how to change the vanes in the video section above

£24.05 ex. VAT

Scroll left and right to view table

Where is this fuel dispensing pump typically used?

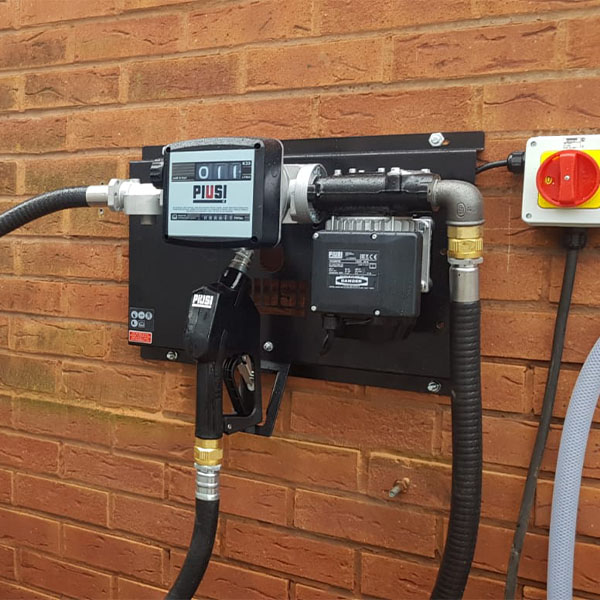

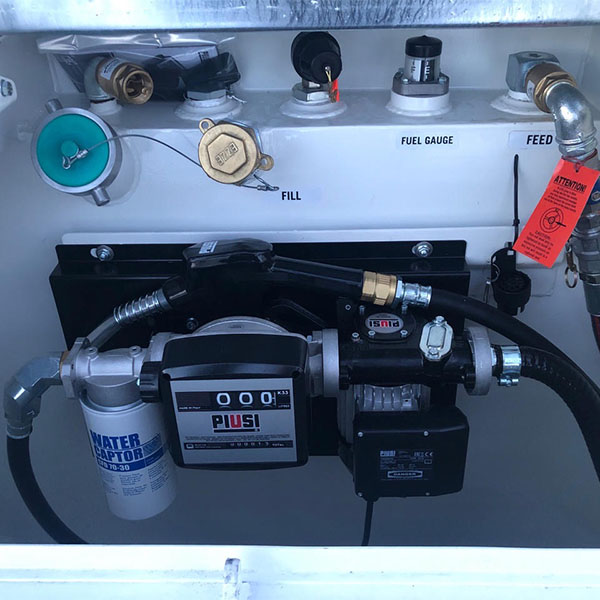

This fuel dispensing pump by the Italian manufactured Piusi, is preferable choice by most fuel tank manufacturers due to its reliability. This diesel transfer pump is usually installed on static fuel storage tanks during tank manufacturing or retrofitted on existing tanks. Typically, the fuel transfer pump is used in non-resale refuelling environment as it is not weights and measures approved. The fuel dispensing pump is an ideal solution for the refuelling of fleets of vehicles, agricultural machinery as well as plant equipment.

Can I use the Panther pump for kerosene?

We frequently get asked this question and the answer is no! Kerosene has a lower flash point than diesel, which means there is a greater chance of a spark resulting in ignition during the pumping process. Like with petrol, pumps for kerosene therefore have to be ATEX approved, meaning that they are certified as being safe for use in potentially flammable environments.

View our range of ATEX pumps here.

I need a nozzle and flow meter, which is suitable for use with this diesel fuel transfer pump?

When picking a suitable nozzle and flow meter to go with your pump, you need to make sure they are compatible with the fluid you’re pumping and that it can cope with the flow rate your pump will be working at.

The Panther pump is a diesel transfer pump with a flow rate of 56lpm.

Suitable NozzlesSuitable Flow Meters
Piusi Self 2000K33
Piusi Self 3000K44
Piusi Auto 60K24
Professional AutoK600/3
ZVA SlimlineK600 B/3
Husky X Mate

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
