52ltrs Per Min (230v / 110v / 12v)

From

£711.45

ex. VAT

Fluids

  • D
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • Urea
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

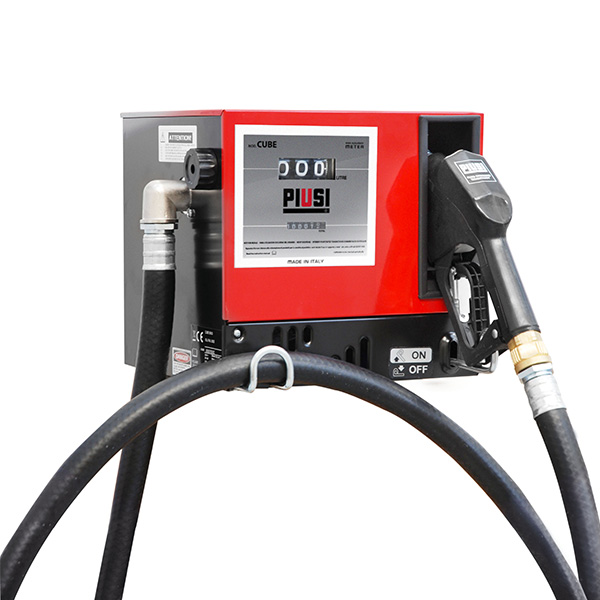

The Piusi Cube 56 electric diesel transfer pump is an Italian manufactured, market leading refuelling pump developed for the dispensing of diesel fuel for non-resale refuelling of fleets, vehicles and machinery. This fully enclosed, Piusi electric fuel transfer pump unit comes complete with meter, nozzle and hose, allowing the fast, safe refuelling of vehicles, as well as the measuring of the quantities of fuel dispensed. The incorporated fuel flow meter in this Piusi diesel pump has a well-constructed mechanical display with a proven track record in reliability and ease of use. This 230v, 24v and 12v diesel fuel transfer pump also has an in-built nozzle holder with pump start lever and automatic pump off function when the nozzle is returned, making operation an easy process.

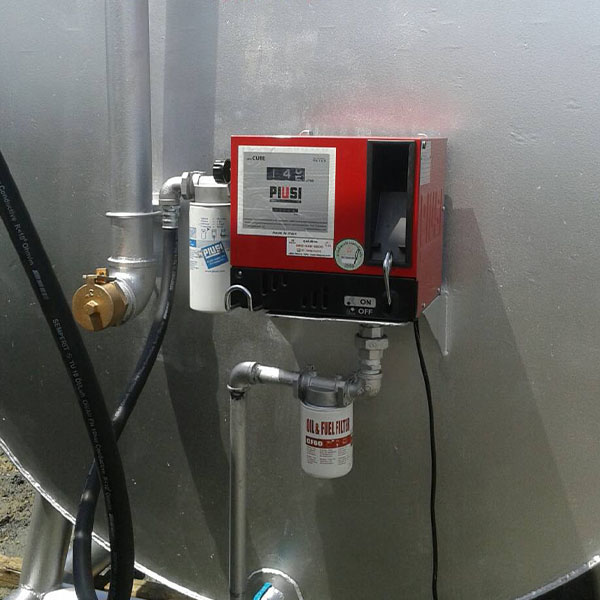

Simple and versatile, Piusi Cube 56 diesel transfer pumps can be installed directly onto a drum or fuel storage tank, thanks to the optional 2” quick coupling, or can be mounted freestanding using a pedestal. There is also a wall support kit available to enable the fitting of this Piusi fuel dispenser onto a wall or side of a bunded fuel tank. This Italian made 230v, 24v and 12v diesel fuel transfer pump is perfect solution for anyone looking for high quality and long-lasting fuel dispenser.

Features of the Piusi Cube 56 Electric Diesel Transfer Pump:

  • Fully enclosed fuel dispenser
  • Panther 56 diesel transfer pump
  • Mechanical seal & incorporated bypass valve
  • Flow Rate: 56ltrs Per Min
  • 3 digit flow meter
  • Automatic nozzle & 4m x 3/4" delivery hose
  • Nozzle holder with pump start/stop lever
  • Protection grade: IP55 (Internal Motor)
  • Available in 230v / 12v / 24v
  • Various mounting options available
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
57500CPiusi Cube 56 230v Fuel Transfer Pump 50Hz

Max flow (lpm) - 52

230v

Panther 56 Diesel Pump

Flow meter - 3 digit

Nozzle type - Auto 60

Ports - 1" F BSP

£711.45 ex. VAT
57516APiusi Cube 56 230v Fuel Transfer Pump 50Hz +Pulse Out

Max flow (lpm) - 52

230v

Panther 56 Diesel Pump

Flow meter - 4 digit

Nozzle type - Auto 60

Ports - 1" F BSP

£1,149.05 ex. VAT
575340Piusi Cube 56 110v Fuel Transfer Pump 50Hz

Max flow (lpm) - 52

110v

Panther 56 Diesel Pump

Flow meter - 3 digit

Nozzle type - Auto 60

Ports - 1" F BSP

£855.35 ex. VAT
576000Piusi Cube DC 12v Fuel Transfer Pump

Max flow (lpm) - 52

12v

Panther DC Diesel Pump

Flow meter - 3 digit

Nozzle type - Auto 60

Ports - 1" F BSP

£777.40 ex. VAT

Product Accessories

CodeAccessoryPrice
F12708

Cube Pedestal

£304.65 ex. VAT
F12737

Cube Wall Mounting Kit

£52.90 ex. VAT
CBFLT10

Cube 10 Micron Filter Kit

£82.25 ex. VAT
CBFLT30

Cube 30 Micron Filter Kit

£82.25 ex. VAT
8930

Piusi Quick Coupling 1”

Drum connection – 2” M BSP

Inlet inner thread – 1” F BSP

Outlet – 1” M BSP

£42.45 ex. VAT

Scroll left and right to view table

My Cube 56 unit is really old. I need to replace the pump inside, is it the normal Panther 56 I need?

No. The orientation of the Panther pump is adapted to fit inside a Cube unit and therefore the standard Panther 56 is not compatible as a replacement. You can find the correct pump on the spare parts page of the Cube 56 diesel transfer pump here.

What applications are these fuel dispensers suitable for?

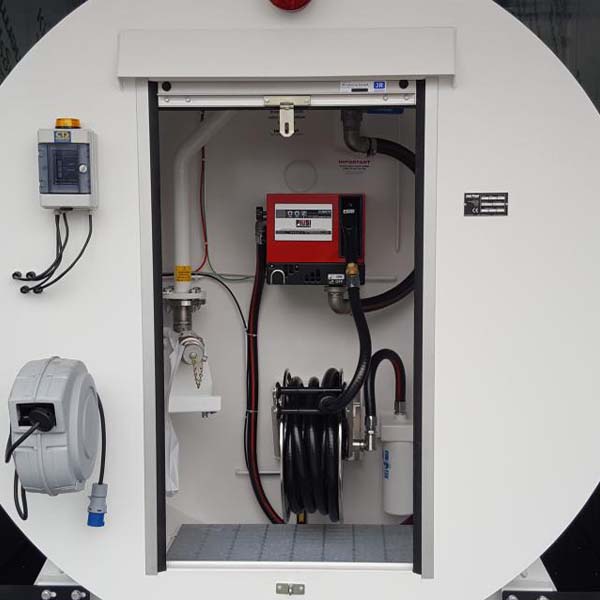

These fuel dispensers can be easily installed to a fuel storage tank during tank manufacturing, mounted on a wall next to a fuel tank, free standing on a pedestal or retrofitted to existing tanks. They are used only for private refuelling in non-resale refuelling environment as they are not weights and measures approved. These diesel refuelling pump kits are an ideal solution for the refuelling of fleets of vehicles, agricultural machinery as well as plant equipment.

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
