Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

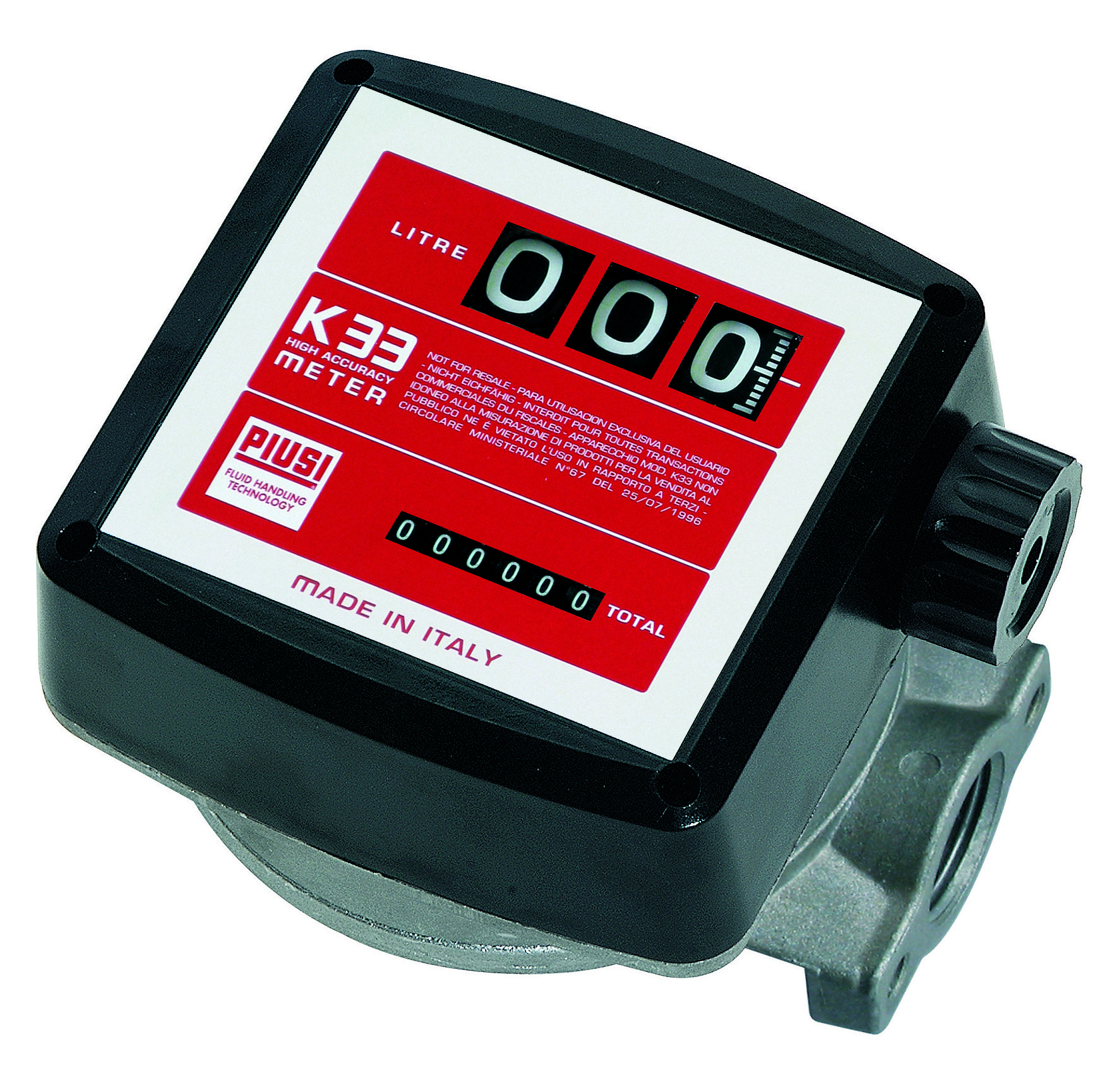

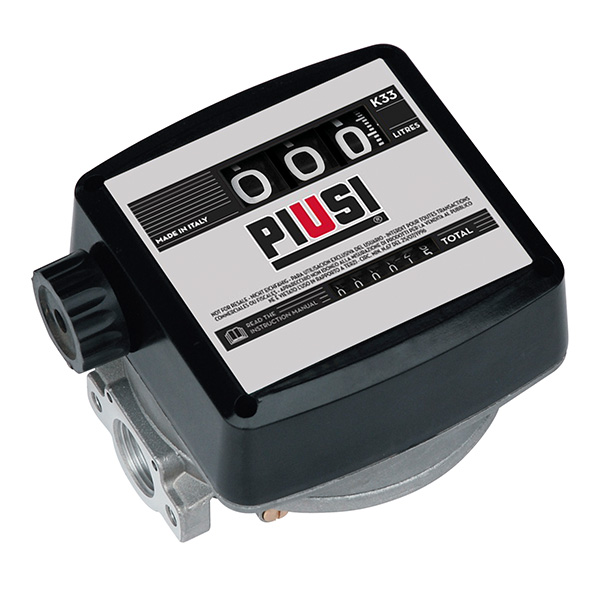

The Piusi K33 mechanical fuel flow meter measures the exact quantity of the dispensed diesel fuel or oil through a nutating disk system. Popular on OEM tank manufacturer pump kits, this fuel counter meter is able to measure up to 999.9 litres. K33 flow meter has a mechanical display that indicates to the user how much fuel has been used. Made by Italian manufacturer Piusi, the K33 oil and diesel flow meters are reliable, easy to install and calibrate options, whilst still being cost effective due to its mechanical rather than digital design.

Thanks to its flow range the Piusi K33 diesel fuel flow meter is compatible with many different pump and gravity installations. This combined with the fact that its face can be rotated to allow the flow from four directions makes this Piusi flow meter a flexible solution (flows left to right as standard). Watch this video on how to change the flow direction of the Piusi K33 meter to meet your installation requirements.

If you need a fuel flow meter for use in flammable environments, we offer the Piusi K33 ATEX version, suitable for dispensing gasoline, kerosene and diesel dispensed in a highly flammable environment.

Features of the Piusi K33 Fuel Flow Meter:

  • Mechanical fuel flow meter
  • Flow rate: 20-120ltr Per Min
  • Can be rotated to allow flow from 4 directions
  • 1” F x F BSP Inlet/Outlet
  • Polybutylene nutating disk system
  • Accuracy +/-1% after calibration
  • Working temperature -20°c/+60°c
  • 3 digit resettable and 6 digit non-resettable totaliser
  • Separate versions for diesel & oil
  • Oil version: Max viscosity of 2000 cSt
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
553000Piusi K33 Flow Meter - Diesel

Max Flow (lpm) - 120

Pressure (bar)-(psi) 3.5-50

1" F BSP

3 digit resettable totaliser

6 digit non-resettable totaliser

£166.35 ex. VAT
558000Piusi K33 Flow Meter - Oil

Max Flow (lpm) - 120

Pressure (bar)-(psi) 10-145

1" F BSP

3 digit resettable totaliser

6 digit non-resettable totaliser

Max Viscosity (cSt) - 2000

£194.10 ex. VAT

Can the Piusi K33 meter be used in a gravity fed installation?

In most normal gravity fed tank installations, the minimum flow rate required for the Piusi K33 fuel flow meter to accurately count is unlikely to be continuously achieved. It could be possible if the tank was positioned high enough and kept full enough for the weight of the fuel to provide a quicker flow rate. However, for guaranteed use, we would only recommend the K24 fuel flow meter.

My installation does not flow left to right, can I still use the Piusi K33 flow meter?

The Piusi K33 fuel flow meter is supplied as standard flowing left to right, however, the face can easily be rotated 90⁰. This will allow you to install the Piusi K33 with the flow from any four directions. For how to do this, watch our video here or revert to the instruction manual which can be found in the downloads tab.

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
