Digital (5-120ltr Per Min)

Piusi K24 Fuel Flow Meter

K24 Fuel Flow Meter

Image may vary depending on product model

Select image to zoom



ex. VAT


  • D
  • W
  • WS
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • Water
  • Windscreen
  • B2
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

The Piusi K24 Fuel Flow Meter is a digital turbine meter designed for the accurate counting of the quantity of diesel or water dispensed. Designed for flexible installation, this fuel counter meter can be added inline or by the nozzle end for easy reading of the compact yet clear digital display. This diesel fuel flow meter also has a face that can be rotated four way for ease of installation. Watch this video to see how to change the flow direction to meet your requirements.

This diesel flow meter is of lightweight plastic construction, which makes it perfect for portable diesel transfer applications such as in the agricultural and plant markets where the dispensing system needs to be carried around. Thanks to its low minimum flow rate, the K24 flow meter is suitable for gravity as well as pump installations.

A more rugged, aluminium version of the Piusi K24 fuel flow meter is available here.

Please note: If being used with HVO, the meter should be re-calibrated based on it's SG of 0.78 (diesel is 0.84).

Features of the Piusi K24 Fuel Flow Meter:

  • Digital turbine fuel flow meter
  • Flow rate: 5-1201ltr Per Min
  • Face can be rotated 4 ways for easy reading
  • Flow rate indication
  • 1” M BSP Inlet/Outlet c/w socket

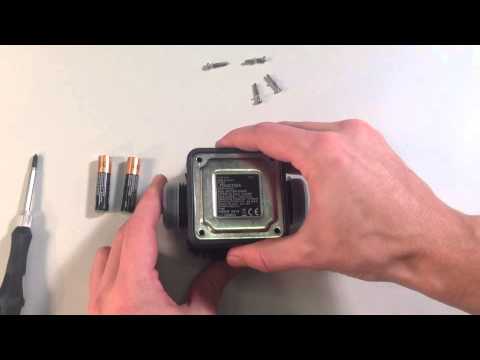

  • LCD electronic display (2 x AAA batteries)
  • Accuracy +/-1% after calibration
  • Working temperature -10°c/+50°c
  • 5 digit partial and 6 digit totaliser
  • For pump and gravity systems
  • Suitable for diesel and water
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

F00407330Piusi K24 Plastic Fuel Flow Meter

Max Flow (lpm) - 120

Pressure (bar)-(psi) 10-145

Fluid Viscosity: 2-5.35 cSt

Max Fluid Temperature - +50ºc

1" M BSP c/w socket

5 digit partial totaliser

6 digit totaliser

Diesel and water

IP Rating: IP65

£221.20 ex. VAT

Product Accessories


K24 Socket for Diesel

1" FxF socket for K24 Diesel

£7.80 ex. VAT

Scroll left and right to view table

Can the Piusi K24 meter be used in a gravity fed installation?

As well as being suitable for the pumping system, the Piusi K24 meter can be also used in gravity fed systems. The K24 flow meter is easy to install on the gravity fed installation and provide a metering accuracy of +/- 1%. In case metering turns out inaccurate, the Pisui K24 can be calibrated to ensure maximum precision.

My installation does not flow left to right, can I still use the Piusi K24 flow meter?

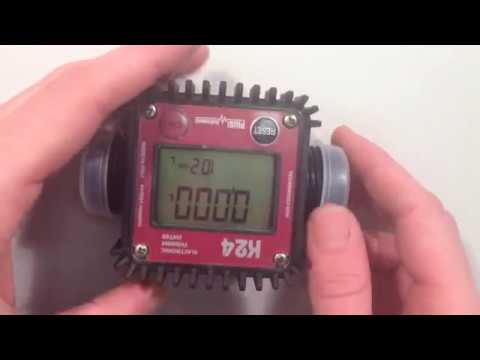

The Piusi K24 fuel flow meter is supplied as standard flowing left to right; however, the face can easily be rotated 90⁰. This will allow you to install the Piusi K24 with the flow from any four directions. For how to do this, watch our video here or revert to the instruction manual which can be found in the downloads tab.

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
