Mechanical (20-90lpm)

From

£160.70

ex. VAT

Fluids

  • Diesel
  • HVO/GTL
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

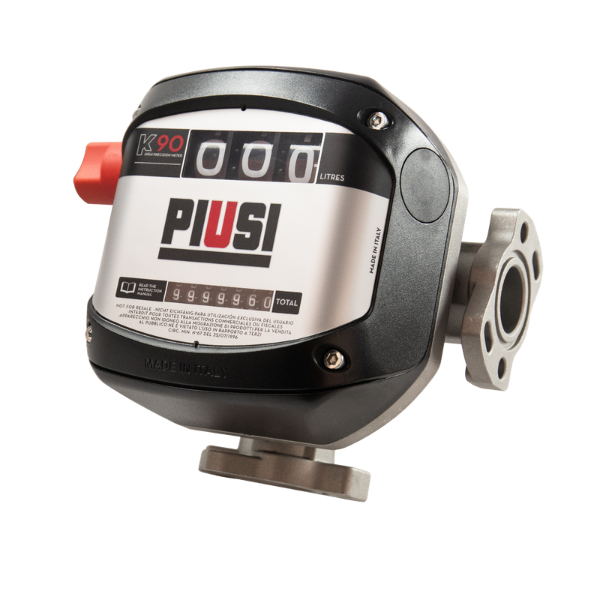

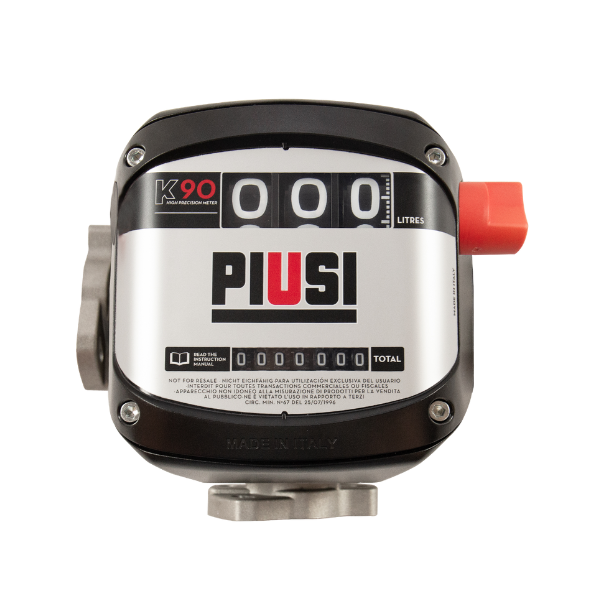

This Piusi K90 Fuel Flow Meter has a nutating disk meter with large mechanical display for enhanced visibility to measure the quantity of fuel that has been dispensed. With a 90 degree inlet and outlet flow as opposed to traditional inline there is no the need for additional fittings, simplifying the installation. The other key benefit of this patented diesel flow meter is its high precision design, providing a minimum of 0.8% accuracy, and between 50 and 70lpm, achieving 0.6% accuracy.

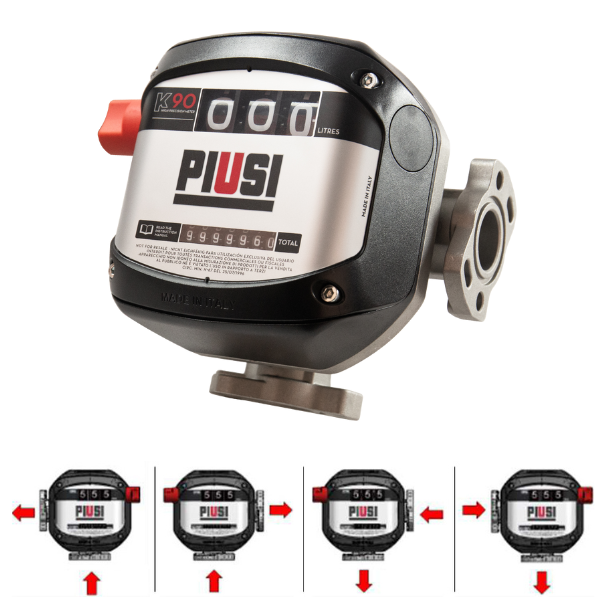

There are 4 versions available depending on installation requirements as the diesel fuel flow meter body cannot be rotated (see diagram below product image for more details.

Please note: This Piusi flow meter is not threaded. Flanges are required to connect to other Piusi equipment or provide a thread.

Features of the Piusi K90 Fuel Flow Meter:

  • Working temperature -20/+55°c
  • 3 digit resettable & 7 digital non-resettable totaliser
  • Compact in size and easy to install
  • Improved plastic materials to ensure sturdiness
  • Mechanical fuel flow meter
  • 4 versions available as cannot be rotated
  • Nutating disk system
  • High precision with 0.6% accuracy
  • Flanges required as not threaded
  • 90 degree inlet and outlet flow
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
F009SW000Piusi K90 Mechanical Diesel Fuel Flow Meter V1

Flow rate 20 - 90lpm

Pressure Bar/Psi 3.5/50

Inlet - Flange required

Outlet - Flange Required

Totaliser - 0.1 - 99999.9

£160.70 ex. VAT
F009SE000K90 Mechanical Meter V2

Flow rate 20 - 90lpm

Pressure Bar/Psi 3.5/50

Inlet - Flange required

Outlet - Flange Required

Totaliser - 0.1 - 99999.9

£160.70 ex. VAT
F009ES000K90 Mechanical Meter V3

Flow rate 20 - 90lpm

Pressure Bar/Psi 3.5/50

Inlet - Flange required

Outlet - Flange Required

Totaliser - 0.1 - 99999.9

£160.70 ex. VAT
F009WS000K90 Mechanical Meter V4

Flow rate 20 - 90lpm

Pressure Bar/Psi 3.5/50

Inlet - Flange required

Outlet - Flange Required

Totaliser - 0.1 - 99999.9

£160.70 ex. VAT

What is a diesel fuel flow meter?

A diesel fuel flow meter, also referred to as a fuel counter, is used to measure the quantity of fluid that has been moved during the transfer or dispensing process. They have a visual display, which can be either mechanical or digital, for the user to read off the measurement. In the instance of a refuelling application, the diesel fuel flow meter is used to indicate the amount of fuel that has been dispensed in that particular instance, as well as usually having a non-resettable totaliser to show what has been used overtime.

What does a diesel flow meter measure?

A diesel fuel flow meter counts the amount of fuel transferred in that particular transaction so that the user knows how much they have dispensed into the vehicle or machinery. An AdBlue™ flow meter measures the amount of AdBlue transferred, and a heating oil meter is used to measure the total quantity of oil consumed by the heating system overtime.

What types of flow meters are available?

We have various kinds of mechanical, digital and fuel pulse flow meters, for measuring diesel, oil, AdBlue, petrol, heating oil and water.

Where do I install a flow meter?

Fuel flow meters, will always be installed on the outlet/dispensing side of your pump to identify how much fuel has passed through it. However the exact position you fit it depends on the installation at hand. Contact us to speak to our technical team for advice on how to install a flow meter correctly for your tank.
