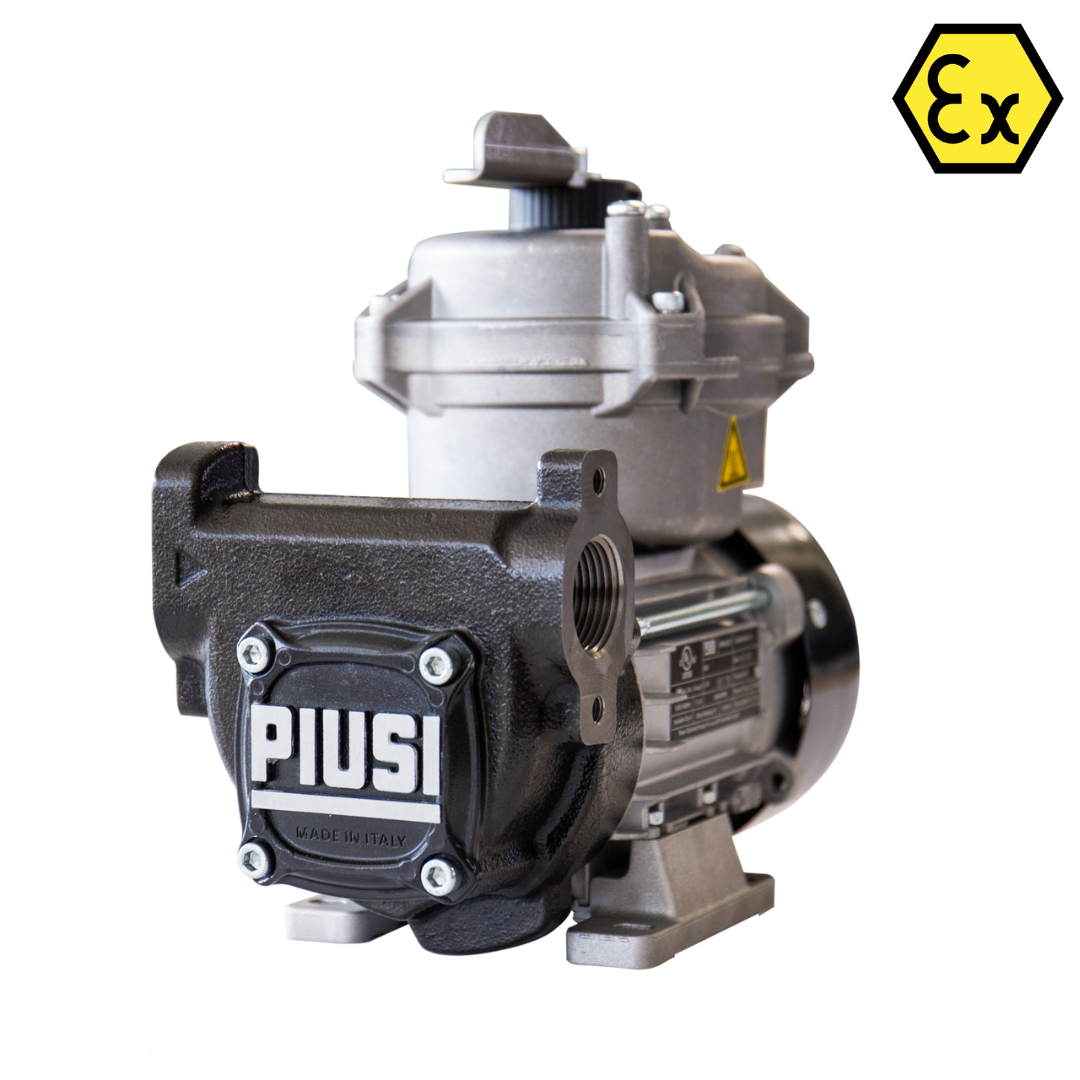

Piusi Panther EX56 ATEX Fuel Transfer Pump
56ltrs Per Min (230v)
From
£628.66
ex. VAT
Fluids
- Petrol
- Diesel
- Kerosene
- HVO/GTL
- Jet Fuel
- Avgas
The Official UK agent of Piusi pumps & fuel dispensing equipment
About the product
New from Italian manufacturer Piusi, the Panther EX56 is an ATEX approved 230v fuel transfer pump, built with the renowned Panther pump quality that has been trusted in the fuel market for over 20 years.
The genuine AC motor allows for continuous running for uninterrupted dispensing and larger scale fuel transfer, with no duty cycle like its predecessor the Piusi EX50, and a better flow rate compared to others of 56lpm.
This ATEX pump is designed for the transfer of petrol, kerosene, JetA1, Avgas, diesel, and HVO in a zone one environment, as they satisfy the European directives for explosion proof equipment.
This mains-powered, self-priming ATEX fuel pump has a sturdy, cast iron body, and thanks to its quality manufacturing has a long life span. A version with a drum connector and nozzle switch are available.
These pumps are ATEX certified II2 G Ex db h IIB T4 Gb.
Features of the Piusi Panther EX56 ATEX Fuel Transfer Pump:
- Self-priming explosion proof pump
- For diesel, petrol, Kerosene, HVO/GTL, Aspen 2/4, JetA1 and Avgas
- Sintered steel rotor & Technopolymer vanes
- Cast iron pump body with anti-corrosion paint
- Incorporated bypass valve & viton lip ring seal
- Maximum flow rate: 56ltr Per Min
- Continuous running
- 1” F BSP inlet/outlet ports
- Thermal motor overload protection
- Version with drum connector & nozzle switch available
- Pump only version also available with 90° mounting plate
- Protection grade: IP55
- 230v
- ATEX Zone 1 certified II2 G Ex db h IIB T4 Gb
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
Product Models and Features
| Code | Model | Description | Price | |
|---|---|---|---|---|
| F00580030 | Panther EX56 ATEX Pump only - 240v | Max flow (lpm) – 56 240v Continuous running Pump Only 1” F BSP inlet/outlet ports Petrol, kerosene, diesel HVO/GTL, Aspen 2/4 | £628.66 ex. VAT | |

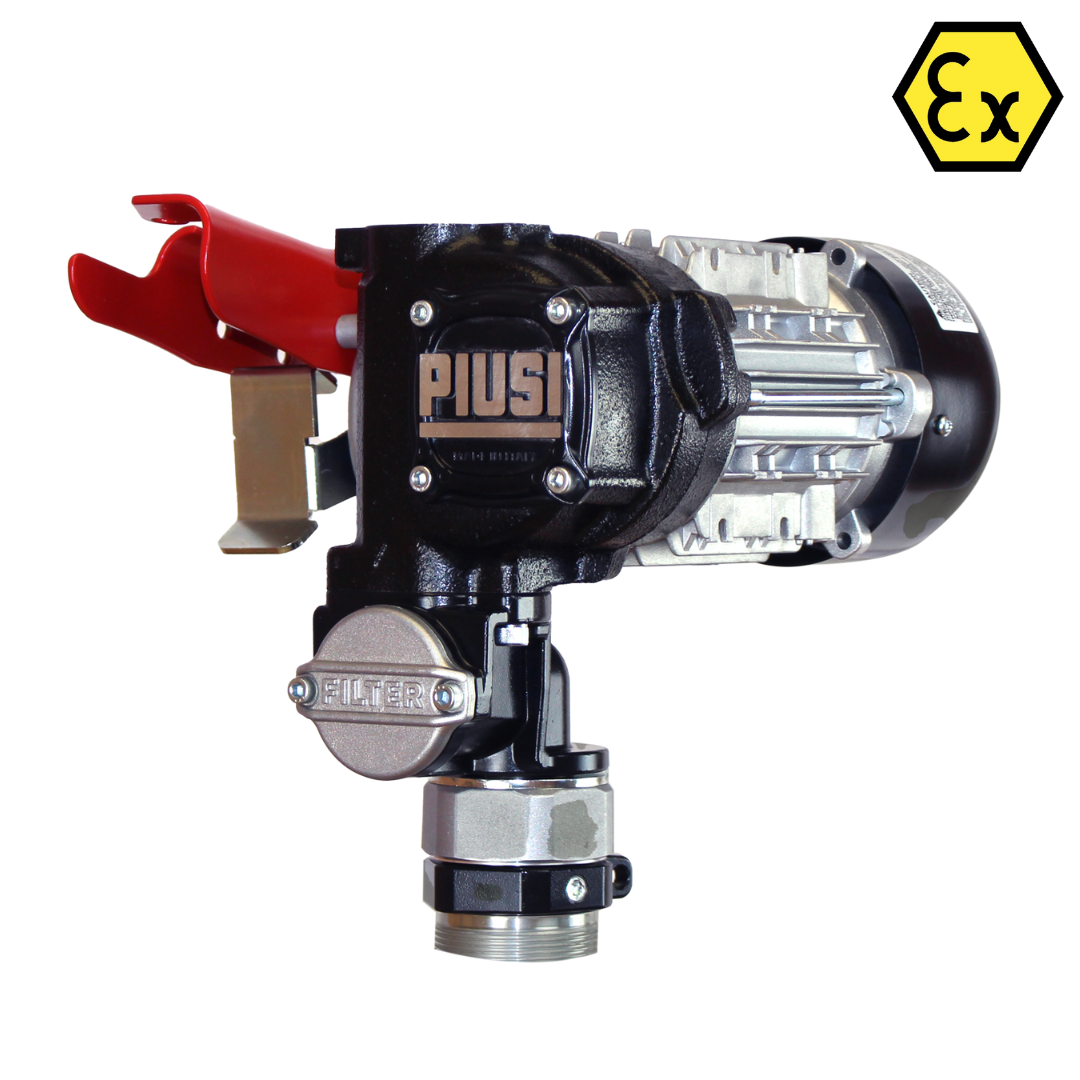

| F00580010 | Panther EX56 ATEX Drum Version Pump only | Max flow (lpm) – 56 230v Continuous running Drum connector Nozzle switch 1” F BSP inlet/outlet ports Petrol, kerosene, diesel HVO/GTL, Aspen 2/4 | £653.03 ex. VAT | |

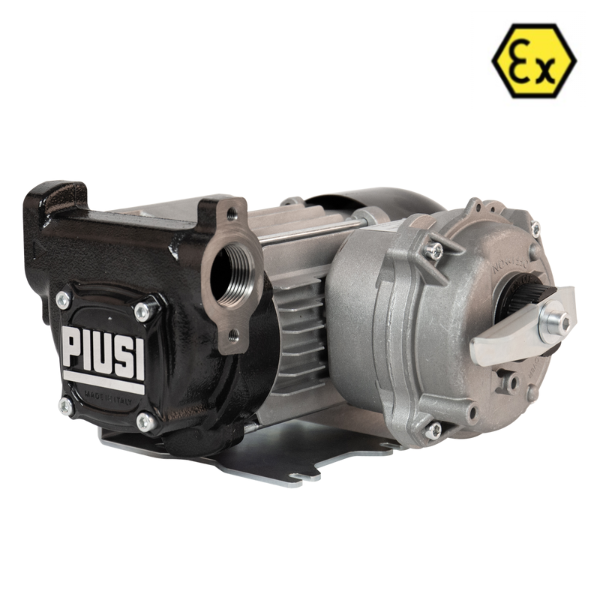

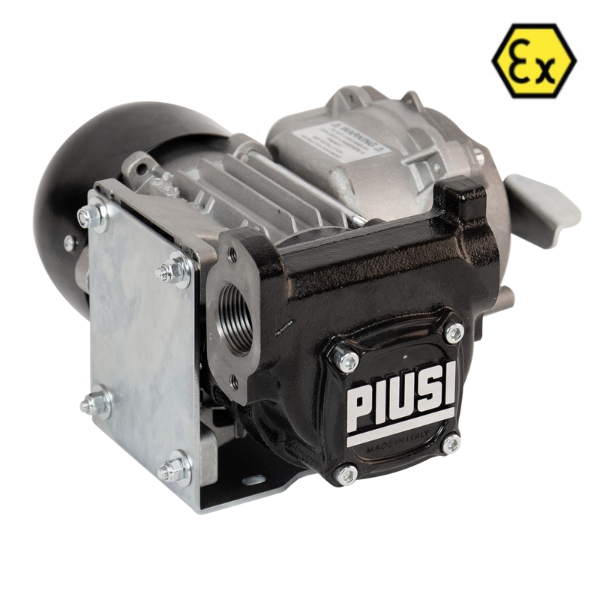

| F00580200 | Panther EX56 ATEX Pump only - 90° mounting plate | Max flow (lpm) – 56 240v Continuous running Pump mounted onto 90° plate 1” F BSP inlet/outlet ports Petrol, kerosene, diesel HVO/GTL, Aspen 2/4 | £658.38 ex. VAT |
Product Accessories
| Code | Accessory | Price | |
|---|---|---|---|
| F17163000 | Drum Connector c/w Filter & Valve 2" M BSP drum connection 1" F BSP outlet Integrated filter Integrated valve Diesel, kerosene, oil, gasoline | £60.86 ex. VAT | |
| F2702400A | Panther EX Cable Gland | £32.40 ex. VAT | |
| F008934020 | Piusi Metal Telescopic Downtube (1100mm) 1" M BSPT Drum Connection Max length - 1100mm Suitable for flammable liquids including petrol, kerosene and diesel | £41.56 ex. VAT | |
| F008934010 | Piusi Metal Telescopic Downtube (1800mm) c/w 2" Drum Connector and Valve Max length - 1800mm 2" Drum connector and valve Suitable for flammable liquids including petrol, kerosene and diesel | £144.12 ex. VAT |
Scroll left and right to view table
What is an ATEX pump?
When dispensing petrol, kerosene or diesel in a zone one area, specially certified ATEX pumps need to be used. These are safe for use with lower flash point liquids. Available in our ATEX approved petrol transfer pump range are both mains powered and 12v fuel transfer pumps, that are specified for zone one applications. We also stock manual hand petrol transfer ATEX pumps for a cost effective solution.
What applications can ATEX pumps be used for?
Our ATEX pumps are ideal for dispensing flammable liquids in applications such as: race/rally motorsport, quad/motorbikes, ground maintenance e.g.: lawnmowers, forest tools, golf course buggies, boats/leisure craft e.g.: jet skis, and refilling heating oil tanks when tanker access is difficult.
Why should I buy Piusi pumps and products?
As the UK official Piusi distributor and agent, we are the first port of call for any Piusi pump and associated fuel dispensing equipment. Piusi is the original, quality, Italian manufacturer of diesel, light oil and AdBlue handling products, known worldwide for their reliability and longevity.
Being the only importer in the UK, we are the Piusi supplier you can rely on to have the best stock holdings, technical product advice and after sale support with regular Piusi distributor training at their factory in Italy. For more information about Piusi pumps or for trade pricing if you would like to become a distributor, please contact our technical sales department on 0121 351 4445.
What are the benefits of buying Piusi products from the UK official Piusi distributor and agent?
Being Piusi’s official UK agent and distributor means we have the most competitive prices, the best stock holdings, technical product advice and after sale support for all their products, as well as regular Piusi distributor training at their factory in Italy.
Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.
Apply for a credit account today to receive our exclusive benefit for trade customers only.
