50ltrs Per Min (12v / 230v)

From

£474.40

ex. VAT

Fluids

  • Petrol
  • Diesel
  • Kerosene
  • Jet Fuel
  • HVO/GTL
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

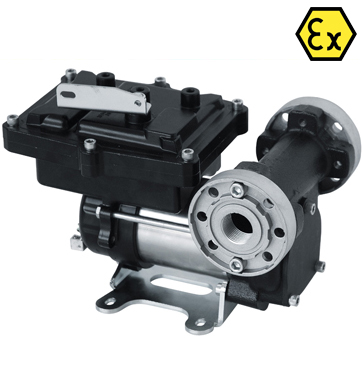

From Piusi is the EX50 ATEX approved 230v or 12v fuel transfer pump, which has taken our product range into the market for flammable liquids. Designed for the mobile and static transfer of petrol, kerosene and diesel in a zone one environment, these ATEX pumps satisfy the European directives for explosion proof equipment. This petrol transfer pump has a sturdy, cast iron body, and thanks to its quality manufacturing has a long life span. Incorporated in the 230 and 12 volt fuel transfer pump body is an integrated bypass valve.

These ATEX pumps are available in mains or low voltage, and are also available as part of a drum kit that comes with drum connector and nozzle holster. This Italian made 230v and 12v fuel transfer pump has an anti-noise filter which makes the pump application more convenient with a low level of noise. These pumps are ATEX certified II2 G Ex db h IIB T4 Gb.

Designed for fuel dispensing and transfer, not fuel recirculation systems.

Please note: Power cables & connectors are dependent upon the individual site risk assessment for the connection method between the ATEX Piusi fuel pump and power source.

Features of the Piusi EX50 Fuel Transfer ATEX Pump:

  • Explosion proof kerosene, diesel and petrol transfer pump
  • Suitable for AVGAS, AVJET A1, Aspen 2, Aspen 4 & petrol with 15% ethanol blend
  • Integrated bypass valve
  • Maximum flow rate: 50ltr Per Min
  • Duty cycle: 30 min on/ 60 min off
  • Anti-noise filter
  • Cast iron construction
  • ATEX pump certified for Zone 1
  • Viton seals
  • Available in 12v and 230v
  • ATEX certified II2 G Ex db h IIB T4 Gb
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
F00371000Piusi EX50 ATEX Pump 12v

Max flow (lpm) – 50

12v

Duty Cycle (min) – 30 on/60 off

2700rpm

17 amps current

Inlet – 1” F BSP Flanged

Petrol, kerosene and diesel

£474.40 ex. VAT

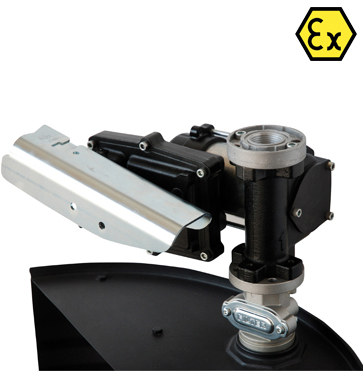

F00372020Piusi EX50 ATEX Pump 12v c/w Drum Connector and Nozzle Switch

Max flow (lpm) – 50

12v

Duty Cycle (min) – 30 on/60 off

2700rpm

17 amps current

Inlet – 1" F BSP

2” drum connector

Nozzle switch

Petrol, kerosene and diesel

£507.30 ex. VAT
F00373000Piusi EX50 ATEX Pump 230v

Max flow (lpm) – 50

230v

Duty Cycle (min) – 30 on/60 off

2700rpm

Inlet – 1” F BSP Flanged

Petrol, kerosene and diesel

£521.95 ex. VAT
F00374020Piusi EX50 ATEX Pump 230v c/w Drum Connector andNozzle Switch

Max flow (lpm) – 50

230v

Duty Cycle (min) – 30 on/60 off

2700rpm

Inlet – 1" F BSP

2” drum connector

Nozzle switch

Petrol, kerosene and diesel

£555.95 ex. VAT

Product Accessories

CodeAccessoryPrice
F17163000

Drum Connector c/w Filter & Valve

2" M BSP drum connection

1" F BSP outlet

Integrated filter

Integrated valve

Diesel, kerosene, oil, gasoline

£57.05 ex. VAT
F17996000

ATEX Flexible Cable Gland

£20.55 ex. VAT
F18156000

ATEX Coduit Cable Gland

£27.20 ex. VAT
F008934020

Piusi Metal Telescopic Downtube (1100mm)

1" M BSPT Drum Connection

Max length - 1100mm

Suitable for flammable liquids including petrol, kerosene and diesel

£38.95 ex. VAT
F008934010

Piusi Metal Telescopic Downtube (1800mm) c/w 2" Drum Connector and Valve

Max length - 1800mm

2" Drum connector and valve

Suitable for flammable liquids including petrol, kerosene and diesel

£135.15 ex. VAT

Scroll left and right to view table

What makes this model a portable fuel transfer pump?

This refuelling pump is powered by connecting it to a 12 volt or 24 volt battery (often on a vehicle). As it does not rely on being plugged into a mains power socket, it can be moved to wherever it is required, making it a mobile solution. Consequently, it is commonly used in off-road applications such as in agriculture, mining, motor car racing and forestry.

I need a nozzle and flow meter, which is suitable for use with this diesel fuel transfer pump?

When picking a suitable nozzle and flow meter to go with your pump, you need to make sure they are compatible with the fluid you’re pumping and that it can cope with the flow rate your pump will be working at.

The EX50 is an ATEX approved pump for diesel, petrol and kerosene with a flow rate of 50lpm.

Suitable NozzlesSuitable Flow Meters
Self 2000 PetrolATEX K24
Piusi ATEX AutoATEX K33
ZVA Slimline

Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.

Apply for a credit account today to receive our exclusive benefit for trade customers only.
