About the product

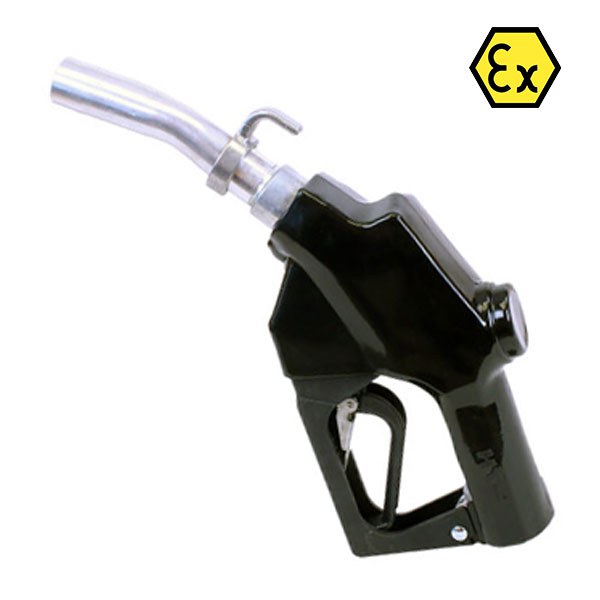

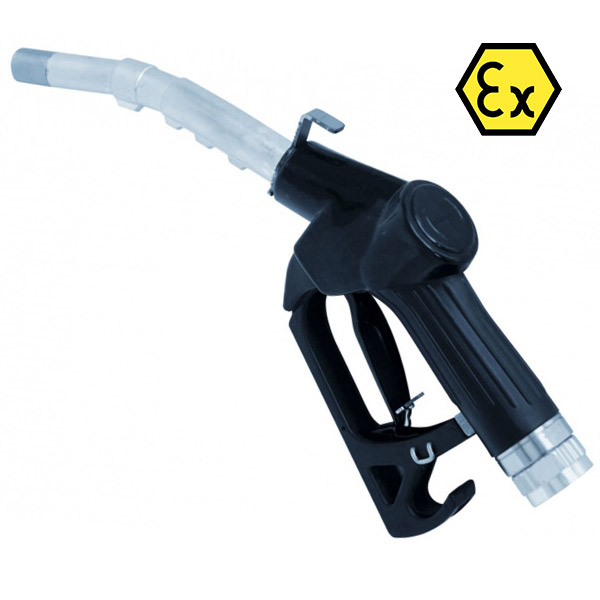

The Piusi Automatic ATEX Fuel Nozzles have been specially designed for the safe dispensing of diesel, petrol or kerosene in flammable environments thanks to its ATEX certification. The automatic shut-off mechanism means that these petrol and diesel nozzles stop further fuel from being released out of the spout once the vehicle tank is full, therefore preventing an overflow. These automatic fuel dispensing nozzles are suitable for use with non-resale pumping systems i.e. where private refuelling takes place. The Automatic 60 ATEX nozzle is commonly used alongside the Piusi EX50 ATEX Pump, and the Automatic 140 ATEX nozzle is for filling large agricultural and plant machinery alongside the Piusi EX140 ATEX Pump.

Other petrol nozzles are available in our range should this model not meet your requirements.

Features of the Piusi Automatic ATEX Fuel Nozzle:

  • Auto shut off fuel nozzle
  • Maximum flow rate: 60-140ltr Per Min
  • Working pressure: 3.5 bar
  • ATEX approved
  • Supplied with 1” F BSP Swivel (A60) and without swivel (A140)
  • For pumping systems only
  • Suitable for diesel, petrol & kerosene
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
613020Piusi Automatic 60 ATEX Fuel Nozzle

Max flow (lpm) – 60

Inlet - 1” F BSP swivel

Spout OD (mm) - 20

Loss of pressure - 0.6 bar @ 60lpm

Working pressure - 3.5 bar

Test pressure - 5.25 bar

Automatic

Petrol, kerosene and diesel

£129.65 ex. VAT
F22675000Piusi Automatic 140 ATEX Fuel Nozzle

Max flow (lpm) – 140

Inlet - 1” F BSP

Spout OD (mm) - 29

Loss of pressure - 1.5 bar @ 140lpm

Working pressure - 3.5 bar

Automatic

Petrol, kerosene and diesel

£191.90 ex. VAT

Can I use this nozzle with a gravity hose kit?

Only manual nozzles can be used within gravity fed installations, as the back pressure required for an automatic nozzle to open is unlikely to ever be achieved under gravity conditions. For this reason, gravity hose kits are always supplied with manual nozzles.
