Apollo Ultrasonic Heating Oil Tank Gauge

Ultrasonic (For oil heating)

From

£158.10

ex. VAT

Fluids

  • O
  • D
  • AB
  • K
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen

About the product

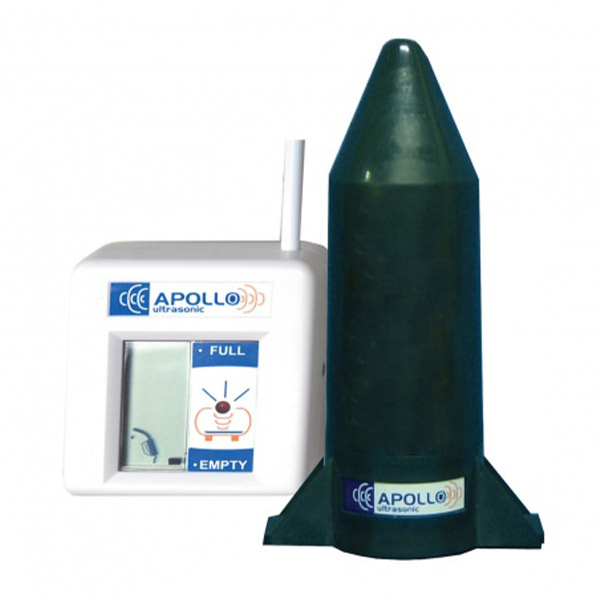

The Apollo Oil Tank Gauge is an easy to retrofit, ultrasonic level indicator generally used as a domestic oil tank gauge. The Apollo is made up of a transmitter that is installed at the tank, and a digital receiver that can be plugged inside the building to conveniently display the tank level without the user having to remember to go outside to check. This oil tank level indicator measures the tank’s contents and transmits the level to the receiver, provided that is within its 200 metre range. The standard version of this oil tank level monitor is suitable for plastic tanks only. However, an adaptor can be purchased as an accessory to make it work on steel tanks.

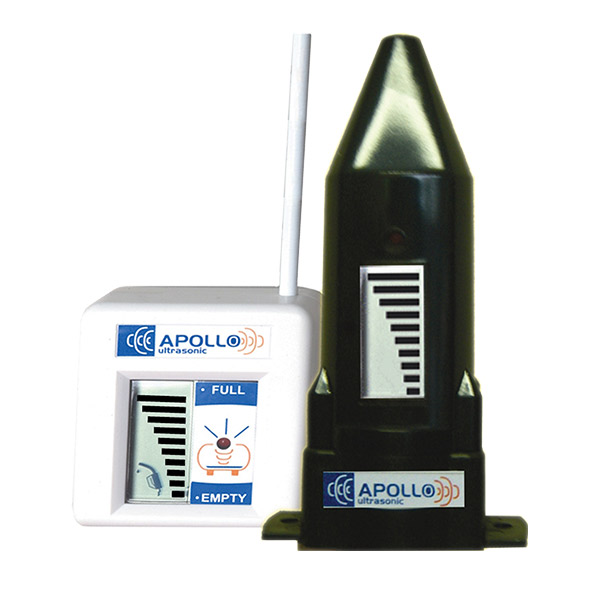

The Apollo Visual heating oil tank gauge version also read levels at the tank locally, which is not available on the standard Apollo gauge. This allows fuel delivery drivers to visually check the oil in the tank gives a visual indication when the tank is nearing its maximum capacity.

Features of the Apollo Ultrasonic Heating Oil Tank Gauge:

  • Ultrasonic oil tank level gauge
  • Transmission distance of 200metres
  • Bar graph level display -10% per bar
  • Receiver: 150-250v, 50/60Hz
  • Transmitter: 3v lithium battery
  • Tank empty red flashing LED
  • Suitable for tanks of 500-3000mm

Product Models and Features

CodeModelDescriptionPrice
APUOLMApollo Standard Heating Oil Tank Gauge - Plastic Tank

Remote Display: LCD - 10 Step

Tank Height (mm): 500-3000

Tank Fitting: 32mm

Any fluids

£158.10 ex. VAT
APUOLMVISApollo Visual Heating Oil Tank Gauge - Plastic Tank

Local Display: LCD - 10 Step

Remote Display: LCD - 10 Step

Tank Height (mm): 500-3000

Tank Fitting: 32mm

Any fluids

£163.15 ex. VAT

Product Accessories

CodeAccessoryPrice
APUOLM02

Apollo Steel Tank Adaptor - 1 1/2" M BSP

£7.25 ex. VAT
APUOLM03

Apollo Visual Steel Tank Adaptor - 1 1/2" and 2" M BSP

£7.25 ex. VAT

Scroll left and right to view table

How does this heating oil tank gauge work?

This heating oil tank gauge uses an ultrasonic level sensor located at the top of the tank which sends out the sound waves in the form of bursts in a downward direction to the fluid in the tank. As soon as the directed sound waves hit the surface of the fluid, sound echoes get reflected and returned to the sensor. The time taken by the sound wave to return is directly proportional to the distance between the electric sensor and the fluid in the tank. This time duration is measured by the oil tank level gauge’s sensor which is then used to calculate the level of liquid in the tank.

What is the difference between the Apollo standard and visual heating oil tank gauge?

Both oil tank level gauges use the same principle of measuring the tank level by using a transmitter fits on top of the tank and the receiver plugs into a socket inside the property to conveniently display the tank level. However, the Apollo Visual model also has a transmitter bar graph display for monitoring the tank reading locally as well as remotely.

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
