MT Profil Heating Oil Tank Gauge

Float Type

From

£20.30

ex. VAT

Fluids

  • Diesel
  • Kerosene
  • HVO/GTL
Afriso Gauges

Browse our Afriso tank gauge range

About the product

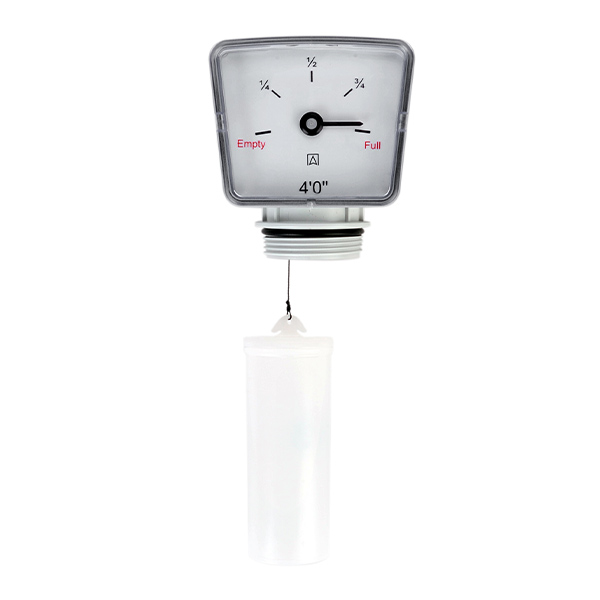

The MT Profil Fuel Tank Float Gauge from Afriso is a small mechanical clock gauge for measuring the tank’s contents by a float that sits on the fuel and goes up and down with the level. Whilst also popular for diesel storage tanks, it is most commonly used as a domestic heating oil tank gauge. The small display shows a scale of Empty 1⁄4, 1⁄2, 3⁄4 and Full for factory calibrated versions, allowing the user to quickly identify the approximate fuel tank level.

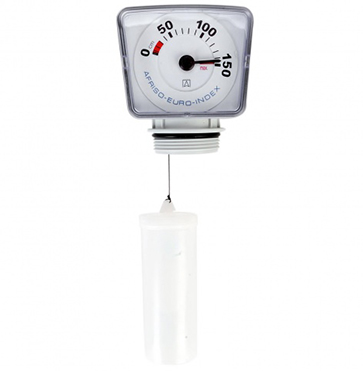

This oil tank level gauge is available in different versions depending upon the specific height of the fuel tank, or there is an 8'0 adjustable version. The 8'0 adjustable version of the MT Profil oil tank float gauge displays the level reading in cm, and has a reversible display which goes to 150cm max on one side, and 250cm max on the other.

These oil tank gauges are supplied as standard with 1 1⁄2” BSP Male for easy fitting on the top of the storage tank or drum. If your tank has a 2" BSP hole, you can fit this gauge by purchasing a 2" x 1 1/2" reducing bush (see accessories table). If your tank has a vent hole, you can connect the gauge by fitting a 2" barrel nipple into the hole and adding a combi vent cap which has a 1 1/2" BSP thread to screw in the gauge (see accessories table) to prevent an additional hole being drilled.

Features of the MT Profil Heating Oil Tank Gauge:

  • Float type oil tank level indicator
  • No power needed
  • Easy to read
  • Top mount via 1 ½” M BSP
  • Stench proof
  • Suitable for diesel, kerosene and biodiesel up to B100

Product Models and Features

CodeModelDescriptionPrice
OAB3001MT Profil 1'6 Fuel Tank Float Gauge

Clock Type Face

Reading Type: Empty 1/4 1/2 3/4 Full

Tank Height (ft/mm) - 1'6/457

Gauge Fitting - 1 1/2" M BSP

Diesel, kerosene and biodiesel

£21.50 ex. VAT
OAB3002MT Profil 2'0 Fuel Tank Float Gauge

Clock Type Face

Reading Type: Empty 1/4 1/2 3/4 Full

Tank Height (ft/mm) - 2'0/610

Gauge Fitting - 1 1/2" M BSP

Diesel, kerosene and biodiesel

£21.50 ex. VAT
OAB3004MT Profil 2'6 Fuel Tank Float Gauge

Clock Type Face

Reading Type: Empty 1/4 1/2 3/4 Full

Tank Height (ft/mm) - 2'6/762

Gauge Fitting - 1 1/2" M BSP

Diesel, kerosene and biodiesel

£21.50 ex. VAT
OAB3003MT Profil 3'0 Fuel Tank Float Gauge

Clock Type Face

Reading Type: Empty 1/4 1/2 3/4 Full

Tank Height (ft/mm) - 3'0/904

Gauge Fitting - 1 1/2" M BSP

Diesel, kerosene and biodiesel

£21.50 ex. VAT
OAB3005Mt Profil 3'6 Fuel Tank Float Gauge

Clock Type Face

Reading Type: Empty 1/4 1/2 3/4 Full

Tank Height (ft/mm) - 3'6/1056

Gauge Fitting - 1 1/2" M BSP

Diesel, kerosene and biodiesel

£21.50 ex. VAT
OAB3304MT Profil 4'0 Fuel Tank Float Gauge

Clock Type Face

Reading Type: Empty 1/4 1/2 3/4 Full

Tank Height (ft/mm) - 4'0/1219

Gauge Fitting - 1 1/2" M BSP

Diesel, kerosene and biodiesel

£20.30 ex. VAT
OAB3305MT Profil 5'0 Fuel Tank Float Gauge

Clock Type Face

Reading Type: Empty 1/4 1/2 3/4 Full

Tank Height (ft/mm) - 5'0/1524

Gauge Fitting - 1 1/2" M BSP

Diesel, kerosene and biodiesel

£21.50 ex. VAT
OAB3309MT Profil 6'0 Fuel Tank Float Gauge

Clock Type Face

Reading Type: Empty 1/4 1/2 3/4 Full

Tank Height (ft/mm) - 6'0/1828

Gauge Fitting - 1 1/2" M BSP

Diesel, kerosene and biodiesel

£21.50 ex. VAT
OAB3308MT 8'0 Fuel Tank Float Gauge

Clock Type Face

Reading Type: cm Display

Tank Height (ft/mm) - 8'0/2438

Gauge Fitting - 1 1/2" M BSP

Diesel, kerosene and biodiesel

£21.05 ex. VAT

Product Accessories

CodeAccessoryPrice
MF6164

2" Plastic Combi Fuel Tank Vent Cap

Body - Plastic

Connection - 2" Slip Over

Top thread - 1 1/2" F BSP

£12.45 ex. VAT
BC8053

BI Bush Reducing 2" M x 1 1⁄2" F

£4.55 ex. VAT
BC9007

Barrel Nipple 2" M x M

For fitting the combi vent to the tank

£4.75 ex. VAT

Scroll left and right to view table

How does this fuel and heating oil tank gauge work?

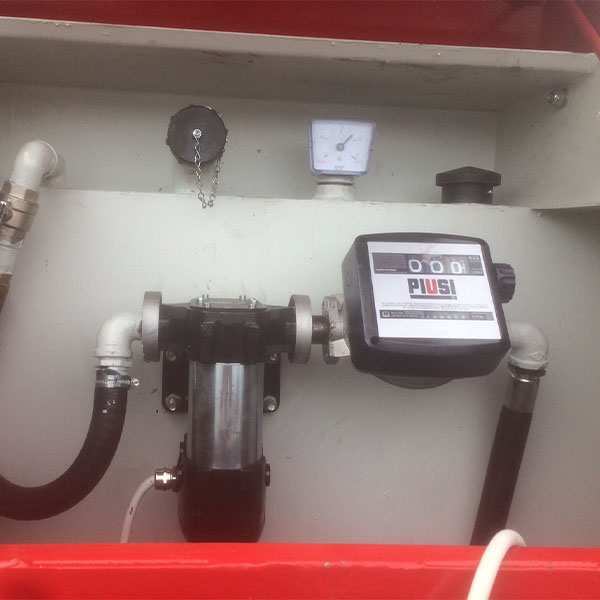

The oil tank float gauge works very simply, with a float that sits in the fuel and goes up and down with the level of the fuel. Oil heating engineers often refers to the process as a float on a rope, a clock gauge or cat and mouse gauge. This heating oil tank level gauge is a perfect solution for both commercial diesel and domestic oil heating tanks for a quick visual level check.

How accurate are oil tank float gauges?

This oil tank float gauge is cost effective and provide a good ideation of the content levels, but it is not as accurate as some of the more sophisticated tank gauges. If a higher level of accuracy is desired you might need to consider some of our more advanced models such as Unitel gauge suitable for both diesel fuel and oil heating, Piusi Ocio fuel tank gauge perfect solution for diesel and Apollo oil heating tank gauge for heating oil.

My tank has a 2" hole, but this heating oil tank gauge is 1 1/2", how do I fit it?

If your tank has a 2" BSP threaded hole, you can fit this gauge by purchasing a 2" x 1 1/2" reducing bush (see accessories table). If your tank has a 2" open vent hole, you can connect the gauge by fitting a 2" barrel nipple into the hole and adding a combi vent cap which has a 1 1/2" BSP thread to screw in the gauge (see accessories table) to prevent an additional hole being drilled.
