Piusi Ocio Electronic Fuel Tank Gauge

Digital (Self Calibrated)

From

£496.65

ex. VAT

Fluids

  • O
  • D
  • W
  • AB
  • HVO/GTL
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

The Piusi Ocio Fuel Tank Gauge is a continuous reading, hydrostatic digital tank level monitoring device designed primarily for commercial diesel fuel tanks. Once calibrated using the specific tank measurements, the Piusi Ocio electronically displays the tank level reading in mm, litre or percentage depending upon the user preference. This fuel tank level gauge allows the user to configure low and high level status alerts, which upon activation causes the LED screen to flash to visually alert the user that the level has been reached for them to take action. It also benefits from two configurable relays for sending the high/low level alert statuses to other equipment e.g. a low level tank alarm for an audiable alert, a remote building management system or to the pump on the tank to turn it off e.g. in day tank filling.

The Piusi Ocio gauge is a versatile fuel tank level indicator suitable for use on vertical cylindrical, horizontal cylindrical and rectangular tanks up to 4m high. Whilst the standard model is designed primarily for diesel, there is an AdBlue™ tank gauge version available and a kit to make the standard Ocio compatible with oil popular in garage and workshop environments. There is also a 4-20ma output model available to allow you to send the level readings to a building management system, whereas the standard model would only send the set high/level alarm statuses to the BMS.

Please note: Tank opening needs to be a minimum 30mm diameter for balance chamber weight; 1" x 1/2" bush required for tube gland - requires min 1" female full bore opening.

If being used with HVO, the gauge should be re-calibrated as per the instruction manual based on it's SG of 0.78 (diesel is 0.84).

Features of the Piusi Ocio Electronic Fuel Tank Gauge:

  • Electronic fuel tank contents gauge

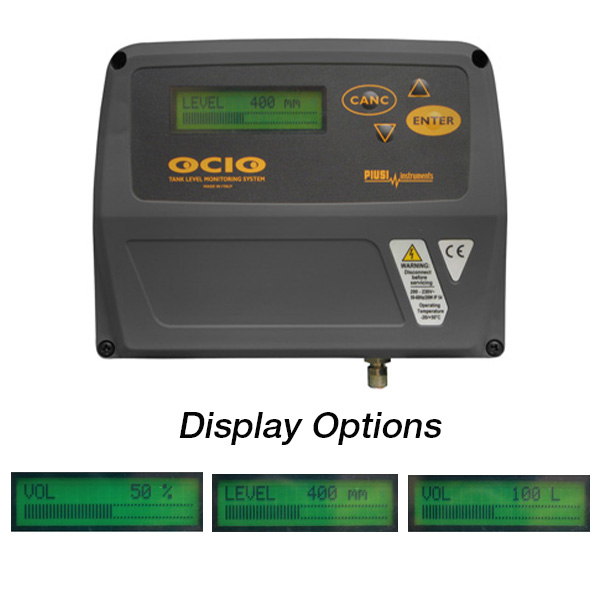

  • %, litre and mm readings

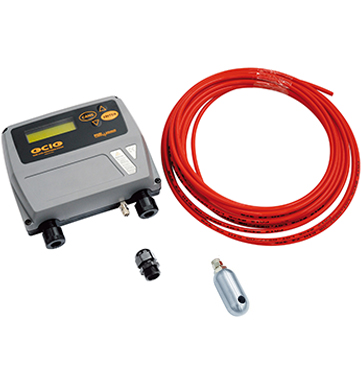

  • Tank probe with 10 metres capillary
  • ½” M BSP balance chamber fitting
  • For tanks between 600-4000mm
  • Accuracy +/-1%
  • High/low level statuses can be set up
  • C/w two relays for connection to other equipment
  • Suitable for diesel, water or AdBlue (depending on model)
  • Oil kit available to add to standard Ocio
  • Optional PC software available (see table)
  • IP54 Rated
  • Can work up to 50m away with extra capillary tubing
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
F0075510DPiusi Ocio Fuel Tank Level Gauge 230v

Reading Type: 0-100%/mm/inches/litres/gal

Tank Height (mm) - 600-4000

Capillary Length (m) - 10

Capillary Type - 6 x 4 Rilsan PA12

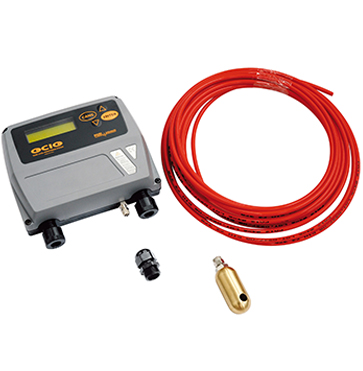

Brass Balance Chamber Weight

Balance Chamber Fitting: 1/2" M BSP

Max Working Temperature: -20ºc/+50ºc

Diesel, water, windscreen and oil if additional oil kit is purchased

£496.65 ex. VAT
F0075501BPiusi Ocio Fuel Tank Level Gauge 110v

Reading Type: 0-100%/mm/inches/litres/gal

Tank Height (mm) - 600-4000

Capillary Length (m) - 10

Capillary Type - 6 x 4 Rilsan PA12

Brass Balance Chamber Weight

Balance Chamber Fitting: 1/2" M BSP

Working Temperature: -20ºc/+50ºc

Diesel, water, windscreen and oil if additional oil kit is purchased

£532.60 ex. VAT
F00755140Piusi Ocio AdBlue Tank Level Gauge 230v - AdBlue™

Reading Type: 0-100%/mm/inches/litres/gal

Tank Height (mm) - 600-4000

Capillary Length (m) - 10

Capillary Type - 6 x 4 Rilsan PA12

Stainless Steel Balance Chamber Weight

Balance Chamber Fitting: 1/2" M BSP

Working Temperature: -20ºc/+50ºc

Urea

£530.95 ex. VAT
F00755160Piusi Ocio Fuel Tank Level Gauge 230v - 4-20ma

Reading Type: 0-100%/mm/inches/litres/gal

Tank Height (mm) - 600-4000

Capillary Length (m) - 10

Capillary Type - 6 x 4 Rilsan PA12

Brass Balance Chamber Weight

Balance Chamber Fitting: 1/2" M BSP

Max Working Temperature: -20ºc/+50ºc

Diesel, water, windscreen and oil if additional oil kit is purchased

£538.75 ex. VAT

Product Accessories

CodeAccessoryPrice
F12939000

Ocio Oil Kit - For oil up to 2000cSt

£46.10 ex. VAT
F00755S00

Piusi Ocio Desk - 4 - Multi Tank

£1,076.20 ex. VAT
F00755S20

Piusi Ocio Desk - 8 - Multi Tank

£1,422.10 ex. VAT
R1391300ACTS

50m Capillary Tubing

£166.90 ex. VAT
F00755S30

Piusi Ocio Desk - 12 - Multi Tank

£1,762.55 ex. VAT
F00755S10

Piusi Ocio Desk - Single Tank

£615.05 ex. VAT
F00755G30

Piusi Ocio GSM Quad Band

£1,419.25 ex. VAT
F15610000

Stainless Steel Nut For Stainless Steel Weight

£30.85 ex. VAT
BCS1056

S/S Hex Bush Reducing 1" x 1/2" M x F

For connecting the balance chamber fitting to a 1" hole

£4.40 ex. VAT
BC8073

BI Bush Reducing 1 1⁄2" M x 1⁄2" F

£2.90 ex. VAT
BF2010

Brass Hexagon Bush 1" M x 1⁄2" F

For Fuel Ocio Gauge

For connecting the balance chamber fitting to a 1" hole

£2.25 ex. VAT
R13386

Piusi Ocio Brass Weight (R13386000)

£55.20 ex. VAT
F15611000

Piusi Ocio Stainless Steel Weight

£49.95 ex. VAT

Scroll left and right to view table

Can I set the Ocio fuel tank gauge to audibly alert me of a high or low level?

You are able to set high and low levels on the Ocio gauge, which will provide a visual alert (flashing LED screen) when these levels are reached. The Ocio fuel tank contents gauge comes with two relays that can be connected to the probe inputs on a fuel tank alarm, which will then sound when the level status is activated.

Can I connect the Ocio fuel tank contents gauge to my building management system?

Yes, but what information you want the Ocio gauge to send to your BMS will affect the version you need. If you simply want the Ocio to inform your BMS that the set high/low levels have been reached then you can buy the normal version which has two output relays. If you want to be able to read in litres how much fuel is left in your tank from your BMS, then you need to buy the 4-20mA version of the Ocio.

Can I use the Ocio gauge to control turning my pump on/off?

Yes. A typical example of this is where you have a day tank that is filled from a larger back up tank. By setting the low/high level statuses, the relay signals could automate the pump to run when the tank contents drop to the set low level, and then turn off the pump when the set high level is reached. You could also use it to turn your pump off when it reaches the low level to prevent the pump from running dry.

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
