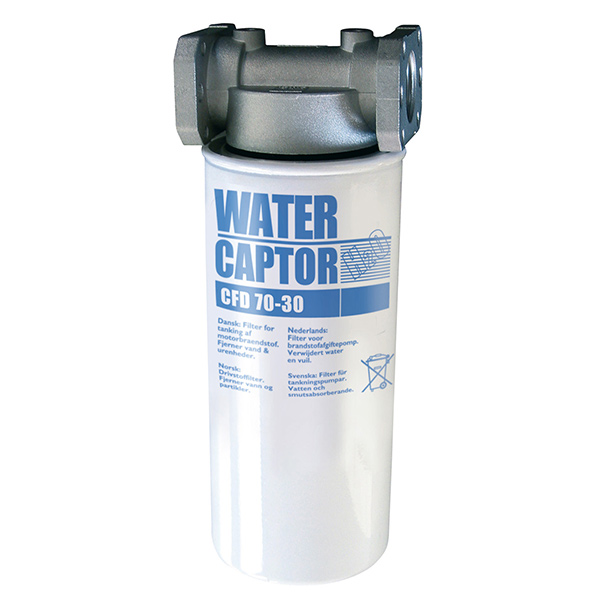

Piusi CFD 70-30 Water Captor Fuel Tank Filter

70 Ltrs Per Min (30 micron)

Price

£134.25

ex. VAT

Fluids

  • P
  • D
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

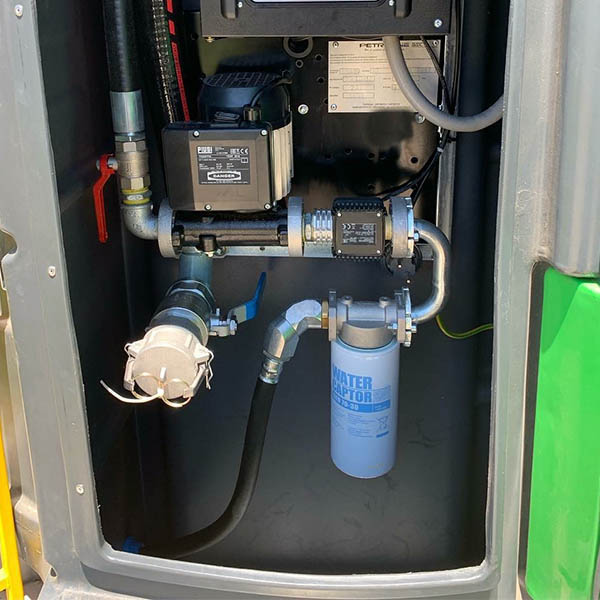

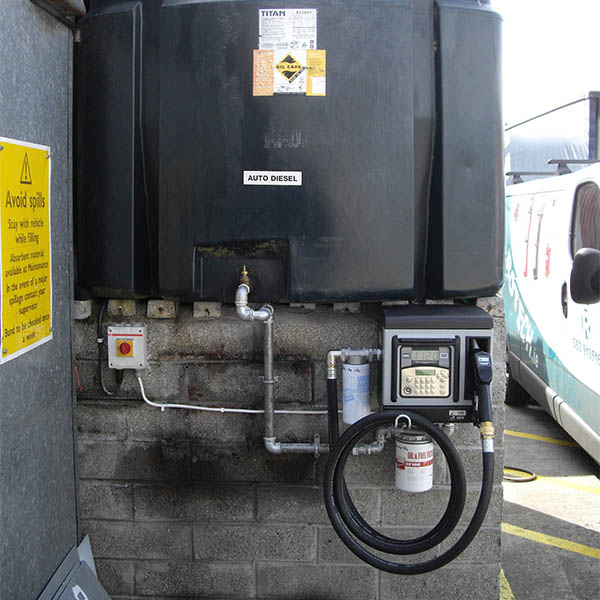

The Piusi CFD 70-30 Water Captor Fuel Tank Filter removes both water and particles out of diesel to a micron rating of 30. This diesel storage tank filter can be installed before or after the pump, and has a spin on cartridge, which makes it easy to be replaced when it starts to get full. Available in the accessories table if the Piusi CFD 70-30 replacement filter element.

Features of the Piusi CFD 70-30 Water Captor Fuel Tank Filter:

  • 30 micron cannister filter
  • Maximum flow rate of 70litres Per Min
  • 1” F BSP Flanged Inlet/Outlet
  • 1"-12 F UNF Filter Thread
  • Suitable for diesel and petrol
  • Includes 1 x filter head and 2 x filter element
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
F00611A00Piusi CFD 70-30 Water Captor Fuel Filter Complete

30 Micron Particle and Water Filter

Paper Filter

Application - Pump

Max Flow Rate (lpm) - 70

Pressure (bar) - 3.4

Inlet/Outlet - 1" F Flanged BSP

Filter Thread - 1"-12 F UNF

Diesel and Petrol

£134.25 ex. VAT

Product Accessories

CodeAccessoryPrice
CTH1801

Replacement Head - up to 70 (lpm)

£31.15 ex. VAT
F00611010A

Piusi Water Captor 70l Element Only

£50.55 ex. VAT

Scroll left and right to view table

Why do I need a fuel tank filter?

The increasing bio-content in today’s diesel means that the fuel in storage tanks often contains small, but problematic water levels which can cause a nasty sludge to appear. Water contamination is usually one of the main reasons for costly damage to vehicle engines and reduced fuel efficiency, but an effective water filter can be one of the best ways to prevent this. The water tank filter removes any free water from the dispensed fuel, which protects your vehicle engine from failure. Whiles this filter can get a range of particles, you should also consider a particle fuel filter for removing particles down to finer microns. You might want to consider Piusi CF60 particle tank filter as a solution for additional fuel filtration.

How long should a fuel filter last before I need to replace the element?

Unfortunately, there is no exact answer to this question as it all depends on the level of contamination in your fuel. The dirtier the fuel in your tank, the quicker the filter will get full. We advise that you always have a spare filter element on site so that you experience no downtime if your filter is full and blocks.

If you’re experiencing your filter elements blocking a lot quicker than usual, then this may be down to changes in the bio content of diesel. Read our article to find out more. In this case, we recommend considering fuel tank water absorber such as Aquafighter that removes both free and emulsified water directly from the fuel tank.

Why is it important to know your pump flow rate when choosing your filter?

If your pump is too fast for the maximum flow rate of the filter, the filter will keep blocking leaving you unable to dispense. This may also result in the pump running in partial bypass, causing premature wear on the pump vanes and windings. In extreme cases where you have say a 50lpm filter being used with a 150lpm pump, it may even blow the filter element inside rendering it useless. Therefore, if your pump is 70lpm, your filter must be able to cope with at least that.

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
