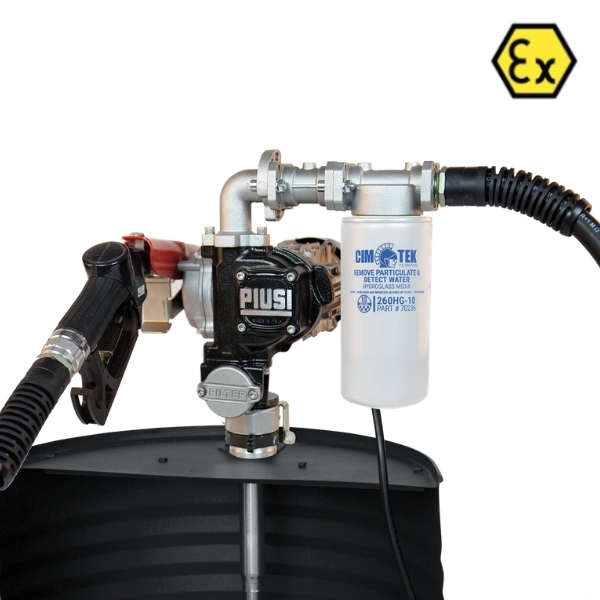

Piusi Panther EX56 ATEX Fuel Transfer Drum Pump Kit
56ltrs Per Min (230v/240v)
From
£1,020.00
ex. VAT
Fluids
- Diesel
- Kerosene
- Petrol
- HVO/GTL
The Official UK agent of Piusi pumps & fuel dispensing equipment
About the product
The Piusi Panther EX56 Drum Pump Kit is the latest addition to Piusi’s range of fuel transfer pumps, combining the well-established Panther pump design with an ATEX-approved AC motor. Supplied as a complete drum-mounted kit, it is suitable for transferring petrol, kerosene, diesel and HVO in Zone 1 environments.
Unlike the previous Piusi EX50, the EX56 uses an AC motor that is suitable for continuous operation, making it suitable for longer dispensing periods and higher-volume fuel transfers. It also provides an increased flow rate of up to 56 litres per minute.
The pump is self-priming and features a durable cast iron body, providing a robust construction for regular use. As an ATEX-approved pump, the Panther EX56 complies with the relevant European explosion protection requirements and is certified to ATEX II2 G Ex db h IIB T4 Gb for use in Zone 1 applications.
The standard drum pump kit includes a 2" drum connector and 1100mm telescopic downtube, ATEX-rated Auto 60 nozzle, 4m delivery hose and a Cim-Tek Ultimate Defense® Hydroglass water filter. A second version is also available with the addition of a Piusi K33 ATEX Flow Meter, allowing the quantity of fuel dispensed to be measured.
A flexible cable gland is also available separately (code F2702400A) and can be found in the accessories table below.
Features of the Piusi Panther EX56 ATEX Fuel Transfer Drum Pump Kit:
- Self-priming explosion proof pump
- 2" drum connector for drum mounting
- 1100mm telescopic downtube
- Automatic nozzle c/w 4m delivery hose
- Cim-Tek Ultimate Defense® Hydroglass water filter

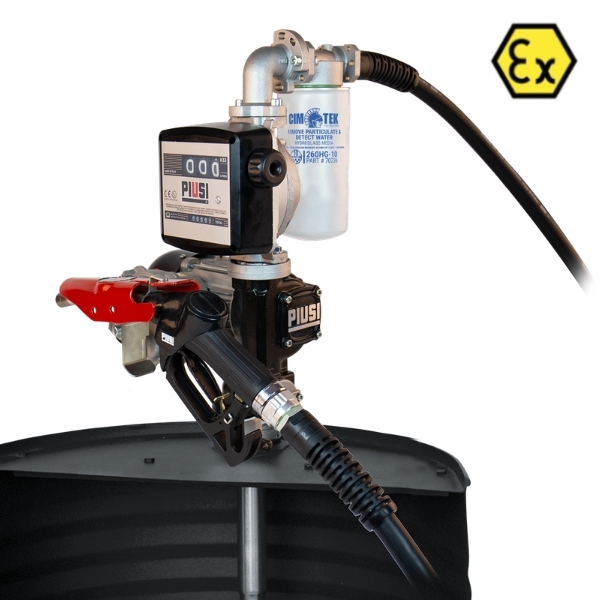

- Version available with K33 flow meter (CTS1019)
- 230v/240v (model depending)
- Continuous running
- 1” F BSP inlet/outlet ports
- Thermal motor overload protection
- Cast iron pump body with anti-corrosion paint
- Protection grade: IP55
- For diesel, petrol, Kerosene, HVO/GTL, Aspen 2/4
- ATEX Zone 1 certified II2 G Ex db h IIB T4 Gb
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
Product Models and Features
| Code | Model | Description | Price | |
|---|---|---|---|---|
| CTS1017 | Piusi Panther EX56 ATEX Fuel Transfer Drum Pump Kit | Max flow (lpm) – 56 230v Continuous running 2” drum connector 1100mm telescopic down tube Auto nozzle 10 micron water filter Petrol, kerosene, diesel HVO/GTL, Aspen 2/4 | £1,020.00 ex. VAT | |
| CTS1019 | Piusi Panther EX56 ATEX Fuel Transfer Drum Pump Kit c/w K33 Flow Meter | Max flow (lpm) – 56 240v Continuous running 2” drum connector 1100mm telescopic down tube Auto nozzle 10 micron water filter K33 flow meter Petrol, kerosene, diesel HVO/GTL, Aspen 2/4 | £1,419.00 ex. VAT |
Product Accessories
| Code | Accessory | Price | |
|---|---|---|---|
| F2702400A | Panther EX Cable Gland | £32.40 ex. VAT | |
| F008934020 | Piusi Metal Telescopic Downtube (1100mm) 1" M BSPT Drum Connection Max length - 1100mm Suitable for flammable liquids including petrol, kerosene and diesel | £41.56 ex. VAT | |
| F008934010 | Piusi Metal Telescopic Downtube (1800mm) c/w 2" Drum Connector and Valve Max length - 1800mm 2" Drum connector and valve Suitable for flammable liquids including petrol, kerosene and diesel | £144.12 ex. VAT | |
| R14861000 | Cim Tek 70236 Fuel Filter Element Only 10 Micron Particle and Water Filter Application - Pump Max Flow Rate (lpm) - 70 1"-12 F UNF | £82.49 ex. VAT |
Scroll left and right to view table
What is an ATEX pump?
When dispensing petrol, kerosene or diesel in a zone one area, specially certified ATEX pumps need to be used. These are safe for use with lower flash point liquids. Available in our ATEX approved petrol transfer pump range are both mains powered and 12v fuel transfer pumps, that are specified for zone one applications. We also stock manual hand petrol transfer ATEX pumps for a cost effective solution.
What applications can ATEX pumps be used for?
Our ATEX pumps are ideal for dispensing flammable liquids in applications such as: race/rally motorsport, quad/motorbikes, ground maintenance e.g.: lawnmowers, forest tools, golf course buggies, boats/leisure craft e.g.: jet skis, and refilling heating oil tanks when tanker access is difficult.
What are the benefits of buying Piusi products from the UK official Piusi distributor and agent?
Being Piusi’s official UK agent and distributor means we have the most competitive prices, the best stock holdings, technical product advice and after sale support for all their products, as well as regular Piusi distributor training at their factory in Italy.
Why should I buy Piusi pumps and products?
As the UK official Piusi distributor and agent, we are the first port of call for any Piusi pump and associated fuel dispensing equipment. Piusi is the original, quality, Italian manufacturer of diesel, light oil and AdBlue handling products, known worldwide for their reliability and longevity.
Being the only importer in the UK, we are the Piusi supplier you can rely on to have the best stock holdings, technical product advice and after sale support with regular Piusi distributor training at their factory in Italy. For more information about Piusi pumps or for trade pricing if you would like to become a distributor, please contact our technical sales department on 0121 351 4445.
Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.
Apply for a credit account today to receive our exclusive benefit for trade customers only.
