CTS Fuel Tank Fill Point Cabinet

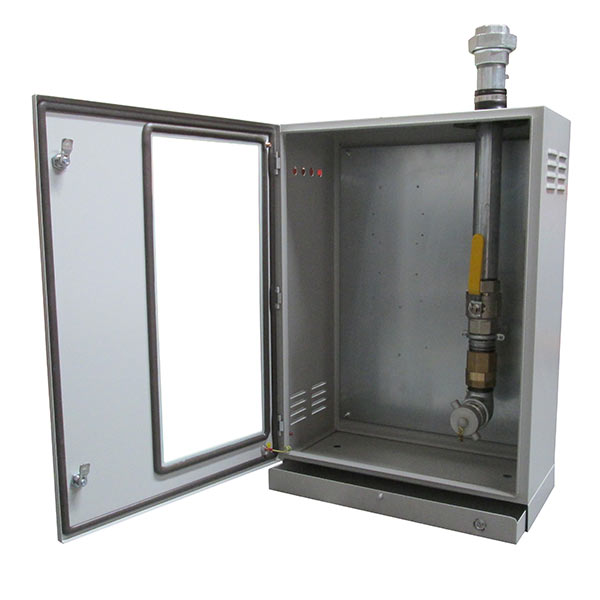

The CTS Fuel Tank Fill Point Cabinet is designed to securely lock away an oil or diesel storage tank's filling point from tampering and theft without making it difficult to view tank level readings. The unit comes complete with top entry 2” fuel tank fill point, lever ball valve for isolation and filler cap to prevent dripping, as well as a removable drip tray with sight glass and easy grip handle, which can be opened even when the cabinet is locked to allow convenient emptying/cleaning at all times.

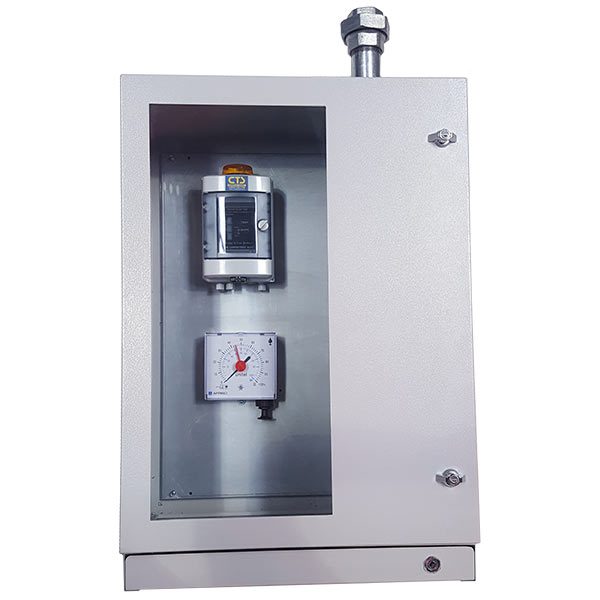

The benefit of the CTS diesel and oil fill point cabinet over alternatives on the market is its partial glass front. If an installed gauge is showing a low fuel level, anyone at the tank can identify that a fuel delivery is required even when the cabinet is closed. On other models with a full metal door this would go undetected until the cabinet was next opened, which could result in unexpectedly running out. As the glass front is only partial, the tank fillpoint is still secured out of sight and reach behind the lockable cabinet door. It is positioned so that if the glass is broken, no syphoning fitting can be attached.

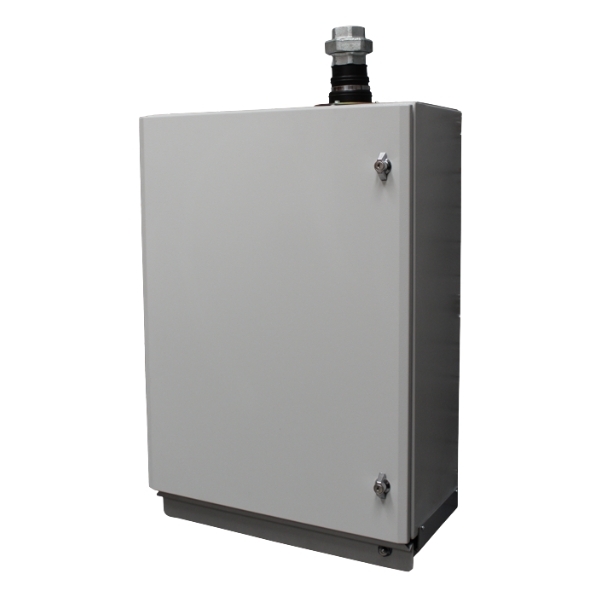

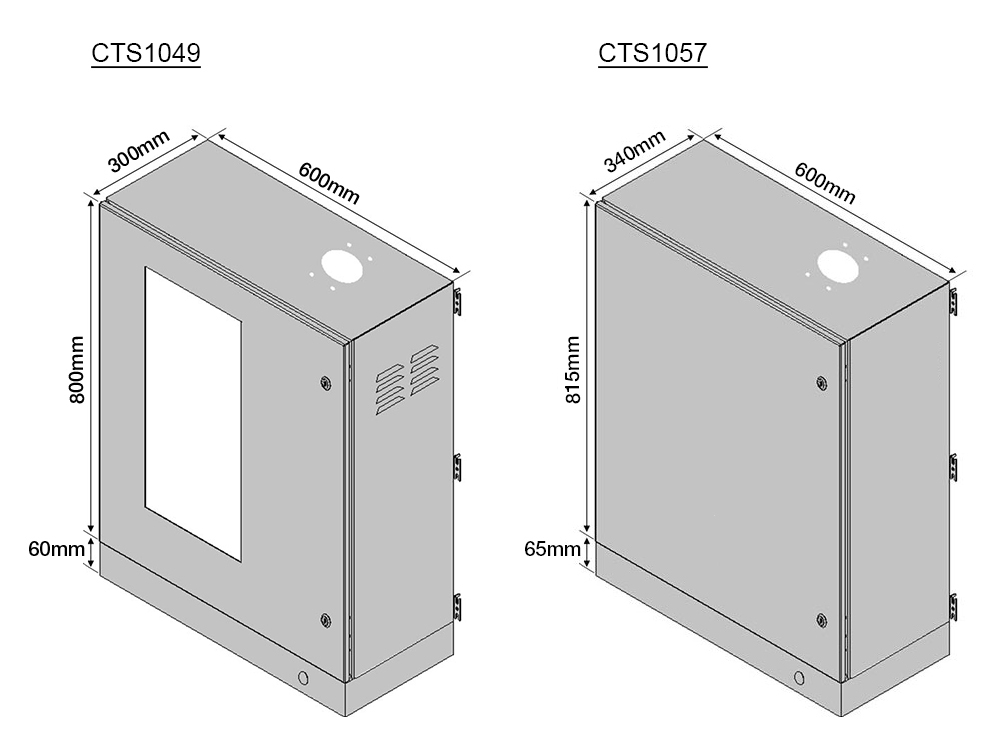

For applications where complete concealment of the fill point is preferred, a fully enclosed version of the cabinet is also available. This alternative provides the same secure housing for the filling point, without the partial glass front. This version does not come pre-drilled, and has a slightly deeper drip tray to capture leaks. See product table and/or dimensional drawing for further information.

The diesel and oil fill point cabinet is designed to be installed onto the side of a steel storage tank, an external bund that the fuel tank sits on/inside or a wall in remote filling point scenarios. It is often used as a remote fill cabinet in oil heating installations where the tank is not easily accessed by the fuel delivery driver.

Please note: Alarms and gauges are to be purchased separately to allow for bespoke configurations. The partial glass front fill point cabinet back plate has pre-threaded mounting holes for the simple installation of multiple alarms and gauges. Whereas the concealed fill point cabinet does not come pre-drilled, and instead has hole drilling points in the internal backplate as drilling guides.

For more information on how the CTS tank fillpoint cabinet provides the user with convenience and security, read our article.

• Lockable painted sturdy steel cabinet
• Top entry 2” fill point & filler cap
• Filling point is secured behind door out of sight & reach
• Lever ball valve, check valve & union
• Removable drip tray with sight glass
• Vents to prevent vapour build up
• 4 cable gland cut outs for fixing power cables
• Brackets for easy tank/wall mounting
• Version with partial glass front for alarm/gauge visibility (CTS1049)
• Version with enclosed front for complete concealment (CTS1057)
• CTS1049 has pre-threaded mounting holes for alarm/gauge
