High, low and/or bund

From

£299.75

ex. VAT

Fluids

  • Oil
  • Diesel
  • Water
  • AdBlue
  • HVO/GTL
CTS

In-house designed products from CTS.

About the product

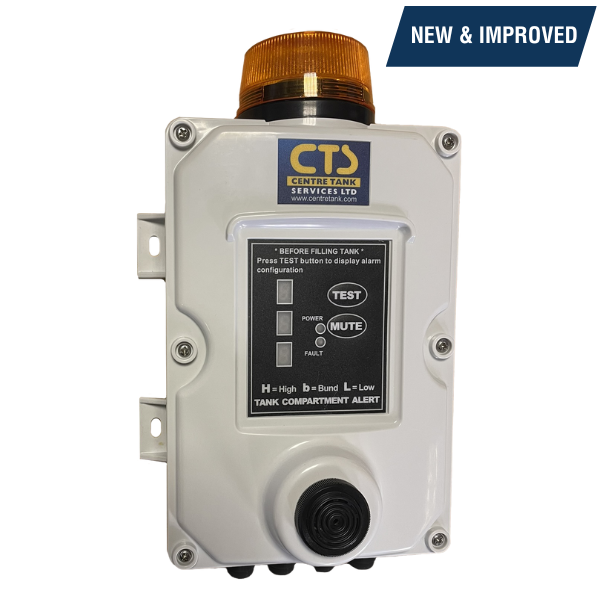

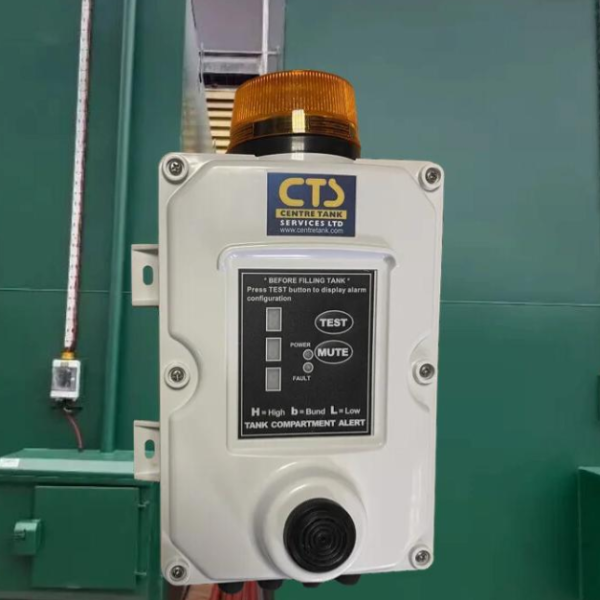

The CTS Mains Operated Multi-Compartment Fuel Tank Alarm system has three functions; to detect and warn of a tank overfill, a high/low liquid level and a bund leak. If this fuel tank alarm identifies any of these issues, the channel in question will light up on the alarm’s screen, combined with an alarm sounder and flashing orange strobe, which provides the user with a clear warning of the activated tank state. Each channel can be configured in any of the three functions High, Low or Bund, enabling the complete customisation of these fuel tank alarms based upon the user's requirements with a very simple set of electrical jumpers.

Options are available complete with three relays, to allow external equipment to be connected to each channel of the tank level alarm such as building management system for remote monitoring. This level and bund alarm also has the additional feature of controlling the pump from the relays (if fitted). When the fuel storage tank contents are 'low', the pump switches on and stays on until 'high' is reached. This is commonly used for ensuring generator day tanks do not run empty.

The CTS Mains Fuel Tank Level Alarm box has undergone a redesign for the convenience of the tank manufacturer/installer. It benefits from the same functionality the market knows and loves, but now with external mounting lugs for installation without opening up the tank alarm box, captive screws to prevent accidentally dropping and losing them in the bund and improved cable gland positioning.

If you require a tank level alarm for something other than diesel or light oil, we also supply a water and chemical alarm probe, and a high viscosity oil tank level probe – which is also suitable for AdBlue as well as high viscosity oils. Please see the accessories table for more information.

Please note: Codes SWS5000 and SWS5001 do not come complete with probes. Please view the accessories table to select the combination you need. All cables must be free of electrical noise

Features of the CTS Mains Multi-Compartment Fuel Tank Alarm:

  • For any combination of high, low, bund
  • Weatherproof IP55 enclosure with external mounting lugs
  • LED channel lights up to indicate the issue
  • 85db sounder
  • Flashing orange strobe
  • Test and mute functions
  • Automatically reversed float logic for 'low channels'
  • Accepts multiple voltages of 110v, 230v, 12v and 24v
  • Option available with 3 relays
  • Options with probe/s available - see table
  • SWS5000 and SWS5001 not supplied with probes - select from accessories table
  • 95m max probe length
  • Enclosure has rain drip guard above panel and around sounder
  • Gland plugs supplied to prevent water ingress in unused cable glands

Product Models and Features

CodeModelDescriptionPrice
SWS5000CTS Mains Multi-Compartment Fuel Tank Alarm Box Only

Box only - select probes from accessories table

Multiple input voltages

Orange strobe

85dB sounder

£299.75 ex. VAT
SWS5001CTS Mains Multi-Compartment Fuel Tank Alarm Box Only c/w 3 Relays

Box only - select probes from accessories table

Multiple input voltages

Orange strobe

85dB sounder

3 x Relays (C,NO,NC @ 230v 8A)

£341.50 ex. VAT
SWS5009CTS Mains Multi-Compartment Fuel Tank Alarm Box c/w Single Probe & 3 Relays

Alarm Box c/w Single Probe

Multiple input voltages

Orange strobe

85dB sounder

3 x Relays (C,NO,NC @ 230v 8A)

£401.95 ex. VAT
SWS5010CTS Mains Multi-Compartment Fuel Tank Alarm Box c/w Single Probe, Double Probe & 3 Relays

Alarm Box c/w Single & Double Probes

Multiple input voltages

Orange strobe

85dB sounder

3 x Relays (C,NO,NC @ 230v 8A)

£507.70 ex. VAT

Product Accessories

CodeAccessoryPrice
SWS1035

Single Fuel Tank Alarm Probe - For High Level, Low Level or Bund

Alerts - High, low or bund

c/w 5m cable and 1.5" brass cap

For diesel, fuels, light oils and water

£62.95 ex. VAT
SWS1035/2

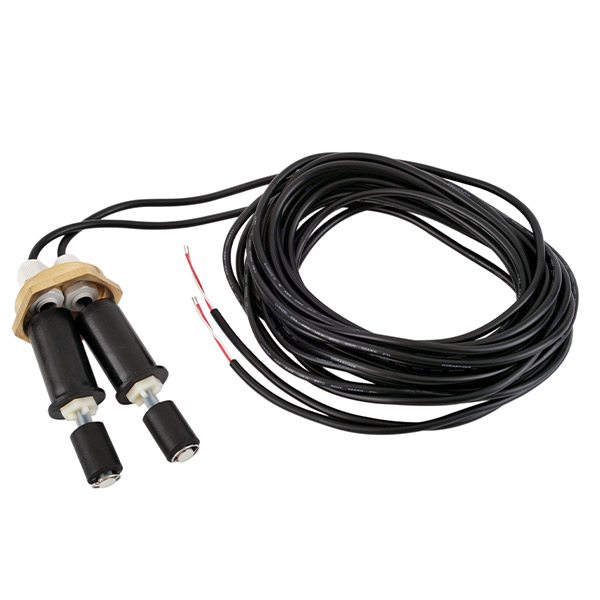

Double Fuel Tank Alarm Probe - For high and low level

Alerts - High and Low
2 x c/w 5m cable and 1.5" brass cap
For diesel, fuels, light oils and water

£118.30 ex. VAT
SWS1038

High Viscosity Fluid Tank Level Alarm Probe

Alerts - High or Low
c/w 5m cable and 1.5" brass cap
For viscous fluids and waste oils

£120.65 ex. VAT
SWS1040

Water & Chemical Tank Level Alarm Probe

Alerts - High or Low
c/w 5m cable and 1.5" polypropylene cap
For water and select chemicals (please check compatibility)

£61.15 ex. VAT
SWS1038AB

AdBlue Tank Level Alarm Probe

Alerts - High or Low
c/w 5m cable and 1.5" plastic cap
For AdBlue

£112.50 ex. VAT
SWS1036

Plastic Tank Kit - For Single Tank Alarm Probe

Kit for using a probe on a plastic rather than steel tank

Steel, flat, round plate

1 x Grommet

£12.35 ex. VAT
SWS1037

Plastic Tank Kit - For Double Probe

Kit for use on a plastic rather than steel tank

Steel, flat, round plate

2 x Grommet

£16.25 ex. VAT
SWS1111

Extra Alarm Cable Per Metre

£7.10 ex. VAT

Scroll left and right to view table

Can I buy a double probe if I want my tank alarm to monitor a level and bund alert?

No! A double probe has two floats on the same cap that is fitted through a single hole in the tank. As the bund is the tank’s outer skin, it is essentially a separate container to the inner tank and a double probe cannot sit within both.

A double probe is therefore only suitable for monitoring two level alerts e.g. high/low, high/high, low/low. A single tank alarm probe is always required for the bund alert.

Why do I have to buy alarm probes separately?

There are so many variations that someone may want both in terms of the number of alerts the want to monitor, and the fluid they want the tank alarm for. Rather than display a long list of all the configurations, it is easier to offer the box alone and allow you to choose what probes you want from the accessories table.

My office is a little way away from the tank, can I connect your tank alarms to a remote device?

All of our fuel tank level alarms have a 90dB sounder, which is pretty loud. However, if you are still concerned, the CTS mains powered tank alarms are available with a relay, which can connect to the probe input on another alarm. You can position the second alarm up to 100m away from the other, inside your office for example, so that it acts as a remote warning device.

The two alarms will act independently, meaning that if your driver mutes the one at the tank without telling you, the other will continue to sound until you choose to mute it.

Can I use the tank alarms to control turning my pump on/off?

If you opt for a version of our CTS tank alarm with relays, then yes! A typical example of this is where you have a day tank that is filled from a larger back up tank. By using a high and low level probe, the relay signals could automate the pump to run when the tank contents drop to the set low level, and then turn off the pump when the set high level is reached. You could also use it to turn your pump off when it reaches a low level to prevent the pump from running dry.

Can I connect the tank alarm to my building management system?

If you choose the version of our CTS multi channel tank alarm with three relays, then yes! You can use the relay outputs to inform your BMS whenever the set high, low or bund alert scenarios have been activated.
