CTS Battery Multi-Compartment Fuel Tank Alarm
High, low and/or bund
Select image to zoom
From
£257.40
ex. VAT
Fluids
- O
- D
- W
- AB
- HVO/GTL
- AdBlue
- Air
- Antifreeze
- Any
- Chemical
- Diesel
- Grease
- Jet Fuel
- Kerosene
- Oil
- Petrol
- Rapsoil
- HVO/GTL
- Water
- Windscreen
- B2
In-house designed products from CTS.
About the product
The CTS Battery Operated Multi-Compartment Fuel Tank Alarm system has three functions; to detect and warn of a fuel storage tank overfill, a high/low liquid level and a bund leak. If the tank level alarm identifies that any of these states have occurred, the channel in question will illuminate on the alarm’s screen, and a loud siren and flashing red light will go off. When its battery is low, this level bund alarm will sound a single beep every minute to alert the user of this.
Thanks to being battery powered, these fuel tank alarms are designed to be installed on isolated or portable systems, and each channel can be configured allowing the alarm to be customised by the installer. Options are available that come with three relays, allowing additional equipment to be connected to the tank level alarm such as larger alarm systems or building management systems for remote monitoring.

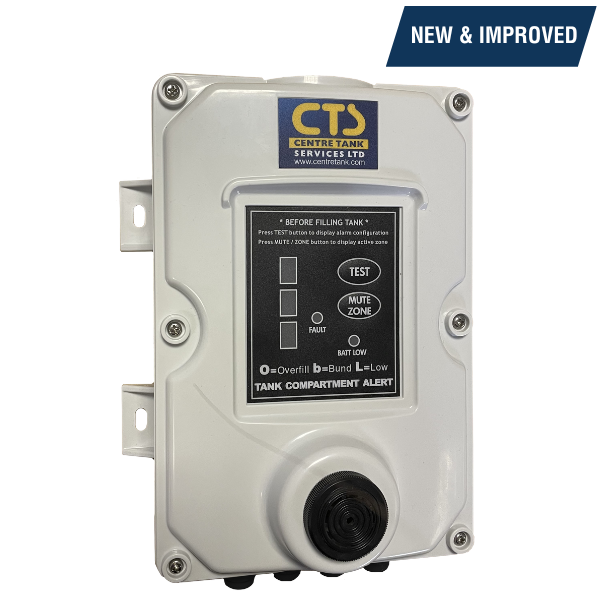

The CTS Battery Fuel Tank Level Alarm box has undergone a redesign for the convenience of the tank manufacturer/installer. It benefits from the same functionality the market knows and loves, but now with external mounting lugs for installation without opening up the tank alarm box, captive screws to prevent accidentally dropping and losing them in the bund and improved cable gland positioning.
If you need a tank level alarm for a fluid other than diesel or light oil, also available are a water and chemical alarm probe, and a high viscosity oil tank level probe – which is also suitable for AdBlue as well as high viscosity oils. Please see the accessories table.
Please note: Codes SWS4000 and SWS4001 do not come complete with probes. Please view the accessories table to select the combination you need. All cables must be free of electrical noise.
Features of the CTS Battery Multi-Compartment Fuel Tank Alarm:
- For any combination of high, low, bund
- Weatherproof IP55 enclosure with external mounting lugs
- LED channel lights up to indicate the issue
- 85db sounder
- Beeping alert of low battery
- Test and alarm mute functions
- Automatically reversed float logic for 'low channels'
- 6 x 9v AA Batteries
- Option available with 3 relays
- Options with probe/s available - see table
- SWS4000 and SWS4001 not supplied with probes - select from accessories table
- 45m max probe length
- Rain drip guard above panel and around sounder
- Gland plugs supplied to prevent water ingress in unused cable glands
Product Models and Features
| Code | Model | Description | Price | |
|---|---|---|---|---|
| SWS4000 | CTS Battery Multi-Compartment Fuel Tank Alarm Box Only | Box only - select probes from accessories table 6 x AA Batteries Red warning LED 85 db sounder | £257.40 ex. VAT | |
| SWS4001 | CTS Battery Multi-Compartment Fuel Tank Alarm Box Only c/w 3 relays | Box only - select probes from accessories table 6 x AA Batteries Red warning LED 85 db sounder 3 x Relays (C,NO,NC @ 230v 8A) | £315.55 ex. VAT | |
| SWS4011 | CTS Battery Multi-Compartment Fuel Tank Alarm Box c/w Single Probe & 3 Relays | Alarm Box c/w Single Probe 6 x AA Batteries Red warning LED 85 db sounder 3 x Relays (C,NO,NC @ 230v 8A) | £373.95 ex. VAT | |
| SWS4012 | CTS Battery Multi-Compartment Fuel Tank Alarm Box c/w Single Probe, Double Probe & 3 Relays | Alarm Box c/w Single & Double Probes 6 x AA Batteries Red warning LED 85 db sounder 3 x Relays (C,NO,NC @ 230v 8A) | £454.90 ex. VAT |
Product Accessories
| Code | Accessory | Price | |
|---|---|---|---|
| SWS1035 | Single Fuel Tank Alarm Probe - For High Level, Low Level or Bund Alerts - High, low or bund c/w 5m cable and 1.5" brass cap For diesel, fuels, light oils and water | £62.95 ex. VAT | |
| SWS1035/2 | Double Fuel Tank Alarm Probe - For high and low level Alerts - High and Low | £118.30 ex. VAT | |
| SWS1038 | High Viscosity Fluid Tank Level Alarm Probe Alerts - High or Low | £120.65 ex. VAT | |
| SWS1038AB | AdBlue Tank Level Alarm Probe Alerts - High or Low | £112.50 ex. VAT | |
| SWS1040 | Water & Chemical Tank Level Alarm Probe Alerts - High or Low | £61.15 ex. VAT | |
| SWS1036 | Plastic Tank Kit - For Single Tank Alarm Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet | £12.35 ex. VAT | |
| SWS1037 | Plastic Tank Kit - For Double Probe Kit for use on a plastic rather than steel tank Steel, flat, round plate 2 x Grommet | £16.25 ex. VAT | |
| SWS1111 | Extra Alarm Cable Per Metre | £7.10 ex. VAT |
Scroll left and right to view table
Can I buy a double probe if I want my tank alarm to monitor a level and bund alert?
No! A double probe has two floats on the same cap that is fitted through a single hole in the tank. As the bund is the tank’s outer skin, it is essentially a separate container to the inner tank and a double probe cannot sit within both.
A double probe is therefore only suitable for monitoring two level alerts e.g. high/low, high/high, low/low. A single tank alarm probe is always required for the bund alert.
Why do I have to buy alarm probes separately?
There are so many variations that someone may want both in terms of the number of alerts the want to monitor, and the fluid they want the tank alarm for. Rather than display a long list of all the configurations, it is easier to offer the box alone and allow you to choose what probes you want from the accessories table.
My office is a little way away from the tank, can I connect your tank alarms to a remote device?
All of our fuel tank level alarms have a 90dB sounder, which is pretty loud. However, if you are still concerned, the CTS mains powered tank alarms are available with a relay, which can connect to the probe input on another alarm. You can position the second alarm up to 100m away from the other, inside your office for example, so that it acts as a remote warning device.
The two alarms will act independently, meaning that if your driver mutes the one at the tank without telling you, the other will continue to sound until you choose to mute it.
Can I use the tank alarms to control turning my pump on/off?
If you opt for a version of our CTS tank alarm with relays, then yes! A typical example of this is where you have a day tank that is filled from a larger back up tank. By using a high and low level probe, the relay signals could automate the pump to run when the tank contents drop to the set low level, and then turn off the pump when the set high level is reached. You could also use it to turn your pump off when it reaches a low level to prevent the pump from running dry.
Can I connect the tank alarm to my building management system?
If you choose the version of our CTS multi channel tank alarm with three relays, then yes! You can use the relay outputs to inform your BMS whenever the set high, low or bund alert scenarios have been activated.
If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.
Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
