60ltrs Per Min (12v / 24v)



ex. VAT


  • D
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • Urea
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

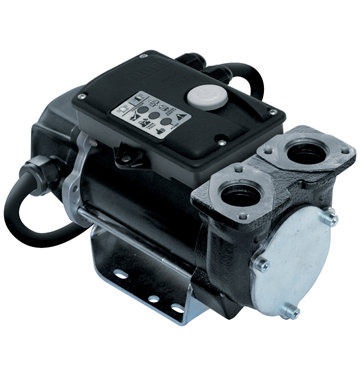

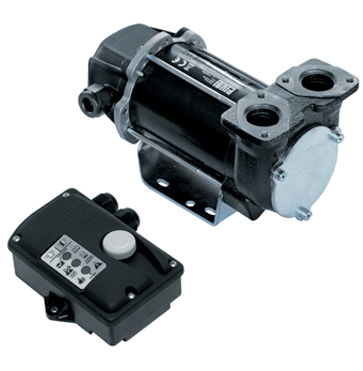

The Piusi Vantage DC portable diesel transfer pump has been designed to satisfy the requirements for the on-board refuelling on plant machinery and equipment. Thanks to their new level of intelligence, these 24v and 12v fuel transfer pumps monitor their own operation and performance and slow the refuelling pump down as it gets hot. This Italian made 12v diesel transfer pump enables high performance, whilst protecting the user from unnecessary costs caused by overheating due to its intelligent monitoring. The Vantage DC diesel fuel transfer pump has an electronic control box which comes mounted as standard on top of the pump, but can be mounted remotely if required. The refuelling pump comes with an LED for monitoring operation status and stored memory events.

This cast iron, rotary vane 24 or 12 volt fuel transfer pump has an incorporated bypass valve and pump attachment support bracket. This Piusi fuel pump is innovative in design and compact in size, and with the optional accessories available (see accessories table), it can be mounted multiple ways.

Features of the Piusi Vantage 24v & 12v Diesel Transfer Pump:

  • BP3000 diesel transfer pump
  • Self priming battery powered fuel transfer pump
  • Sintered steel rotor and acetal resin vanes
  • Cast iron pump body with anti-corrosion paint
  • Incorporated bypass valve
  • Direct current brush motor with permanent magnet stator
  • Flow rate: 60ltr Per Min (depending on model)
  • Protection grade: IP55
  • Operation status LED
  • Local memory
  • Run dry protection
  • 3/4" push fit inlet/outlet (connection accessories required)
  • Available in 12v/24v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

F0033700APiusi BP3000 Vantage 12v Diesel Transfer Pump

Max Flow (lpm) - 60


Ports - 3/4" Push Fit

Duty - Self Controlled

On/Off Switch

£338.35 ex. VAT
F0033801APiusi BP3000 Vantage 24v Diesel Transfer Pump

Max Flow (lpm) - 60


Ports - 3/4" Push Fit

Duty - Self Controlled

On/Off Switch

£346.45 ex. VAT

Product Accessories


Straight Hose Tail Kit (pack of 2)

£14.55 ex. VAT

90 Degree Hose Tail Kit (pack of 1)

£10.75 ex. VAT

90 Degree Flanged Elbow (pack of 1)

£12.45 ex. VAT

Scroll left and right to view table

What makes this model a portable diesel transfer pump?

This refuelling pump is powered by connecting it to a 12 volt or 24 volt battery (often on a vehicle) via crocodile clips. As it does not rely on being plugged into a mains power socket, it can be moved to wherever it is required, making it a mobile solution. Consequently, it is commonly used in off-road applications such as in agriculture, construction, quarrying and mining.

Some of my vehicles have a 12v battery and some have a 24v. Can I use one refuelling pump for both?

Best practice is either to buy a dual voltage battery powered diesel transfer pump such as the Panther DC, or have two pumps on site. You are technically able to use a 12v fuel transfer pump on a 24v battery and vice versa, but you will have to half the duty cycle to 15 minutes on/15 mins off to prevent it from burning it out. It may also have an impact on the life span of your pump.

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
