Piusi Bi Pump 24v & 12v Diesel Transfer Pump

85ltr Per Min (12v / 24v)

From

£489.25

ex. VAT

Fluids

  • D
  • HVO/GTL
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
  • B2
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

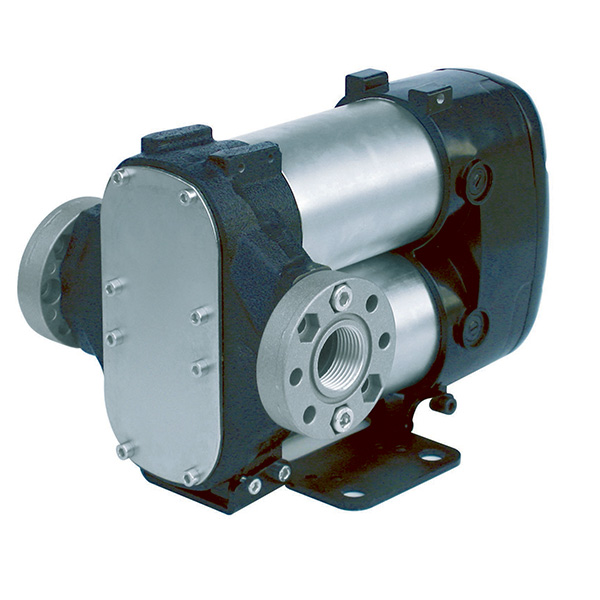

The Piusi Bi-Pump portable diesel transfer pump is powerful and reliable and is designed for high flow diesel transfer and mobile refuelling up to 85lpm. This Italian made 24v and 12v fuel transfer pump is easy to install due to its compact design and sturdy structure. The Bi Pump battery powered diesel dispensing pump is essentially constructed of two motors mounted together, to provide a greater flow rate. Thanks to its refilling speed and its low voltage, this Piusi diesel pump is designed for refuelling large agricultural vehicles and plant equipment in off-road applications where mains power may be unavailable.

This battery powered DC diesel refuelling pump benefits from a sturdy industrialised construction, incorporated bypass valve, IP55 protection rating and an on-off switch. This 12 volt fuel transfer pump offers high performance and durability and is a perfect solution for anyone looking for high flow rate, quality Piusi diesel pump.

Features of the Piusi Bi Pump 24v & 12v Diesel Transfer Pump:

  • Constructed of two motors mounted together
  • Self priming battery powered diesel transfer pump
  • Sintered steel rotors & acetal resin vanes
  • Cast iron pump body
  • Incorporated bypass valve
  • Flow rate: 85ltr Per Min
  • On/off switch
  • Cable & clips 2 and 4 mtr options (on selected models)
  • Direct current brush motors with permanent magnet stators
  • 30min duty cycle
  • 1” BSP flanged inlet/outlet ports
  • Protection grade: IP55
  • Optional carry handle (see accessories table)
  • Available in 12v/24v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
363A0APiusi BiPump 12v Fuel Transfer Pump Only (F00363A0A)

Max Flow (lpm) - 85

12v

Ports - 1" F BSP Flanged

£489.25 ex. VAT
363B0APiusi BiPump 24v Fuel Transfer Pump Only (F00363B0A)

Max Flow (lpm) - 85

24v

Ports - 1" F BSP Flanged

£489.25 ex. VAT

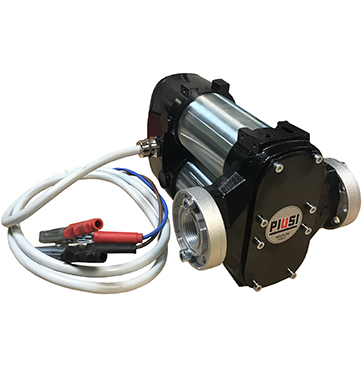

363010Piusi BiPump 12v Fuel Transfer Pump c/w 2m Cable & Clips (F00363010)

Max Flow (lpm) - 85

12v

Ports - 1" F BSP Flanged

£489.80 ex. VAT
363030Piusi BiPump 24v Fuel Transfer Pump c/w 2m Cable & Clips (F00363030)

Max Flow (lpm) - 85

24v

Ports - 1" F BSP Flanged

£489.80 ex. VAT
36302APiusi BiPump 12v Fuel Transfer Pump c/w 4m Cable & Clips (F0036302A)

Max Flow (lpm) - 85

12v

Ports - 1" F BSP Flanged

£509.15 ex. VAT
36304APiusi BiPump 24v Fuel Transfer Pump c/w 4m Cable & Clips (F0036304A)

Max Flow (lpm) - 85

24v

Ports - 1" F BSP Flanged

£509.15 ex. VAT

Product Accessories

CodeAccessoryPrice
R11287000

Piusi Bi-Pump Vanes

Spare part for the Piusi Bi Pump

£41.50 ex. VAT
FRM005

Piusi Pump Carry Plate Kit

Carry plate with handle
Nuts and bolts for pump connection
Reusable heavy duty cable tie for hose

£99.80 ex. VAT
F14200000

Piusi Bi-Pump Carry Handle

Spare part for the Piusi Bi Pump

£65.50 ex. VAT
F14352000

Piusi Bi-Pump Cable & Clips - No Fuse

Spare part for the Piusi Bi Pump

c/w 6m cable and clips and no fuse

Replaces code R10196000

£69.90 ex. VAT
CTS1075

Piusi Bi Pump Service Kit

Buy at the same time as the pump to save time and money in the future!

Kit contains:

Cover Plate O Ring

Gasket

10 x Vanes

£48.90 ex. VAT

Scroll left and right to view table

What makes this model a portable diesel transfer pump?

This refuelling pump is powered by connecting it to a 12 volt or 24 volt battery (often on a vehicle) via crocodile clips. As it does not rely on being plugged into a mains power socket, it can be moved to wherever it is required, making it a mobile solution. Consequently, it is commonly used in off-road applications such as in agriculture, construction, quarrying and mining.

Some of my vehicles have a 12v battery and some have a 24v. Can I use one refuelling pump for both?

Best practice is either to buy a dual voltage battery powered diesel transfer pump such as the Panther DC, or have two pumps on site. You are technically able to use a 12v fuel transfer pump on a 24v battery and vice versa, but you will have to half the duty cycle to 15 minutes on/15 mins off to prevent it from burning it out. It may also have an impact on the life span of your pump.

I need a nozzle and flow meter, which is suitable for use with this diesel fuel transfer pump?

When picking a suitable nozzle and flow meter to go with your pump, you need to make sure they are compatible with the fluid you’re pumping and that it can cope with the flow rate your pump will be working at.

The Bi-pump is a diesel transfer pump with a flow rate of 85lpm.

Suitable NozzlesSuitable Flow Meters
Piusi Self 2000K24
Piusi Self 3000K33
Piusi Auto 120K44
Husky 1GS

Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.

Apply for a credit account today to receive our exclusive benefit for trade customers only.

You may also be interested in

Piusi Panther DC Diesel Transfer Pump
  • D
  • HVO/GTL

Piusi Panther DC 24v & 12v Diesel Transfer Pump

35-70ltrs Per Min (12v / 24v)

from

£239.70 ex. VAT

View product
Piusi BP3000 Portable 12v Diesel Transfer Pump - Vertical Ports
  • D
  • HVO/GTL

Piusi BP3000 Portable Diesel Transfer Pump

50ltr Per Min (12v / 24v)

from

£194.10 ex. VAT

View product
Piusi Bi Pump Portable Diesel Transfer Pump Kit
  • D
  • HVO/GTL

Piusi Bi Pump Portable Diesel Transfer Pump Kit

80ltr Per Min (12v/24V)

from

£634.10 ex. VAT

View product

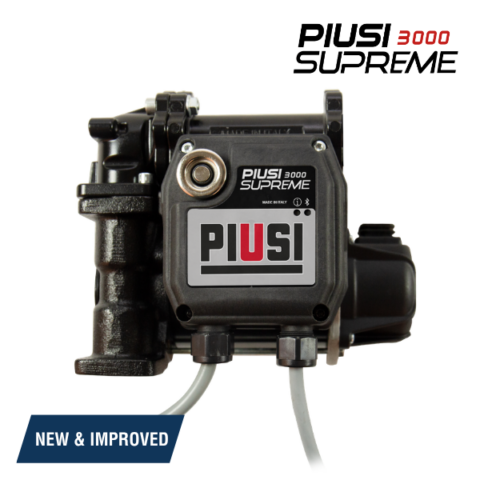

Piusi 3000 Supreme 24v & 12v Smart Diesel Transfer Pump
