50ltr Per Min (12v / 24v)

From

£194.10

ex. VAT

Fluids

  • D
  • HVO/GTL
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

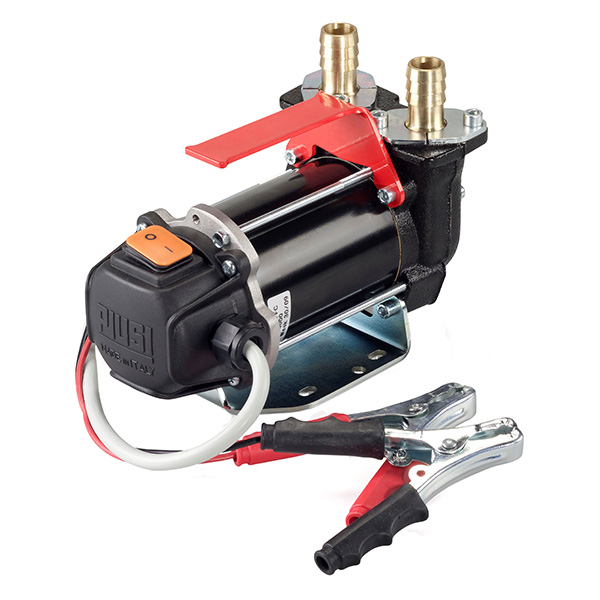

The Piusi Bypass 3000 DC portable fuel transfer pump is a handy dispensing solution, used as a mobile refuelling pump or for general diesel transfer when only battery power is available. Due to their compact size, the BP 3000 24 and 12v diesel transfer pumps are easy to carry and are supplied with a carry handle as standard.This 12 volt fuel transfer pump provides flow rate up to 50l/min, which make it ideal solution for refuelling vehicles and machinery on plant sites. It comes including 2m or 4m cable and clips are supplied allowing easy connection to the vehicle's battery, making this Piusi diesel pump portable and ideal for agricultural and construction site applications.

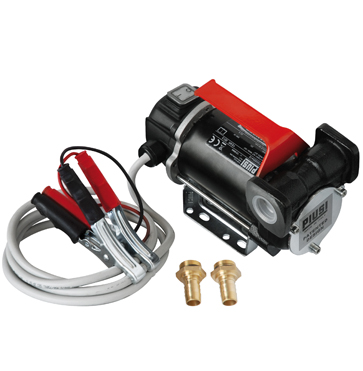

Depending upon your installation, this 24v and 12 volt fuel transfer pump is available with vertical ports or horizontal/inline ports like with the previous Piusi Bypass 2000 pump. There are also both threaded and hose tail inlet/outlet versions for you to choose from, providing flexibility in its fitting.

Features of the Piusi BP3000 Portable Diesel Transfer Pump:

  • Battery powered diesel transfer pumps
  • Self-priming
  • Sintered steel rotor & acetal resin vanes
  • Cast iron pump body with anti-corrosion paint
  • Incorporated bypass valve & NBR lip seal
  • Flow rate: 50ltr Per Min
  • On/off switch
  • Cable and clips (2 and 4 mtr options)
  • Direct current brush motor with permanent magnet stator
  • 30min duty cycle
  • Thermal motor overload protection
  • Hose barb inlet/outlet ports
  • Available with horizontal or vertical ports
  • Carry handle
  • Protection Grade: IP55
  • Available in 12v/24v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
22300CPiusi Bypass 3000 12v Diesel Transfer Pump Carry c/w 2m Cable & Clips (F0022300C)

BP3000 fuel transfer pump

Max Flow (lpm) - 50

12v

Ports - 3/4" Hose Tail

Cable and Clips - 2m

£194.10 ex. VAT
22400CPiusi Bypass 3000 24v Diesel Transfer Pump Carry c/w 2m Cable & Clips (F0022400C)

BP3000 fuel transfer pump

Max Flow (lpm) - 50

24v

Ports - 3/4" Hose Tail

Cable and Clips - 2m

£194.10 ex. VAT
223260Piusi Bypass 3000 12v Diesel Transfer Pump Carry c/w 2m Cable & Clips - Inline (F00223260)

BP3000 fuel transfer pump

Max Flow (lpm) - 50

12v

Ports - 3/4" Horizontal F Thread

Cable and Clips - 2m

£194.10 ex. VAT
224240Piusi Bypass 3000 24v Diesel Transfer Pump Carry c/w 2m Cable & Clips - Inline (F00224240)

BP3000 fuel transfer pump

Max Flow (lpm) - 50

24v

Ports - 3/4" Horizontal F Thread

Cable and Clips - 2m

£194.10 ex. VAT

What makes this model a portable diesel transfer pump?

This refuelling pump is powered by connecting it to a 12 volt or 24 volt battery (often on a vehicle) via crocodile clips. As it does not rely on being plugged into a mains power socket, it can be moved to wherever it is required, making it a mobile solution. Consequently, it is commonly used in off-road applications such as in agriculture, construction, quarrying and mining.

Some of my vehicles have a 12v battery and some have a 24v. Can I use one refuelling pump for both?

Best practice is either to buy a dual voltage battery powered diesel transfer pump such as the Panther DC, or have two pumps on site. You are technically able to use a 12v fuel transfer pump on a 24v battery and vice versa, but you will have to half the duty cycle to 15 minutes on/15 mins off to prevent it from burning it out. It may also have an impact on the life span of your pump.

I need a nozzle and flow meter, which is suitable for use with this diesel fuel transfer pump?

When picking a suitable nozzle and flow meter to go with your pump, you need to make sure they are compatible with the fluid you’re pumping and that it can cope with the flow rate your pump will be working at.

The BP3000 pump is a diesel transfer pump with a flow rate of 50lpm.

Suitable NozzlesSuitable Flow Meters
Piusi Self 2000K24
Piusi Self 3000K33
Piusi Auto 60K44
Husky X Mate

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
