Piusi BP3000 24v & 12v Diesel Transfer Pump
50ltr Per Min (12v / 24v)
Select image to zoom
From
£181.70
ex. VAT
Fluids
- D
- HVO/GTL
- AdBlue
- Air
- Antifreeze
- Any
- Chemical
- Diesel
- Grease
- Jet Fuel
- Kerosene
- Oil
- Petrol
- Rapsoil
- HVO/GTL
- Water
- Windscreen
- B2
The Official UK agent of Piusi pumps & fuel dispensing equipment
About the product
The Bypass 3000 DC portable diesel transfer pump is required when only 12v or 24v power supply is available. This Piusi fuel pump is able to be mounted in various positions and has a range of optional accessories allowing a number of connection configurations (see accessories table). Due to the compact size and flexibility of these 12 volt fuel transfer pumps, they can be used for a number of applications including being installed onboard earth moving machinery and in bowsers or portable tanks for mobile refuelling in the agricultural, construction and off-road markets.
This Italian made 24v and 12v diesel transfer pump offers high performance and has been built to meet stringent OEM quality requirements such as being able to handle excessive vibrations common on off-road machinery.

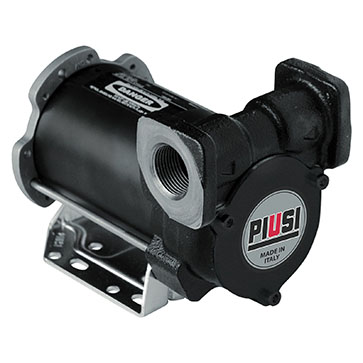

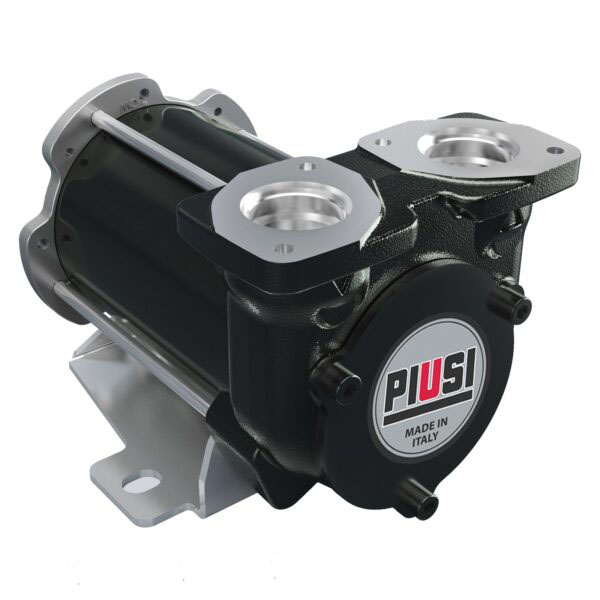

Thanks to its strong DC brush motor, the BP 3000 24v and 12v diesel transfer pumps have pump flow capabilities of up to 50ltr per min, whilst still tolerating any back pressure that may occur. This battery powered diesel dispensing pump is available with vertical push fits ports or horizontal push fit or threaded ports. The horizontal BP3000 has the same flow direction as the traditional Piusi Bypass 2000 refuelling pump, which when looking at the pump head is right to left, whereas the vertical is left to right.
Features of the Piusi BP3000 24v & 12v Diesel Transfer Pump:
- Battery powered fuel transfer pump
- Self-priming
- Sintered steel rotor & acetal resin vanes
- Cast iron pump body with anti-corrosion paint
- Incorporated bypass valve & NBR lip seal
- Flow rate: 50ltr Per Min
- Direct current brush motor with permanent magnet stator
- 30min duty cycle
- Thermal motor overload protection
- Terminal cap and clips available (see accessories table)
- Protection grade: IP55
- Available in 12v/24v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
Product Models and Features
| Code | Model | Description | Price | |
|---|---|---|---|---|
| 342000 | Piusi Bypass 3000 12v Fuel Transfer Pump (F00342000) | Max Flow (lpm) - 50 12v Ports - 3/4" Push Fit Vertical | £181.85 ex. VAT | |
| 347000 | Piusi Bypass 3000 24v Fuel Transfer Pump (F00347000) | Max Flow (lpm) - 50 24v Ports - 3/4" Push Fit Vertical | £181.85 ex. VAT | |
| F00357000 | Piusi Bypass 3000 Horizontal 12v Fuel Transfer Pump Push Fit | Max Flow (lpm) - 50 12v Ports - 3/4" Push Fit Horizontal | £181.70 ex. VAT | |
| F00357500 | Piusi Bypass 3000 Horizontal 12v Fuel Transfer Pump BSP | Max Flow (lpm) - 50 12v Ports - 3/4" F BSP Horizontal | £181.70 ex. VAT | |
| F00358000 | Piusi Bypass 3000 Horizontal 24v Fuel Transfer Pump Push Fit | Max Flow (lpm) - 50 24v Ports - 3/4" Push Fit Horizontal | £181.70 ex. VAT | |
| F00358500 | Piusi Bypass 3000 Horizontal 24v Fuel Transfer Pump BSP | Max Flow (lpm) - 50 24v Ports - 3/4" F BSP Horizontal | £181.70 ex. VAT |
Product Accessories
| Code | Accessory | Price | |
|---|---|---|---|
| F16178000 | 90 Degree Flanged Elbow (pack of 1) Ports - 1" F BSP | £12.85 ex. VAT | |
| F16173000 | 90 Degree Hose Tail Kit (pack of 1) Ports - 3/4" Hosetail | £11.10 ex. VAT | |
| F16172000 | Straight 3/4" Hose Tail Kit (pack of 2) Ports - 3/4" Hosetail | £15.00 ex. VAT | |
| F1677000 | 90 Degree 1" F BSP Elbow (pack of 1) Ports - 1" F BSP | £12.45 ex. VAT | |
| F16799000 | Straight 1" F BSP (pack of 1) Ports - 1" F BSP | £7.50 ex. VAT | |
| F17124000 | Straight 1" Hose Tail Kit (pack of 1) Ports - 1" Hosetail | £14.85 ex. VAT | |
| F17262000 | 90 Degree 1" Hose Tail Kit (pack of 1) Ports - 1" Hosetail | £17.40 ex. VAT | |
| F17313000 | Straight 1" M- BSP (pack of 1) Ports - 1" M BSP | £10.75 ex. VAT | |
| F17314000 | Straight 3/4" F BSP (pack of 1) Ports - 3/4" F BSP | £15.20 ex. VAT | |

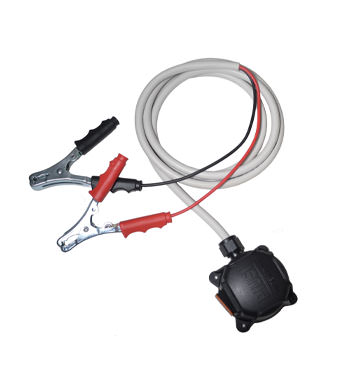

| F16294000 | 24v Terminal Box with Clips 2m Length - 2m | £22.90 ex. VAT | |
| R17289000 | 12v/24v Terminal Box with Clips 2m Length - 2m | £21.25 ex. VAT | |
| R17290000 | 12v/24v Terminal Box with Clips 6m Length - 6m | £36.35 ex. VAT |
Scroll left and right to view table
What makes this model a portable diesel transfer pump?
This refuelling pump is powered by connecting it to a 12 volt or 24 volt battery (often on a vehicle) via crocodile clips. As it does not rely on being plugged into a mains power socket, it can be moved to wherever it is required, making it a mobile solution. Consequently, it is commonly used in off-road applications such as in agriculture, construction, quarrying and mining.
Some of my vehicles have a 12v battery and some have a 24v. Can I use one refuelling pump for both?
Best practice is either to buy a dual voltage battery powered diesel transfer pump such as the Panther DC, or have two pumps on site. You are technically able to use a 12v fuel transfer pump on a 24v battery and vice versa, but you will have to half the duty cycle to 15 minutes on/15 mins off to prevent it from burning it out. It may also have an impact on the life span of your pump.
I need a nozzle and flow meter, which is suitable for use with this diesel fuel transfer pump?
When picking a suitable nozzle and flow meter to go with your pump, you need to make sure they are compatible with the fluid you’re pumping and that it can cope with the flow rate your pump will be working at.
The BP3000 pump is a diesel transfer pump with a flow rate of 50lpm.
| Suitable Nozzles | Suitable Flow Meters |
|---|---|
| Piusi Self 2000 | K24 |
| Piusi Self 3000 | K33 |
| Piusi Auto 60 | K44 |
| Husky X Mate |
If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.
Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
