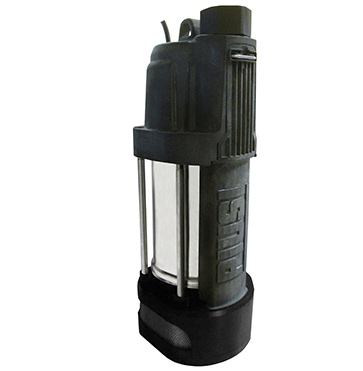

Piusi Shark Submersible Electric AdBlue™ Pump

35ltr Per Min (230v)

From

£526.25

ex. VAT

Fluids

  • AdBlue
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

The Piusi Shark (SQUALO35) AdBlue pump is the first submersible pump specifically designed for dispensing AdBlue™ from an AdBlue™ tank, rather than for water transfer. Firstly, it's 35lpm flow rate is the proven speed in the market for refilling vehicles and off road machinery with AdBlue, due to the smaller tank size than diesel. Also, thanks to its integrated bypass valve, this submersible AdBlue pump can be used with a nozzle without the added cost of buying a pressure relief valve.

Reduced overall dimensions guarantee easy installation of this compact electric AdBlue™ pump, ideal for when there isn't room for a pump in the tank cabinet. The low 30mm suction level of the Shark offers almost complete emptying of the tank, exceeding that of alternative submersible AdBlue Pump models, and has a strainer to remove any debris that may have entered and sank to the bottom of the tank to prevent it from entering the pump or the vehicle SCR system. Thanks to it being a regenerative turbine pump, it benefits from pressure building capabilities ten or more times that of a centrifugal pump with the same impeller diameter and speed. The Piusi Shark also has a built in pressure regulator that optimises flow rate to reduce unnecessary energy consumption, saving the user on energy costs.

This Piusi pump comes with an 11 minute timer, to prevent the pump from dry running damage in the event of the user forgetting to turn it off when they have finished dispensing.

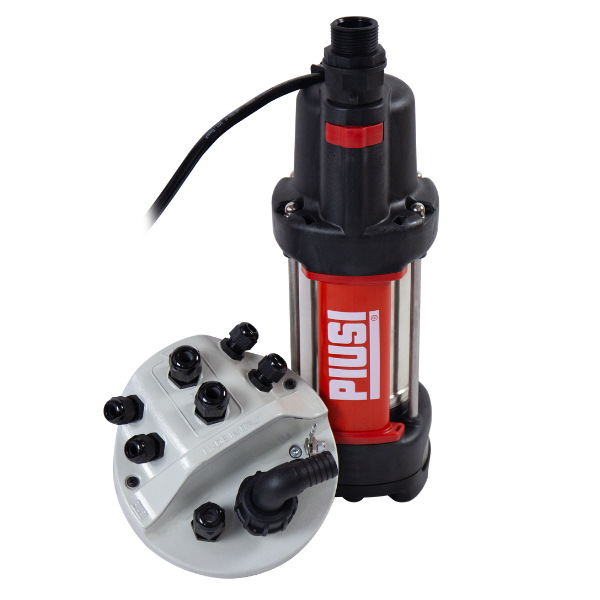

The Piusi Shark submersible pump comes with a SUBLOCK junction cap, which provides a safe way of connecting the pump to both the tank and its delivery hose, power cable and any level indicator or flow meter installed. The Shark SUBLOCK version comes with a stainless steel hanging wire for suspending the pump.

Features of the Piusi Shark Submersible Electric AdBlue™ Pump:

  • Piusi Submersible AdBlue™ Pump
  • c/w 5m power cable
  • Integrated bypass valve for nozzle use
  • Low 30mm suction level
  • NBR shaft seal
  • Integrated pressure regulator & check valve
  • Mesh strainer to filter debris
  • Version with 11 minute timer
  • Flow rate: 35ltr Per Min
  • Max. immersion: 5000mm
  • Max. fluid temp: +40°C
  • Continuous duty
  • Available in 230v
  • Reduced dimensions: 140mm diameter x 360mm height
  • SUBLOCK junction cap
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
F0020602APiusi Shark (SQUALO35) Submersible AdBlue™ Pump c/w Timer

Max Flow (lpm) - 35

230v

50Hz

Max pressure (bar) – 2

Ports – 1” F BSP

Suction level - 30mm

11 minute timer

£526.25 ex. VAT
F00206A00Shark Submersible Pump c/w timer & SUBLOCK

SUBLOCK junction cap & stainless steel hanging wire

35lpm flow rate

Max pressure 2 bar 29 psi

230 volts / 50hz

Max fluid temperature 40 degrees centigrade

Ports 1" F BSP

£670.75 ex. VAT

Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.

Apply for a credit account today to receive our exclusive benefit for trade customers only.
