Piusi Self Service MC AdBlue™ Management System

Dispenser (Local/Onsite Data)

Price

£2,319.00

ex. VAT

Credit account

Finance / Pay Monthly Available

Fluids

  • AdBlue
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

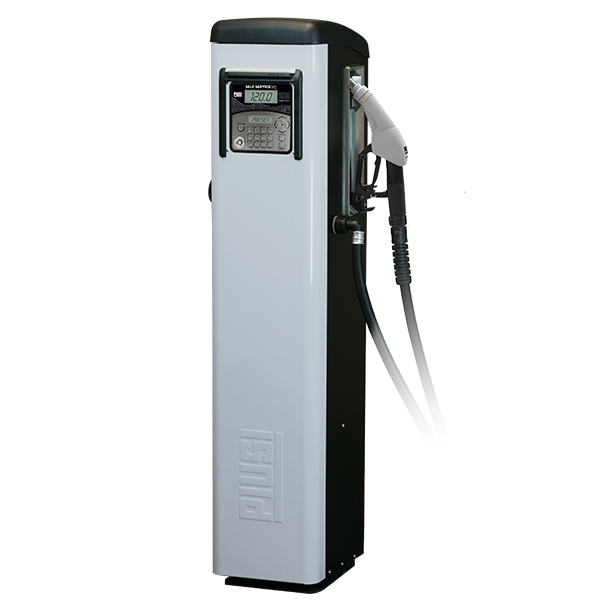

The Piusi Self Service MC AdBlue™ Management System is a sturdy, freestanding AdBlue™ dispenser complete with fluid monitoring capabilities for dispensing from an AdBlue storage tank™. Like the industry known Piusi fuel management systems, the Self Service for AdBlue™ records transaction data such as user, date, time and quantity dispensed for the last 255 transactions, providing the manager with important information as to where their AdBlue is being used. To enhance security, the system limits access to the integrated AdBlue™ pump to authorised users via pin code or electronic key (if purchased), which prevents just anyone from picking up the nozzle and dispensing AdBlue into their vehicle.

This AdBlue™ dispenser comes with 6m delivery hose, pulse meter and SB325 automatic nozzle with a breakaway spout mechanism for cheap and easy repair if the vehicle drives off with the nozzle in the fill point. Also included is a pump start/stop nozzle holster and pre-set dispense feature, and has the ability to be connected to an optional AdBlue™ Ocio tank level gauge to cut off the pump when the fluid reaches a certain low level.

The Piusi Self Service MC AdBlue™ Management System is a simple, easy to use and cost-effective solution for when the user requires the full pumping equipment and would benefit from transaction data and security. Whereas these stand-alone management systems show transaction data on the unit’s screen; there is an optional Self Service Management software package that permits the exporting of data to a local PC for analysis.

Features of the Piusi Self Service MC AdBlue™ Management System:

  • Integrated Piusi AdBlue™ pump
  • Controls up to 250 users
  • Limits pump access to users via pin code or key (if purchased)
  • Records transaction data such as user, date, time & QTY
  • Facility to record vehicle reg number & odometer readings
  • Local memory of 255 transactions
  • K24 pulse meter
  • SB325 nozzle c/w breakaway spout mechanism
  • Nozzle holster with pump start/stop
  • 6m delivery hose
  • 70µ particle filter
  • Optional software to download data to a Windows PC
  • Available in 230v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
F0074400BPiusi Self Service MC AdBlue™ Management System

Max Flow (lpm) - 34

230v

250 users

Duty Cycle (min) - 20

Pulse Meter - K24

SB325 automatic nozzle

6m delivery hose

70µ filter

Replaces code: 744000

£2,319.00 ex. VAT

Product Accessories

CodeAccessoryPrice
CTS6002

Piusi Self Service Management AGILIS Download Software - Key Reader c/w Yellow Keys

Software Type: Download
Data Transfer: Key Reader
User Keys: 10
Manager Keys:1

£706.90 ex. VAT
CTS6004

Piusi Self Service Management AGILIS USB Software - Key Reader c/w Yellow Keys

Software Type: USB
Data Transfer: Key Reader
User Keys: 10
Manager Keys: 1

£809.80 ex. VAT
R12496

Piusi Fuel Management System Manager Key

Single Key

For Piusi Fuel Management Systems

£78.20 ex. VAT
R15904000

Piusi Fuel Management System Yellow User Keys

10 Pack

For Yellow Key Piusi Fuel Management Systems

£195.00 ex. VAT

Scroll left and right to view table

I want to view this information at my computer rather than at the unit, is this possible?

Yes. By purchasing the Piusi Self Service Management 2018, all transaction data can be exported to a computer and viewed and filtered by user, date, vehicle or dispenser for more convenient analysis. Some customers who are on a budget opt to just view the transaction data at the unit, which is why we offer the software as an optional extra rather than as standard.

You can view or select the Piusi fuel management software either in the accessories table or by clicking here.

How do I set up new users on the  Piusi Self Service MC AdBlue™ fuel management system?

Depending upon how you have chosen to allow user access, users are set up with either a pin code or an electronic key. How to set up a user via either of these options are covered in our video here.

Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.

Apply for a credit account today to receive our exclusive benefit for trade customers only.
