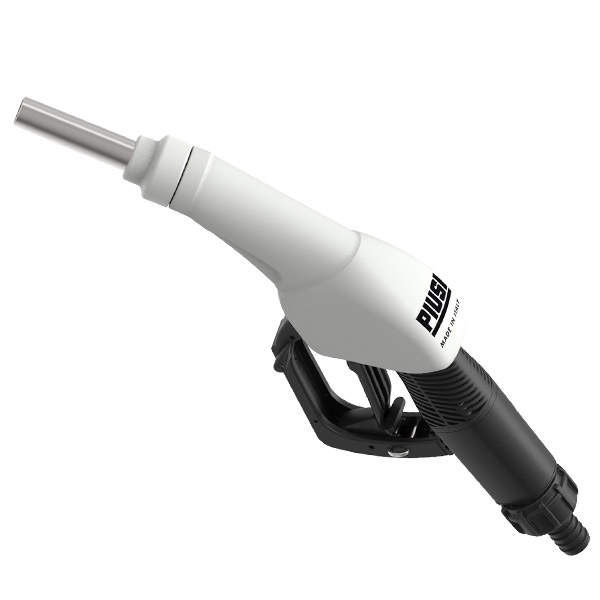

Piusi SB325_X Automatic AdBlue Magnetic Nozzle

45ltrs Per Min (Auto)

From

£272.30

ex. VAT

Fluids

  • Water
  • Chemical
  • AdBlue
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

The Piusi SB325_X AdBlue™ Magnetic Nozzle is designed for use in conjunction with the ELAFIX 40 adaptor in order to prevent the costly miss-filling of AdBlue into the diesel tank. This magnetic spout nozzle will only allow fluid to pass once it has been magnetically opened by an AdBlue magnetic adaptor fitted within the vehicle filler neck. Therefore, by using this AdBlue nozzle you cannot physically dispense into the wrong tank, as the diesel fill point will not contain a magnet.

The miss-filling of AdBlue™ into the diesel tank is a common issue and will be costly for the vehicle owner to put right. AdBlue™ is not compatible with many materials and miss-filling can corrode the pipework and components of a fuel system – resulting in thousands of pounds of damage, as well as having to pay for the removal of AdBlue™ from the tank.

This AdBlue dispensing nozzle also benefits from a breakaway spout mechanism. This means that if the vehicle accidently drives away with the nozzle still positioned in the vehicle's fill point, the spout will detach from the nozzle. This means that damage will be limited to the spout only which can be replaced as a spare part, and the AdBlue pump system connected to the storage tank will not be pulled away.

Constructed of plastic but with a sturdy, stainless steel spout, this Piusi nozzle is a lightweight, cost effective alternative to the completely stainless steel automatic AdBlue™ nozzles on the market. Like these more expensive models, it still reliably shuts off dispensing when the AdBlue tank becomes full to prevent any overspill.

Please note: Only for use with AdBlue pumps - not suitable for gravity fed installations.

Features of the Piusi SB325_X Automatic AdBlue Magnetic Nozzle:

  • Automatic AdBlue™ nozzle
  • Magnetic spout for preventing miss-filling
  • Breakaway spout mechanism
  • Maximum flow rate: 45ltr Per Min
  • Suitable for urea, water and chemicals
  • Supplied with 3/4" plastic hose barb
  • Fluid viscosity up to 6cSt
  • Removable 3 position stay open latch
  • Replacement spouts available (see accessories)
  • Must be used with AdBlue magnetic adaptor
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
F00618M40Piusi SB325_X Automatic AdBlue Magnetic Nozzle c/w Breakaway Spout

Max Flow Rate (lpm) - 45

Max Pressure (Bar) - 3.5

Spout OD (mm) - 19

Inlet - 3/4" Plastic Hose Barb

Magnetic Miss-Filling Spout c/w Breakaway Mechanism

AdBlue, Water and Chemicals

£272.30 ex. VAT
F00618M20Piusi SB325_X Automatic AdBlue Magnetic Nozzle c/w Breakaway Spout & Nozzle Adaptor

Max Flow Rate (lpm) - 45

Max Pressure (Bar) - 3.5

Spout OD (mm) - 19

Inlet - 3/4" Plastic Hose Barb

Magnetic Miss-Filling Spout c/w Breakaway Mechanism

Nozzle Magnetic Adaptor - For when filling without vehicle adaptor (e.g. need to dispense into a drum or container)

AdBlue, Water and Chemicals

£300.00 ex. VAT

Product Accessories

CodeAccessoryPrice
R19172000

Magnetic Miss-Filling Replacement Spout

Prevents the miss-filling of AdBlue into a diesel tank by only releasing fluid into a vehicle tank that has a magnetic adaptor.

£72.80 ex. VAT
F15165000

Elafix 40 AdBlue™ Magnetic Tank Adaptor

19mm OD

Compatible to ISO22241-3

Working Temp: -20°C to +85°C

Weight: 65g

For use with AdBlue magnetic nozzles

£45.45 ex. VAT
F18400000

Nozzle Override Magnetic Adaptor

Fits over a magnetic spout to allow it to dispense when not in contact with a vehicle tank magnetic adaptor e.g. when filling a smaller container or if you have some vehicles with a tank adaptor and some without.

£28.75 ex. VAT
F19174000

Nozzle Magnetic Adaptor + Spout

Kit combination of the magnetic miss-filling spout and the nozzle magnetic adaptor.

£129.10 ex. VAT

Scroll left and right to view table

How do I know if my vehicle has the magnetic tank adaptor fitted?

Newly manufactured vehicles which use AdBlue™ should have had a AdBlue™ tank magnet incorporated into the fill point at the manufacturing stage. To check whether you already have an magnetic adaptor in your vehicle, hold something magnetic next to the AdBlue™ filler neck and if see you feel a magnetic pull. If there isn’t a magnetic pull, you will need to fit a Elafix AdBlue™ magnetic tank adaptor to reap the benefits of the Piusi SB325 magnetic AdBlue™ nozzle.

See accessories table.

I have some vehicles with magnet and some without, can I still use the magnetic AdBlue nozzle?

You have two options here. Our recommendation is that you buy the AdBlue tank magnetic adaptors for all remaining vehicles. Alternatively, you can buy the nozzle override adaptor which fits over your magnetic AdBlue nozzle spout to fool it into thinking it is in contact with a magnetic vehicle adaptor. However, this option puts you at risk of costly miss-filling, not just the vehicles without the AdBlue magnetic adaptor, but also the ones with it if you accidentally leave the override adaptor on when refilling those too.

See accessories table for both options.

Can I just use a diesel nozzle to refill my vehicle with AdBlue?

No! You should strictly only ever use equipment designed for use with AdBlue, as these will be constructed of compatible materials such as stainless steel and polypropylene. AdBlue will cause many materials to corrode e.g. cast iron, which most fuel nozzles are manufactured of. This will not only cause your nozzle to fail but will also contaminate the AdBlue which must be kept completely pure to ensure there is no damage to the vehicle’s SCR system.

Can I use this nozzle with a gravity hose kit?

Only manual nozzles can be used within gravity fed installations, as the back pressure required for an automatic nozzle to open is unlikely to ever be achieved under gravity conditions. For this reason, gravity hose kits are always supplied with manual nozzles.

Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.

Apply for a credit account today to receive our exclusive benefit for trade customers only.
