Piusi Automatic Diesel Hose Reel

3/4" or 1" (Max 15m)

From

£393.40

ex. VAT

Fluids

  • D
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • Urea
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

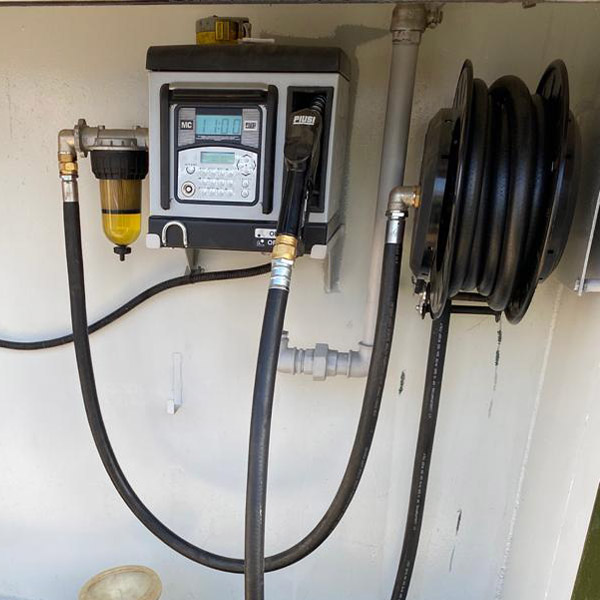

The Piusi Automatic Diesel Hose Reel has been designed specifically to work with low pressure diesel pumping systems such as vehicle refuelling applications. Popular with bunded fuel tank manufacturers for mounting directly onto the storage tank, this retractable diesel fuel hose reel can be supplied complete with a range of hose lengths, or as a bare reel should the user wish to add their own choice of hose. These diesel hose reels benefit from a sturdy steel structure for use in heavy duty environments, adjustable arm brackets for easy positioning and a protected latch mechanism to prevent injury to the hands when operating the reel. The bare version of the Piusi retractable diesel hose reel comes with a protection spring, hose stop and hose clamp for the easy connection of the user's choice of hose.

Features of the Piusi Automatic Diesel Hose Reel:

  • Automatic spring rewind fuel hose reel
  • Sturdy steel structure
  • Reduced pressure loss through hydraulic sizing

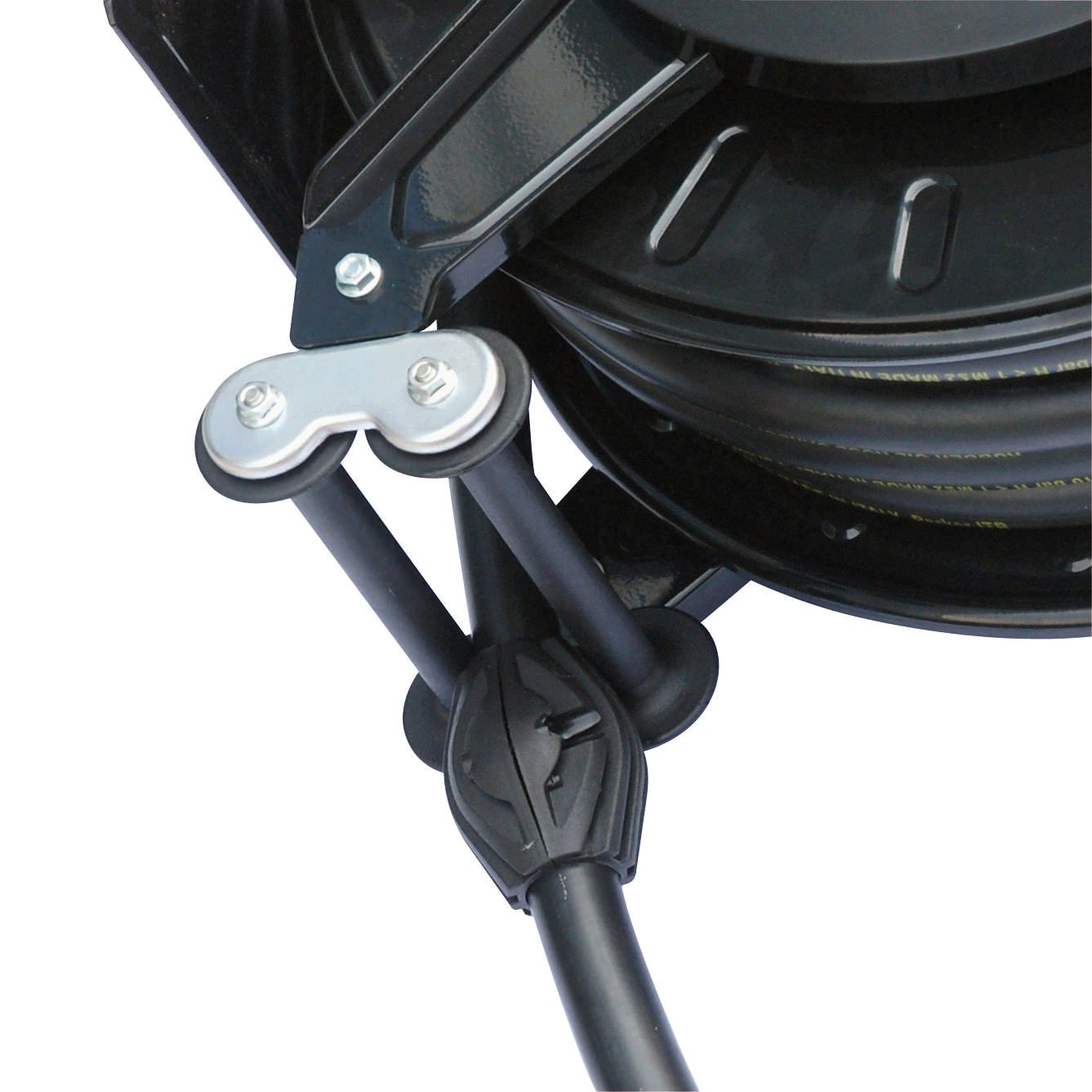

  • Protected latch mechanism which prevents injury
  • Adjustable arm brackets for easy positioning
  • Optional fixed or rotating support plate

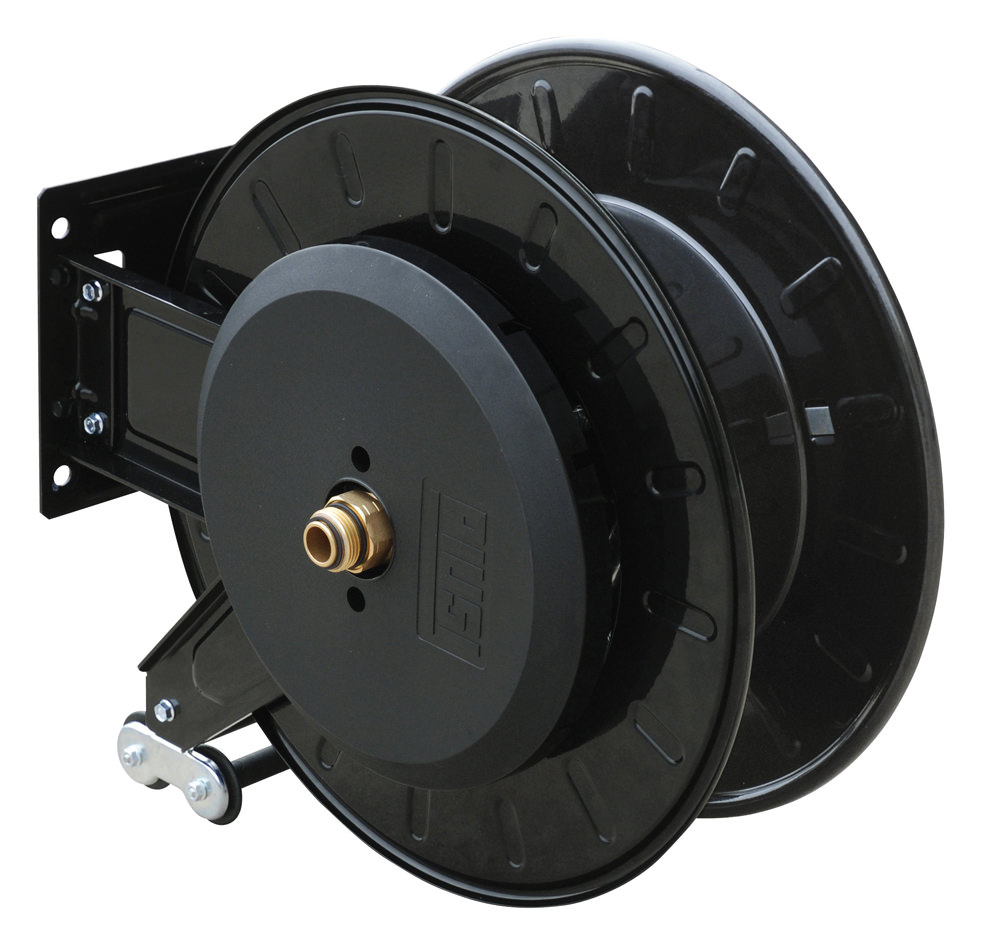

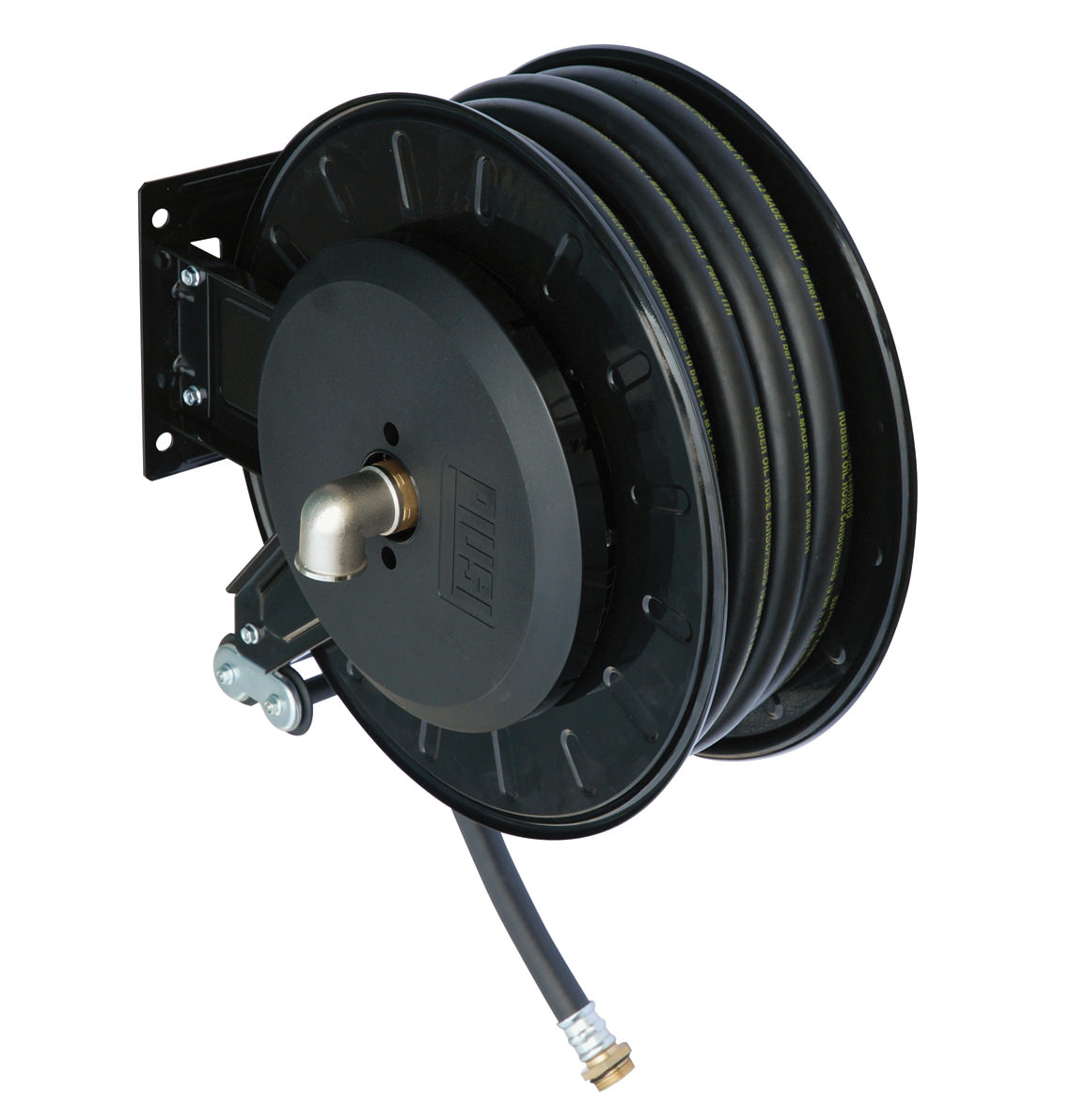

  • Can be supplied with or without hose
  • 3/4" and 1" versions available
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
F00750080Piusi 3⁄4" Empty Diesel Hose Reel - Max 9.5m SMALL

Max Length (m) - 9.5

Max Pressure (Bar) - 10

Inlet - 1" M BSPP Swivel

Oulet - 3⁄4" Hose Barb

Pressure Loss (Bar) - 0.15 @ 60 lpm

£393.40 ex. VAT
F00750000Piusi 3⁄4" Empty DieselHose Reel - Max 14m

Max Length (m) - 14

Max Pressure (Bar) - 10

Inlet - 1" M BSPP Swivel

Oulet - 3⁄4" Hose Barb

Pressure Loss (Bar) - 0.15 @ 60 lpm

£519.70 ex. VAT
F00750010Piusi 1" Empty Diesel Hose Reel - Max 10m

Max Length (m) - 10

Max Pressure (Bar) - 10

Inlet - 1" M BSPP Swivel

Oulet - 1" Hose Barb

Pressure Loss (Bar) - 0.2 @ 80 lpm

£543.35 ex. VAT
F00750180Piusi 1" Empty Diesel Hose Reel - Max 15m XL

Max Length (m) - 15

Max Pressure (Bar) - 15

Inlet - 1" F BSPP Swivel

Oulet - 1" M Hose Barb

Pressure Loss (Bar) - 0.4 @ 80 lpm

£817.50 ex. VAT
F00750090Piusi 3⁄4" Diesel Hose Reel c/w 8m Hose SMALL

Length (m) - 8

Max Pressure (Bar) - 10

Inlet - 1" F BSPP Swivel

Outlet - 1" M BSPP

Pressure Loss (Bar) - 0.6 @ 60 lpm

£545.90 ex. VAT
F00750040Piusi 3⁄4" Diesel Hose Reel c/w 10m Hose

Length (m) - 10

Max Pressure (Bar) - 10

Inlet - 1" F BSPP Swivel

Outlet - 1" M BSPP

Pressure Loss (Bar) - 0.7 @ 60 lpm

£603.40 ex. VAT
F00750100Piusi 3/4" Diesel Hose Reel c/w 14m Hose

Length (m) - 14

Max Pressure (Bar) - 10

Inlet - 1" F BSPP Swivel

Outlet - 1" M BSPP

Pressure Loss (Bar) - 0.8 @ 60lpm

£637.40 ex. VAT
F00750020Piusi 1" Diesel Hose Reel c/w 8m Hose

Length (m) - 8

Max Pressure (Bar) - 10

Inlet - 1" F BSPP Swivel

Outlet - 1" M BSPP

Pressure Loss (Bar) - 0.6 @ 80 lpm

£647.45 ex. VAT
F00750030Piusi 1" Diesel Hose Reel c/w 10m Hose

Length (m) - 10

Max Pressure (Bar) - 10

Inlet - 1" F BSPP Swivel

Outlet - 1" M BSPP

Pressure Loss (Bar) - 0.7 @ 80 lpm

£709.10 ex. VAT

Product Accessories

CodeAccessoryPrice
F16279000

Rotating Support Plate Large

£57.70 ex. VAT
F16298000

Fixed Support Plate Large

£21.75 ex. VAT
F17317000

Rotating Support Plate Small

£51.15 ex. VAT
F17316000

Fixed Support Plate Small

£30.50 ex. VAT
OAB2270

1m Whip Hose 1" M X 1" M BSP

£34.00 ex. VAT
OAB2271

1.5m Whip Hose 1" M X 1" M BSP

£35.45 ex. VAT
OAB2272

2m Whip Hose 1" M X 1" M BSP

£38.55 ex. VAT

Scroll left and right to view table

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
