Piusi Cube 70 B.SMART IdentiTank Fuel Management System

The B.SMART IdentiTank is the latest innovation from Italian manufacturer Piusi, bringing total control, additional security and improved fuel consumption traceability to your refuelling operations.

This Piusi IdentiTank fuel management system comes with a pre-configured Cube 70 B.SMART dispensing system, Auto 60 nozzle with integrated RFID reader, and wireless controller to manage the connection between the nozzle and dispenser. Available with 10 x tamper-proof RFID tags for fitting onto the fill point of authorised vehicles or tanks, and 10 x B.SMART user licenses, or as a standalone dispenser for when buying multiple units.

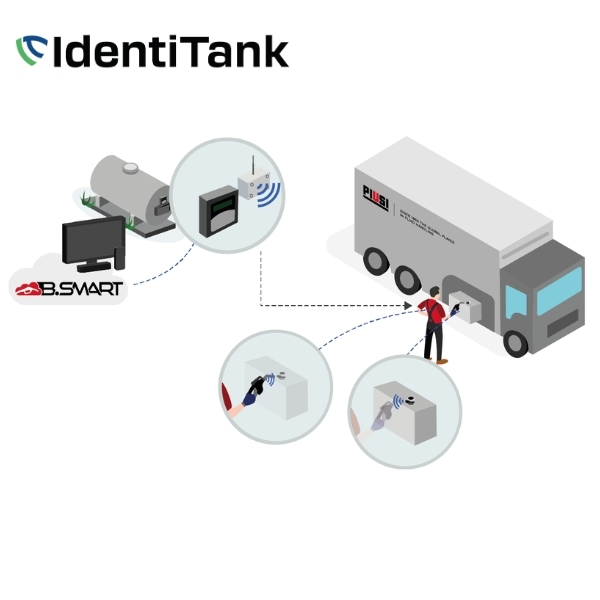

Thanks to the integrated RFID reader on the nozzle spout, the system will only allow fuel to be dispensed once matched against the electronic tag fitted to the vehicle or tank fill point. It combines RFID technology and wireless connectivity to ensure that fuel is only dispensed into authorised tanks when these two devices’ pair up… so no tag, means no fuel will be dispensed!

With all the advantages of the B.SMART fuel management software, you’ll benefit from remote and real-time data, no hosting or subscription fees, and a user-friendly web portal accessible via PC, tablet or smartphone anytime, anywhere. For further information on the Piusi B.SMART features, download the full Piusi B.SMART brochure (PDF).

Why Choose IdentiTank?

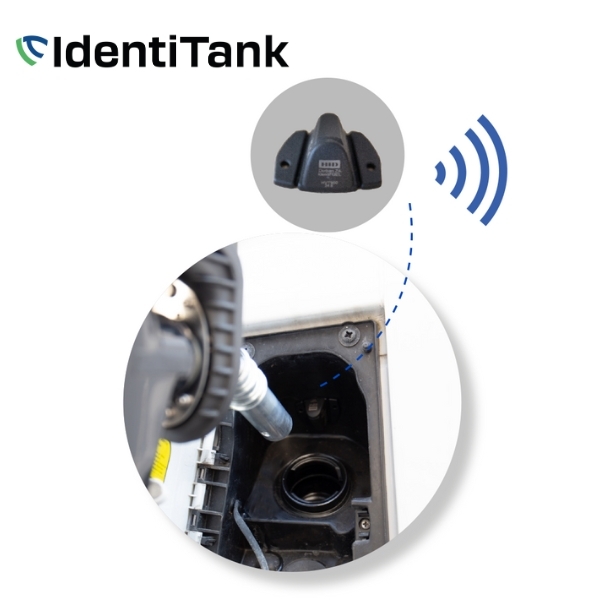

• RFID authentication: Dispensing system will look for a valid RFID tag before it allows the system to dispense. Fuel will not be released, unless the nozzle reader and fill point are matched and within a 50mm distance of one another.

• Automatic flow shut-off: If the RFID signal is lost during refuelling, dispensing will stop until the connection is re-established – preventing fuel loss due to accidents or misuse.

• Real-time data logging 24/7: All operations are recorded and transmitted to the B.SMART system in real time for continuous, detailed monitoring.

• Advanced wireless connectivity: The wireless controller remains effective even in remote areas, harsh environments or over long distances.

• Long-life batteries with replacement alerts: Nozzle readers are powered by long-lasting batteries with automatic replacement notifications.

Please note: IdentiTank is a standalone system with incorporated technology which cannot be retrofitted to existing B.SMART fuel management systems.

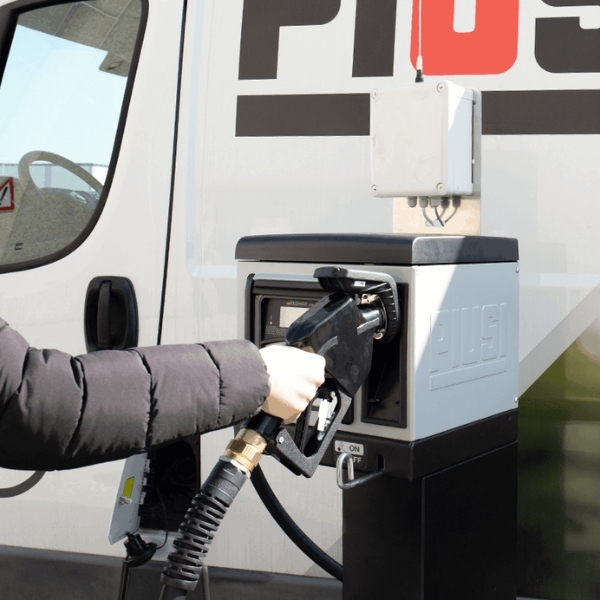

• Cube 70 fuel dispenser with IdentiTank technology
• Version c/w 10 x B.SMART user licences and 10 x IdentiTank tags
• Wireless controller for connection to the management system

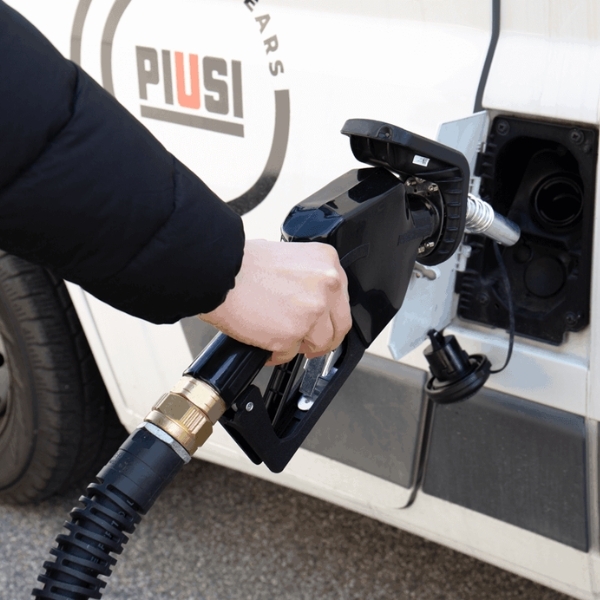

• Automatic nozzle with integrated RFID reader
• Durable, tamper-proof RFID fill-point tags
• Additional RFID tags available in packs of 10 or 50
• 70lpm flow rate
• 230v
• K600/3 pulse meter
• 4m x 1” delivery hose
• Records data e.g. driver, date, vehicle & QTY
• Ability to record vehicle mileage when filling
• Ability to pre-set dispensing volume or set to fill
• Online portal for monitoring real time fuel use
• No ongoing hosting fees to use the software
• Single portal for multiple pumps on multiple sites
• Ability to export reports into .pdf or .xlsx files
