Piusi Clear Captor Particle Fuel Tank Filter

100 Ltrs Per Min (5 micron)

Price

£149.15

ex. VAT

Fluids

  • D
  • HVO/GTL
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • HVO/GTL
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

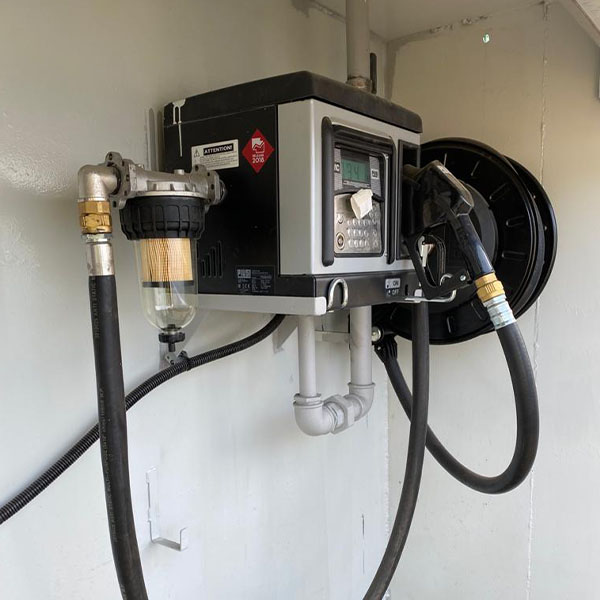

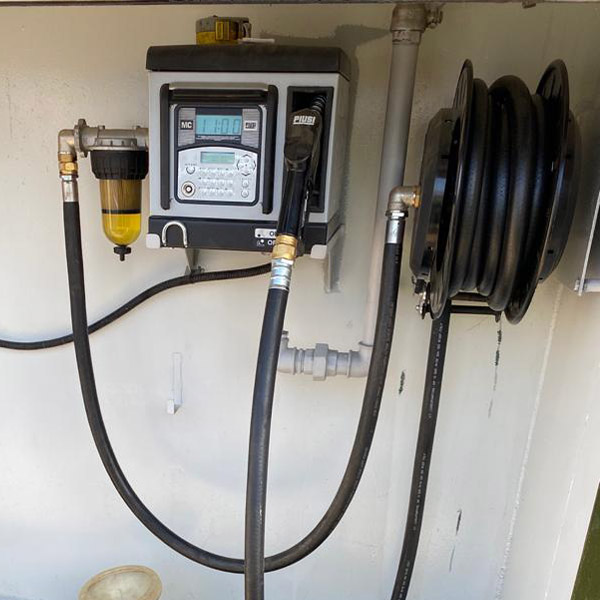

The Piusi Clear Captor Fuel Tank Filter can be installed into the pumping system either at the suction or delivery end. This fuel filter ensures that the diesel that is dispensed is particle and debris free. Thanks to its clear bowl, this diesel filter allows the visual inspection of the fuel being dispensed and the identification of any impurities present. With a maximum flow rate of 100litres per minute, these fuel storage tank filters for diesel are designed for use on higher flow rate systems. When the user notices a reduction in flow rate, the removable cartridge inside these fuel filters may need to be replaced.

Features of the Piusi Clear Captor Particle Fuel Tank Filter:

  • 5 micron bowl filter
  • Maximum flow rate of 100litres Per Min
  • 1” F BSP Flanged Inlet/Outlet
  • 1" M BSP Filter Thread
  • Suitable for diesel and raps oil
  • Includes 1 x filter head and 2 x filter element
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
F00611B00Piusi Clear Captor Particle Fuel Filter Complete

5 Micron Diesel Particle Filter

Paper Filter

Application - Pump

Max Flow Rate (lpm) - 100

Pressure (bar) - 5

Inlet/Outlet - 1" F Flanged BSP

Filter Thread - 1" M BSP

Diesel and Raps Oil

£149.15 ex. VAT

Product Accessories

CodeAccessoryPrice
F00611030A

Piusi Clear Captor Fuel Particle Only 5µ Element only – 015856000

£32.35 ex. VAT
F15744000

Replacement Head

£48.40 ex. VAT

Scroll left and right to view table

Why do I need a fuel tank filter?

Once stored fuel can easily become contaminated by numerous factors such as dirt, small metal particles and other abrasive components. These particles in your fuel can cause damage for your pump as well as serious engine problems and result in costly downtime, repairs and inconvenience. This fuel tank filter will help prevent all of these from happening because it filters the dispensed fuel and separates the particles. As part of the fuel filtration, you should also consider water contamination, and Piusi Clear Captor water tank filter can be the perfect solution for this common issue.

How long should a fuel filter last before I need to replace the element?

Unfortunately, there is no exact answer to this question as it all depends on the level of contamination in your fuel. The dirtier the fuel in your tank, the quicker the filter will get full. We advise that you always have a spare filter element on site so that you experience no downtime if your filter is full and blocks.

If you’re experiencing your filter elements blocking a lot quicker than usual, then this may be down to changes in the bio content of diesel. Read our article to find out more.

Why is it important to know your pump flow rate when choosing your filter?

If your pump is too fast for the maximum flow rate of the filter, the filter will keep blocking leaving you unable to dispense. This may also result in the pump running in partial bypass, causing premature wear on the pump vanes and windings. In extreme cases where you have say a 50lpm filter being used with a 150lpm pump, it may even blow the filter element inside rendering it useless. Therefore, if your pump is 70lpm, your filter must be able to cope with atleast that.

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
