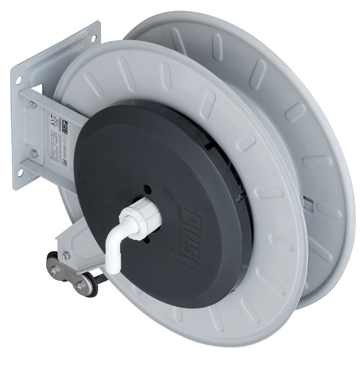

Piusi Automatic AdBlue™ Hose Reel

3/4" (Max 15m)

From

£459.95

ex. VAT

Fluids

  • AB
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • Urea
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

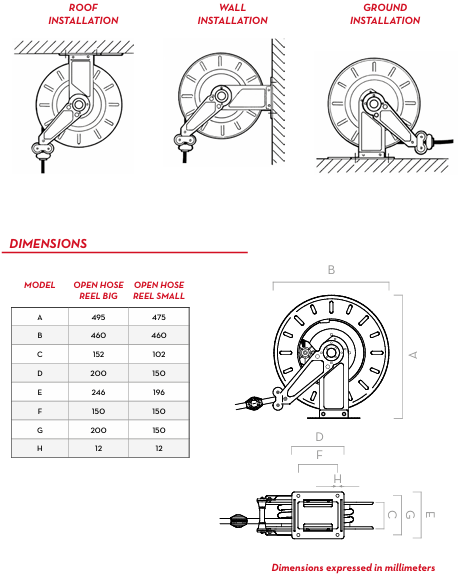

The Piusi AdBlue™ Hose Reel through careful design has been constructed to be able to limit pressure loss and facilitate use, even for high flow AdBlue pump applications. These retractable hose reels can be supplied either as a bare hose reel or complete with hose, and are designed for mounting onto a wall or inside an AdBlue™ storage tank. The AdBlue hose reel without hose will include a 3/4” BSP M swivel inlet connection, a hose tail fitting and a hose fastening clamp for easy connection.

Features of the Piusi Automatic AdBlue™ Hose Reel:

  • Automatic spring rewind AdBlue™ hose reel
  • Reduced pressure loss hydraulic sizing
  • Protected latch mechanism which prevents injury
  • Adjustable arm brackets for easy positioning
  • Hose stop for locking at the chosen length
  • Optional fixed or rotating support plate
  • Can be supplied with or without hose
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
F00750060Piusi Empty AdBlue™ Hose Reel SMALL

Max Length (m) - 9.5

Max Pressure (Bar) - 10

Inlet - 3⁄4" Swivel Hose Barb

Outlet - 3⁄4" Hose Barb

Pressure Loss - 0.1 bar @ 35 lpm

£459.95 ex. VAT

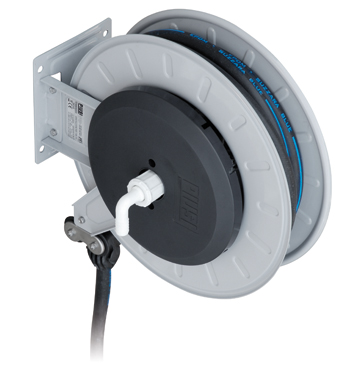

F00750070Piusi AdBlue™ Hose Reel c/w 8m hose SMALL

Length (m) - 8

Max Pressure (Bar) - 10

Inlet - 3⁄4" Swivel Hose Barb

Outlet - 3⁄4" Open Barb

Pressure Loss - 0.4 bar @ 35 lpm

£608.75 ex. VAT
F00750110Piusi AdBlue™ Hose Reel c/w 15m hose

Length (m) - 15

Max Pressure (Bar) - 10

Inlet - 3⁄4" Swivel Hose Barb

Outlet - 3⁄4" Open Barb

Pressure Loss - 0.4 bar @ 35 lpm

£742.95 ex. VAT

Product Accessories

CodeAccessoryPrice
F16279000

Rotating Support Plate Large

£57.70 ex. VAT
F16298000

Fixed Support Plate Large

£21.75 ex. VAT
F17317000

Rotating Support Plate Small

£51.15 ex. VAT
F17316000

Fixed Support Plate Small

£30.50 ex. VAT

Scroll left and right to view table

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
