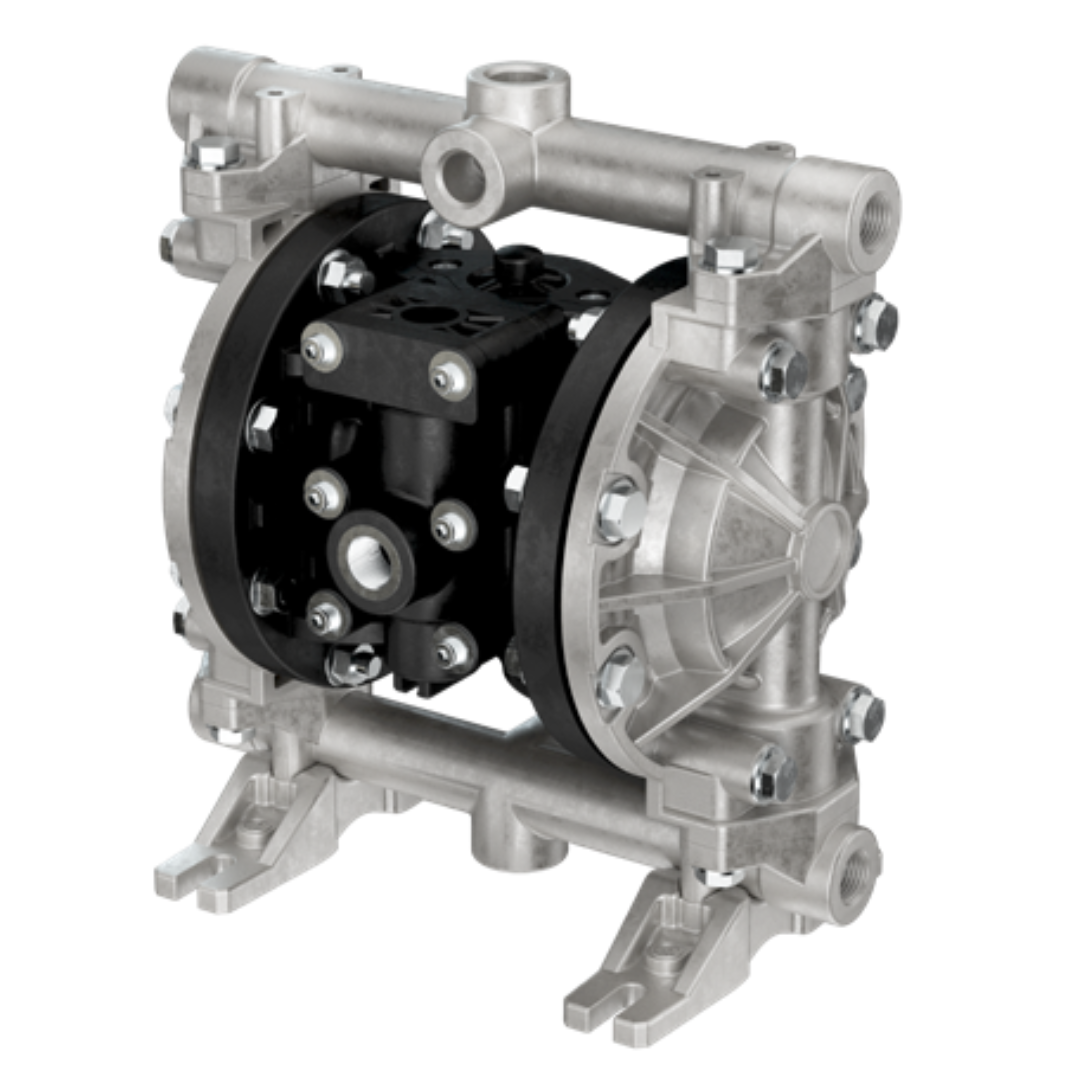

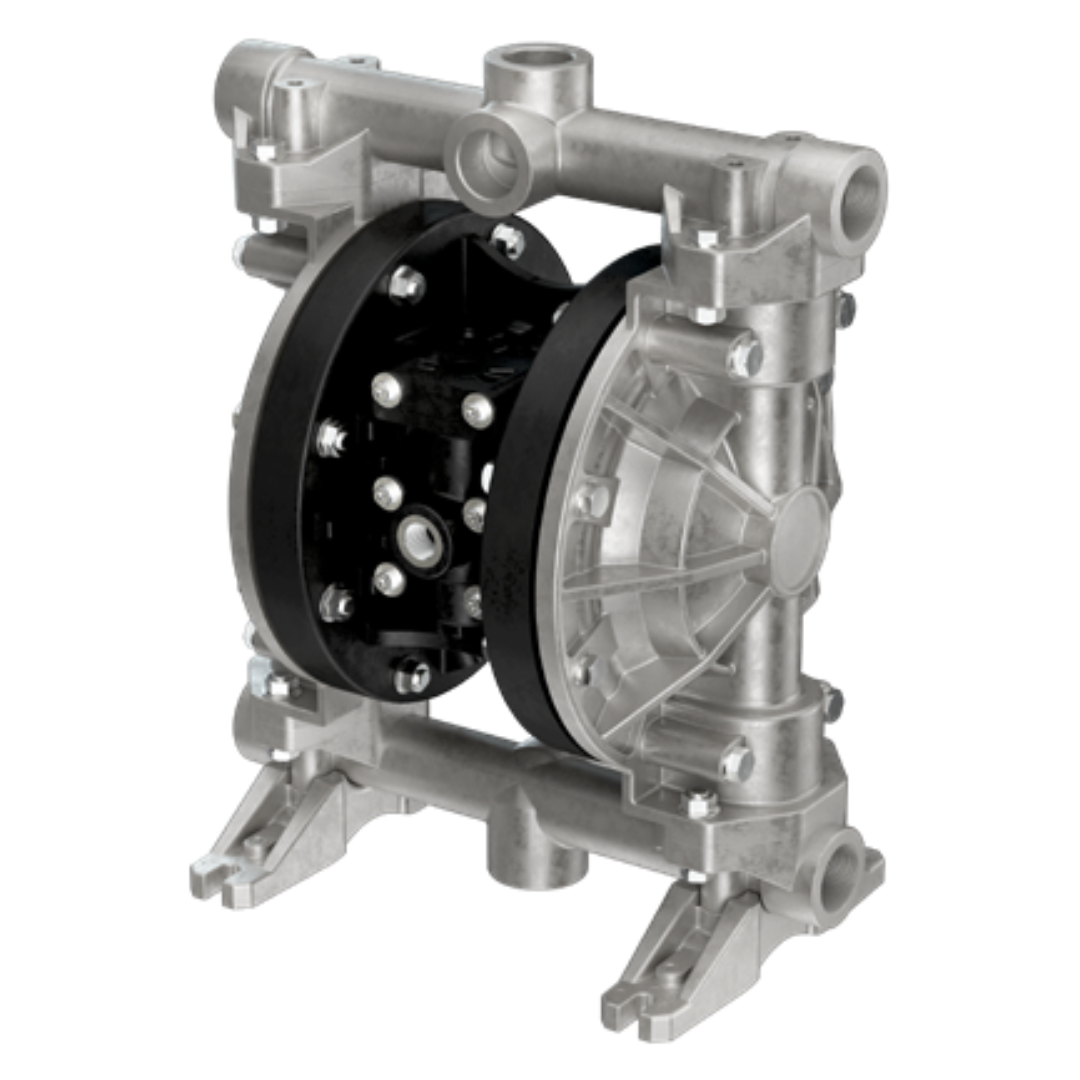

Piusi Pro One Oil Air Operated Diaphragm Pump

The Piusi Pro One Oil AODD Pump has been designed to transfer oil, kerosene and diesel with high viscosities by using a diaphragm. The new air distributor has been designed to allow for quick disassembly with direct external access, facilitating maintenance operations, and is designed to offer maximum efficiency, durability, and ease of use.

These oil pumps have no mains connector because they are powered by air and are often used in garages and workshops where air lines are already set up. The flow rate ranges from 50 l/min to 160l/min for bigger installations.

These Piusi Pro One Oil Transfer Pumps have been made suitable for severe duty conditions or operations taking place in potentially explosive atmospheres.

It guarantees high resistance, reliability, and notable longevity. Equipped with a stall-prevention system with an unbalanced valve, the pump optimises air consumption, increasing operational efficiency and significantly reducing noise levels.

The Pro One AODD range is perfectly suited for heavy and prolonged applications, reducing maintenance needs and operating costs.

• Single Membrane Air Operated Diaphragm Pump
• Self-Priming
• Aluminium Body
• NBR Diaphragm & Balls
• 70m Max Head
• 7 Bar Max Air Supply Pressure
• 4mm Solid Handling
• ATEX to Zone 2
• Four versions available depending on flow rate and port size
• 6m max suction length
