Piusi High Flow Viscomat Gear Oil Transfer Pump

70ltrs Per Min (230v)

Price

£1,787.40

ex. VAT

Fluids

  • O
  • AdBlue
  • Air
  • Antifreeze
  • Any
  • Chemical
  • Diesel
  • Grease
  • Jet Fuel
  • Kerosene
  • Oil
  • Petrol
  • Rapsoil
  • Urea
  • Water
  • Windscreen
Piusi - The UK Agent

The Official UK agent of Piusi pumps & fuel dispensing equipment

About the product

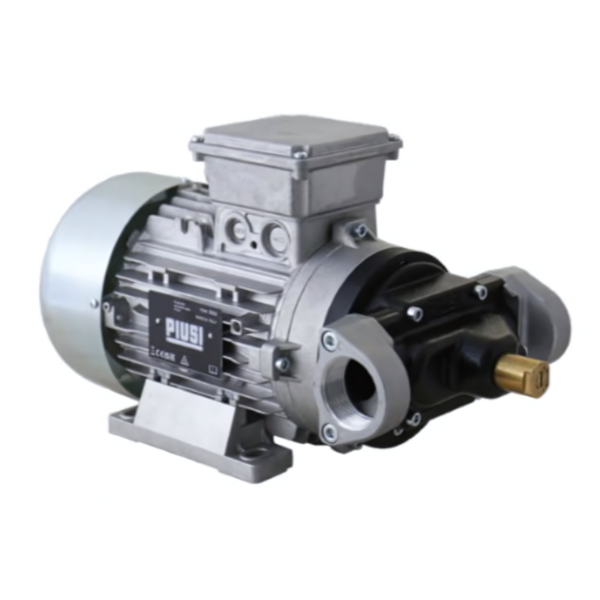

The Piusi High Flow Viscomat Gear electric oil transfer pump is designed to provide excellent performance when transferring hydraulic oil and lubricants. This Piusi Viscomat pump is reliable and versatile, suiting many different oil transfer applications, including those where it is needed to transfer high viscosity oil up to 2000 cSt with a high flow rate. Suitable for continuous running in open flow situations, this Piusi oil transfer pump has a high suction capacity with pressure up to 9 bar. The High Flow Viscomat oil transfer pump guarantees a steady flow rate and consistency in the flow dispensed.

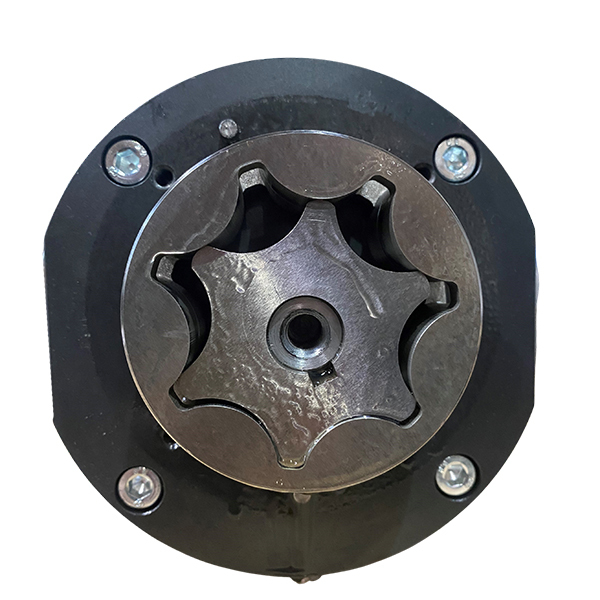

The gears of this Viscomat oil transfer pump come with a special chamber entry that guides for low flow restriction. Due to the heavy weight of the pump (32kg), the Visomat gear pump is supplied with lifting lungs that offer an easy mauver into position.

As the official Piusi pump supplier, we recommend that before installing the oil transfer pump, you will need to consider selecting the right suction hose depending on the viscosity of the fluid you are transferring. Based on our technical and product experience, we advise that to select 1” suction hose for fluids up to 100cSt, 1 ½” for fluid up to 500cSt and 2” suction hose for fluids over 500cSt. This reduces the pump overload and will allow it to provide excellent performance.

Features of the Piusi High Flow Viscomat Gear Oil Transfer Pump:

  • High flow electric gear pump for hydraulic oil & lubricant transfer
  • Gears with special chamber entry guides for low flow restriction
  • Suitable for continuous running in open flow situations
  • Adjustable pressure of 3-9 bar
  • Maximum fluid temperature of +80°C
  • Viscosity from 50-2000cSt (check oil viscosity at lowest temperature in use)
  • Protection grade: IP55
  • 32kg pump with lifting lugs
  • 400v version available on request
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Product Models and Features

CodeModelDescriptionPrice
F00334801P2021High Flow Viscomat Gear 70M

Max flow (lpm) - 70

230v

50Hz

Pressure: 3-9 (bar); 43.5-131 (psi)

Ports – 1” F BSP

Viscosity – 50-2000 cSt

*Please note: Specs shown in the table are for oil with a viscosity of 90cSt

£1,787.40 ex. VAT

If you are buying for resale and have volume enquiries, contact our sales team for pricing by clicking on the below product enquiry button or calling us on +44 (0) 121 351 4445.

Alternatively, visit our trade customers page where you can download account forms to apply for a credit account and receive exclusive trade benefits if approved including trade pricing.
