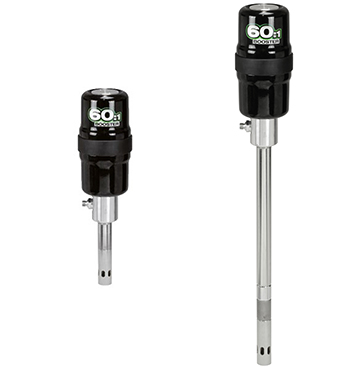

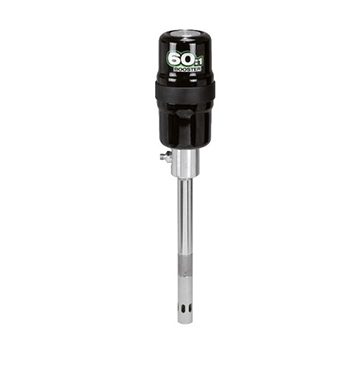

Piusi 60:1 Air Operated Grease Pump
12.5/50/180kg (60:1 ratio)
From
£398.45
ex. VAT
Fluids
- Grease
The Official UK agent of Piusi pumps & fuel dispensing equipment
About the product
New from Piusi is the P60:1 Booster Air Operated Grease Pump range; part of their Italian manufactured offering to the lubrication market. These air operated grease pumps have been specially designed to ensure high performance and durability in heavy duty garage and workshop environments.
The P60:1 Booster is ideal transferring grease and high viscosity oils at high pressures, over both short and long distances, thanks to the high compression ratio. There are three models of this air powered grease transfer pump available depending upon which length of suction pipe is required, to correspond with your drum size.
- 470mm suction pipe for 12.5kg drum
- 730mm suction pipe for 50kg drum
- 940mm suction pipe for 180kg drum
Please see accessories table for optional extras for this Piusi pump, including drum cover and follower plates.
Features of the Piusi 60:1 Air Operated Grease Pump:
- 60:1 ratio air operated grease pump
- Long working life due to quality mechanical parts
- Pneumatic exchanger & three-stage air discharge system
- Enhanced efficiency & reduced air consumption
- Polyurethene internal seals
- Low operating noise of 77dB
- Available in different lengths depending on drum size
- Recommended type of grease: NLGI0 - NLG1
- Maximum pumpable viscosity: NLG2
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
Product Models and Features
| Code | Model | Description | Price | |
|---|---|---|---|---|
| F00216050 | Piusi P60:1 Air Grease Pump 470mm | Ratio – 60:1 Suction Pipe Length – 470mm Max Air Supply (bar) – 8 Air Consumption (lpm) – 130-160 Air Inlet – ¼” F BSP Outlet – ¼” M BSP For Drum Size – 12.5kg For Grease | £398.45 ex. VAT | |
| F00216060 | Piusi P60:1 Air Grease Pump 730mm | Ratio – 60:1 Suction Pipe Length – 730mm Max Air Supply (bar) – 8 Air Consumption (lpm) – 130-160 Air Inlet – ¼” F BSP Outlet – ¼” M BSP For Drum Size – 50kg For Grease | £418.20 ex. VAT | |
| F00216070 | Piusi P60:1 Air Grease Pump 940mm | Ratio – 60:1 Suction Pipe Length – 940mm Max Air Supply (bar) – 8 Air Consumption (lpm) – 130-160 Air Inlet – ¼” F BSP Outlet – ¼” M BSP For Drum Size – 180kg For Grease | £437.65 ex. VAT |
Product Accessories
| Code | Accessory | Price | |
|---|---|---|---|
| F20792000 | Drum Cover - 12.5kg Ø 285mm | £46.35 ex. VAT | |
| F20598000 | Drum Cover - 50kg Ø 385mm | £56.20 ex. VAT | |
| F20606000 | Drum Cover - 180kg Ø 610mm | £102.35 ex. VAT | |
| F20793000 | Follower Plate - 12.5kg Ø 270mm | £46.45 ex. VAT | |
| F20599000 | Follower Plate - 50kg Ø 370mm | £48.70 ex. VAT | |
| F20607000 | Follower Plate - 180kg Ø 690mm | £106.90 ex. VAT | |
| F20595000 | Drum Trolley 12.5-30kg Wheels – 2 For Drum Size – 12.5-30kg For Any Fluid | £102.35 ex. VAT | |
| F19965000 | Drum Trolley 30-60kg Wheels – 4 For Drum Size – 30-60kg For Any Fluid | £215.55 ex. VAT | |
| F19966000 | Drum Trolley 180-200kg Wheels – 4 For Drum Size – 180-200kg For Any Fluid | £432.95 ex. VAT | |
| F20605000 | Piusi Grease Control Nozzle 4 Jaw Coupler Spout Type – Rigid Inlet – ¼” F BSP Max Pressure (bar) – 470 For Grease | £48.35 ex. VAT | |
| F20600000 | ¼” Piusi Grease Delivery Hose 2m Hose Length – 2m Inlet – ¼” M BSP Outlet – ¼” F BSP Max Pressure (bar) – 450 For Grease | £28.30 ex. VAT | |
| F20601000 | ¼” Piusi Grease Delivery Hose 4m | £47.40 ex. VAT | |
| F20602000 | ¼” Piusi Grease Delivery Hose 6m | £62.00 ex. VAT |
Scroll left and right to view table
Resale and volume discounts are available. Send us a trade enquiry to receive your quotation today.
Apply for a credit account today to receive our exclusive benefit for trade customers only.
