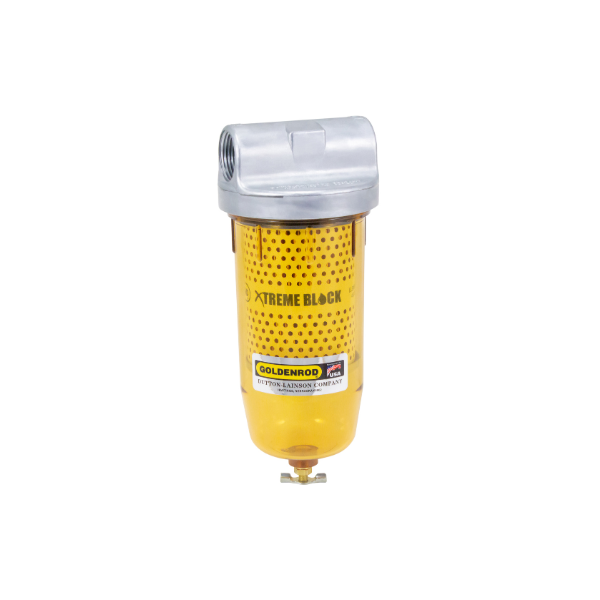

GoldenRod 492 Xtreme Block Water/Particle Fuel Tank Filter

The GoldenRod 492 Xtreme Block Fuel Tank Filter is designed to protect fuel storage and dispensing systems across agricultural, construction, industrial and commercial environments. It provides effective filtration to remove fine particles and contaminants before fuel reaches equipment or vehicles, helping to maintain fuel quality and system reliability.

The Xtreme Block Fuel Tank Filter is designed to remove contaminants down to 2 microns and absorb water from diesel, petrol, ethanol blends and biodiesel (up to B20) and HVO/GTL. Just like other GoldenRod filters, it features a durable see-through polymer bowl for quick visual checks, a heavy-duty zinc die-cast top cap and an easy-drain sediment valve.

Fuel enters through the inlet port, passes through the internal paper filter element where contaminants are captured, and exits through the outlet port as clean, filtered fuel. Filter elements or canisters should be replaced when fuel flow becomes restricted to ensure continued performance.

All GoldenRod filter components including the replacement GoldenRod 492-5 Fuel Filter Element are available individually as replacements (see accessories table).

• 2 micron particle and water fuel filter
• Advanced water detection material between two layers of Microglass
• Maximum flow rate of 94litres Per Min
• For gravity & pump systems
• 1” BSP inlet/outlet
• Heavy duty zinc die-cast head with excellent seal
• Suitable for diesel, petrol, ethanol blends, bio up to B20, HVO and GTL
• Includes 1 x head, 1 x bowl, 1 x filter element
